Dwyer Instruments 626 Industrial Pressure Transmitters

Series 626 Industrial Pressure Transmitters

Order #: 626

Mfg #: 626

Questions about availability or need help? Contact Us:

(800) 633-0561 sales@transcat.com

$189.30

Qty

Dwyer Instruments 626 Industrial Pressure Transmitters

Series 626 Industrial Pressure Transmitters

Order #: 626

Mfg #: 626

Configurable!

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$189.30

Ships Free Over $100

Choose Your Options:

Range

0-100 psig

0-200 psig

Housing Type

General Purpose SS - NEMA 4X IP66

Conduit Box Housing - NEMA 4X IP66 + $53.05

Fittings

1/4" Male NPT

Cables and Connectors

3 Ft. Cable

1/2" Female NPT Conduit Connection

Electrical Output

4-20 mA, 2-wire

Qty

Tariff fees or manufacture imposed surcharges may be applicable.

Product Overview

Product Highlights

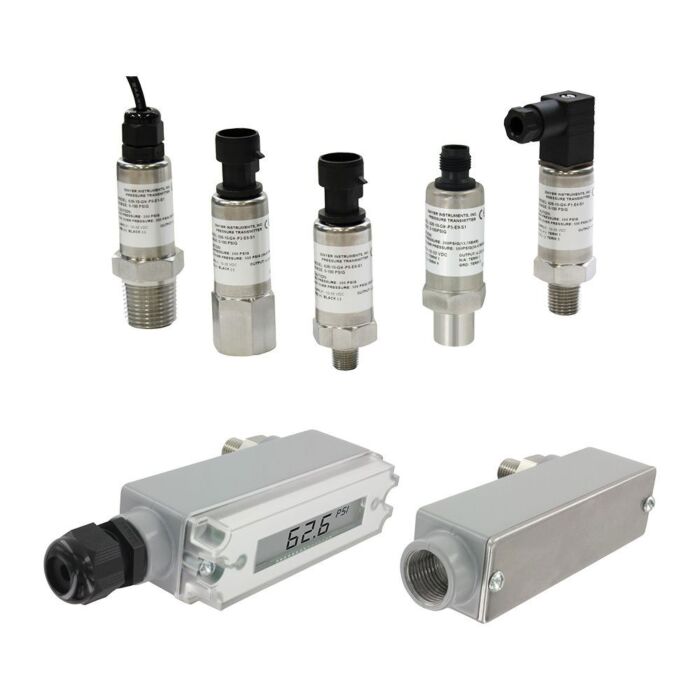

The Series 626 Industrial Pressure Transmitters possess a highly precise 0.25% full scale accuracy piezo-resistive sensor contained in a compact, rugged, NEMA 4X (IP66) stainless steel general purpose housing or cast aluminum conduit housing. The Series 628 Industrial Pressure Transmitters are ideal for OEMs with 1% full scale accuracy sensors. The corrosion resistant 316L stainless steel wetted parts allow the Series 626 and 628 transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals. The Series 626 and 628 are available in absolute and gage pressure ranges with a variety of optional outputs, process connections and electrical terminations to allow you to select the right transmitter for your application.

Features

Compressors
Pumping Systems
Irrigation System Pressure
Industrial Process Monitoring
Hydraulic

Specifications

Service	Compatible gases and liquids
Wetted Materials	Type 316L SS
Accuracy	626: 0.25% FS; 626: 0.20% RSS; 628: 1.0% FS; 628: 0.5% RSS; 626 Absolute Ranges: 0.5% FS; 626 absolute ranges: 0.30% RSS. (Includes linearity, hysteresis, and repeatability.)
Temperature Limit	0 to 200°F (-18 to 93°C)
Compensated Temperature Range	0 to 175°F (-18 to 79°C)
Thermal Effect	±0.02% FS/°F. (includes zero and span)
Pressure Limits	See table on catalog page
Power Requirements	10-30 VDC (for 4-20 mA, 0-5, 1-5, 1-6 VDC outputs); 13-30 VDC (for 0-10, 2-10 VDC outputs); 5 VDC ±0.5 VDC (for 0.5-4.5 VDC ratio-metric output); 10-35 VDC (for 4-20 mA with -CB option); 13-35 VDC or isolated 16-33 VAC (for selectable output with -CB option)
Output Signal	4 to 20 mA, 0 to 5 VDC, 1 to 5 VDC, 0 to 10 VDC, or 0.5 to 4.5 VDC; or selectable 0 to 5, 1 to 5, 0 to 10, 2 to 10 VDC for -CB option
Response Time	300 ms
Loop Resistance	0-1000 Ω max. R max = 50 (Vps-10) Ω (4-20 mA output); 5 KΩ min (0-5, 1-5, 0.5-4.5 VDC output); 15 KΩ min (1-6, 0-10, 2-10 VDC output)
Current Consumption	38 mA maximum (for 4 to 20 mA output); 10 mA maximum (for 0 to 5, 1 to 5, 1 to 6, 0 to 10, 2 to 10, 0.5 to 4.5 VDC output); 140 mA maximum (for all 626/628/629-CH with optional LED)
Electrical Connections	Model dependent options: Wire end, Hirschman DIN EN 175801-803-C, Packard, Deutsch, M12
Process Connection	Model dependent options: 1/8", 1/4", 1/2" male NPT; 1/4" female NPT; 1/4" male or female BSPT; 1/8" or 1/4" male BSPP ISO 1179; 1/4" female SAE valve depressor
Enclosure Rating	NEMA 4X (IP66)
Mounting Orientation	Mount in any position
Weight	10 oz (283 g)
Compliance	CE, Optional: NSF/ANSI 61/372, ANSI/UL 218, ANSI/UL 508, NEPA 20
