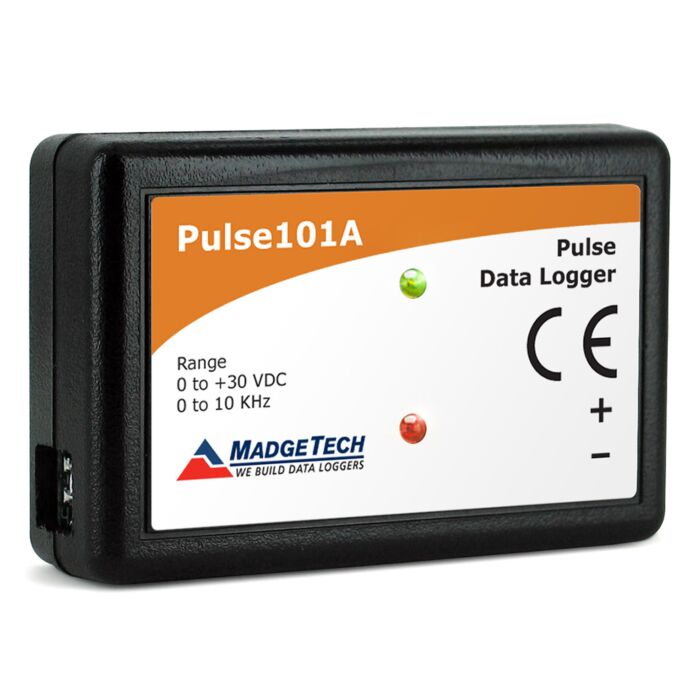

MadgeTech PULSE101A
Order #: PULSE101A
Mfg #: 901312-00
Product Highlights
Pulse Counter/Totalizer and Recorder with a 10 year battery life
The Pulse101A is a compact, pulse data logger. Includes declaration of conformance.
- Compact Size
- 10-Year Battery Life
- Memory Capacity of 1,000,000+ Readings
The Pulse101A is a compact, pulse data logger designed to accurately measure and record events occurring within a specified time frame. This device is compatible with many switches, meters and transducers.
The Pulse101A has a maximum pulse rate of 10 KHz to capture rapid events for a wide range of applications. With a 10-year battery life and the ability to store up to 1,047,552 readings, the Pulse101A can be deployed for long-term assignments.
The Pulse101A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
| Memory | 1,047,552 readings |
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Baud Rate | 115,200 |
| LED Indicators | Red and Green |
| Push-Button Start | Yes |
| Battery Life | 10 years typical, dependent upon frequency and duty cycle |
| Material | Polycarbonate |
| Dimensions | 1.4 in x 2.1 in x 0.6 in (35 mm x 54 mm x 15 mm) |
| Operating Environment | -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing |
| Required Interface Package | IFC200 |
| Approvals | CE |
| Maximum Pulse Rate | 10 KHz |
| Pulse Input Range | 0 to 30 VDC continuous |
| Pulse Input Low | <0.4 V |
| Pulse Input High | >2.8 V |
| Pulse Input Impedance | 60000 Ω |
| Pulse Internal Weak Pull-up | <60 ?A |
