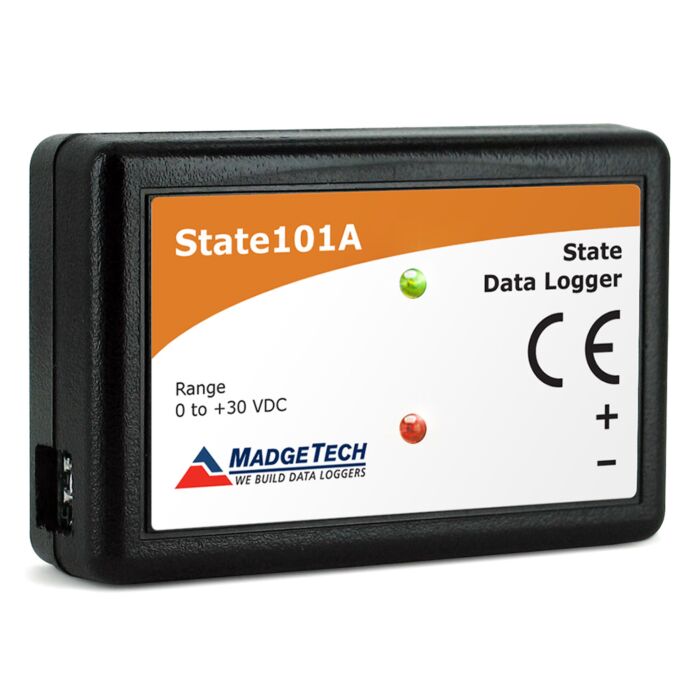

MadgeTech STATE101A
Order #: STATE101A
Mfg #: 901571-00
Product Highlights
State Recorder with a 10 year battery life
The State101A is a compact, state data logger. Includes declaration of conformance.
- Compact Size
- 10-Year Battery Life
- Memory Capacity of 800,000+ Readings/li>
The State101A is a compact, state data logger that monitors and records the occurrence, duration and status of predetermined events by measuring changes in voltage.
With a user-programmable reading rate of up to 4 Hz, 10-year battery life and the ability to store up to 838,041 readings, the State101A is ideal for long-term studies. Typically connected to a relay or switch, this device features a removable screw terminal block to easily disconnect and retrieve the logger for data download without disrupting wiring connectivity.
The State101A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
| Memory | 838,041 readings |
| Reading Rate | 4 Hz to 1 every 24 hours |
| Baud Rate | 115,200 |
| Channels | 1 |
| LED Indicators | Red and Green |
| Battery Life | 10 years typical, dependent upon frequency and duty cycle |
| Material | Polycarbonate |
| Dimensions | 1.4 in x 2.1 in x 0.6 in (35 mm x 54 mm x 15 mm) |
| Operating Environment | -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing |
| Required Interface Package | IFC200 |
| Approvals | CE |
| State Input Range | 0 to 30 V |
| State Input Low | <0.4 V |
| State Input High | >2.8 V |
| State Internal Weak Pull-up | <60 ?A |
| State Input Impedance | 60000 Ω |
| State Resolution | 4 Hz (reading rate selectable in software) |
