MadgeTech LF101A
Order #: LF101A
Mfg #: 900347-00
Product Highlights

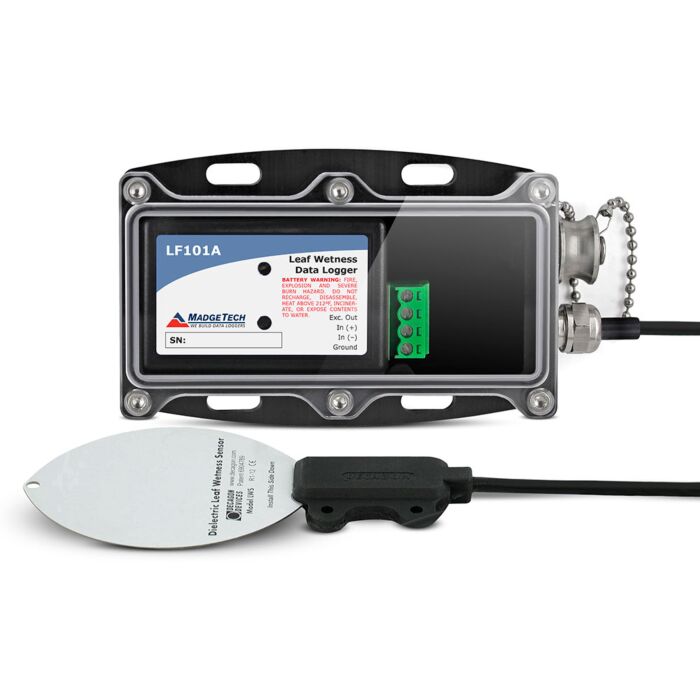

Leaf Wetness Data Logging System
The LF101A is a data logging system to measure and record leaf wetness. Includes declaration of conformance.
- Bridge101A Bridge Data Logger
- Leaf Wetness Sensor
- Waterproof Enclosure
The LF101A is a complete data logging system that accurately measures and records leaf wetness. The sensor responds to environments the same way a real leaf does. It not only records the presence of water, but also logs the amount of water and detects when ice is present.
This device has a storage capacity of up to 2,064,384 readings and features a multiple start/stop function for either a manual or delayed start. Data from the logger is retrieved using the IFC200 Data Logger Interface to download the data to the MadgeTech 4 Software. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
| Memory | 2,064,384 readings |
| Reading Rate | 4 Hz to 1 every 24 hours |
| Baud Rate | 115,200 |
| LED Indicators | Red & Green |
| Push-Button Start | Yes |
| Battery Life | 10 months typical at a 1 minute reading rate with a 350Ω load |
| 2 years typical at a 1 minute reading rate with a 1000Ω load | |
| Material | ABS Plastic |
| Dimensions | Enclosure: 2.9 in x 5.8 in x 1.5 in (74 mm x 148 mm x 39 mm) |
| Probe: 4.4 in x 2.3 in x 0.03 in (111 mm x 58 mm x 0.76 mm) | |
| IP Rating | IP65 |
| Operating Environment | -10 °C to +60 °C (+14 °F to +140 °F), 0 %RH to 100 %RH non-condensing |
| Required Interface Package | IFC200 |
| Voltage Range | Dry: 266 mV typical |
| 100 % Saturated: 833 mV typical | |
| Voltage Resolution | 50
|
