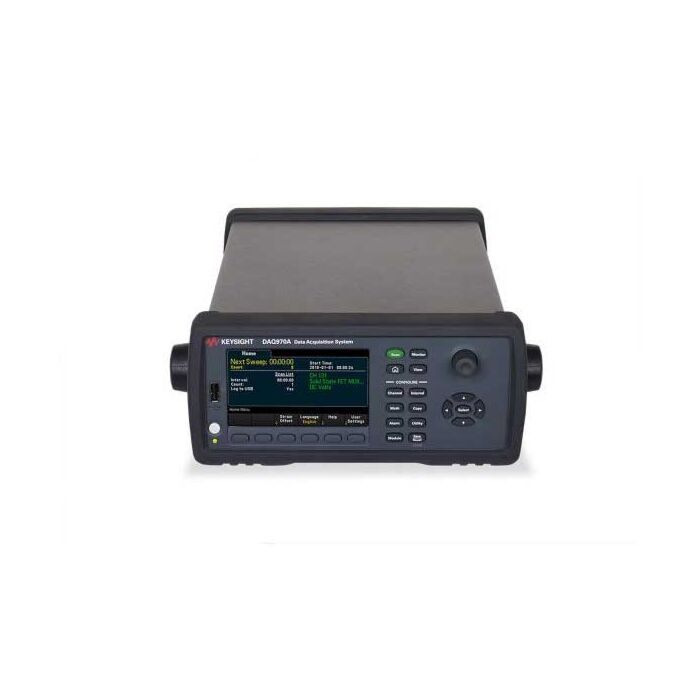

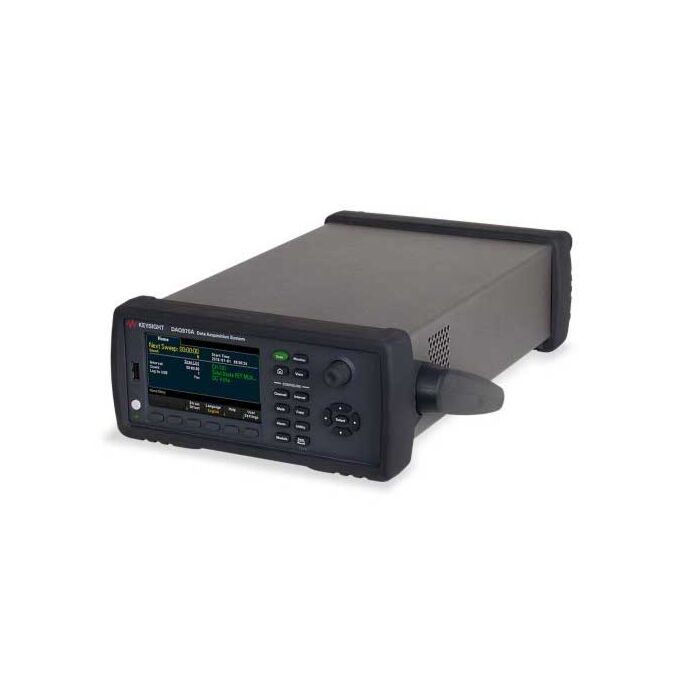

Keysight DAQ970A Data Acquisition System

Product Highlights

Get the next-generation data acquisition (DAQ) system with a 3-slot mainframe and your choice of 8 plug-in modules. Interface with the DAQ using Keysight BenchVue DAQ software, the intuitive graphical front panel with task oriented, self-guiding menus, or a web browser.

• 3-slot mainframe with USB and LAN
• 6 1/2-digit (22-bit) internal DMM, scanning up to 450 channels per second with new solid-state multiplexer module
• 9 switch and control plug-in modules to choose from
• 24-bit sampling rate of 800 kSa/s with a new DAQM909A 4 channel digitizer module
• Built-in signal conditioning measures thermocouples, RTDs and thermistors, AC/DC volts and current; resistance, frequency/period, diode test and capacitance
• 100k readings of non-volatile memory holds data when power is removed
• Hi/LO alarm limits on each channel, plus 4 TTL alarm outputs

Get the next-generation data acquisition (DAQ) system with a 3-slot mainframe and your choice of 9 plug-in modules. Interface with the DAQ using Keysight BenchVue DAQ software, the intuitive graphical front panel with task oriented, self-guiding menus, or a web browser.

• Advanced 6.5 digit internal DMM with improved accuracy and faster measurement speed
• Ability to measure very low current ranges (1 μA DC and 100 μA AC) and higher resistance range (1000 MΩ)
• New auto-calibration that compensates for internal drifts caused by time and temperature changes
• 3497XA compatible, program and configuration

Keysight's BenchVue DAQ Control and Analysis app is available for use with the DAQ970A. BenchVue gives you an intuitive interface for test configuration and real-time data display and analysis. Setup and make measurements quickly, export data or log and view real-time measurements with a variety of display types to interpret your data faster. BenchVue Software also supports many other Keysight instruments giving you a single interface for Keysight's most popular instruments. Learn more and download a free trial of BenchVue DAQ app software.
