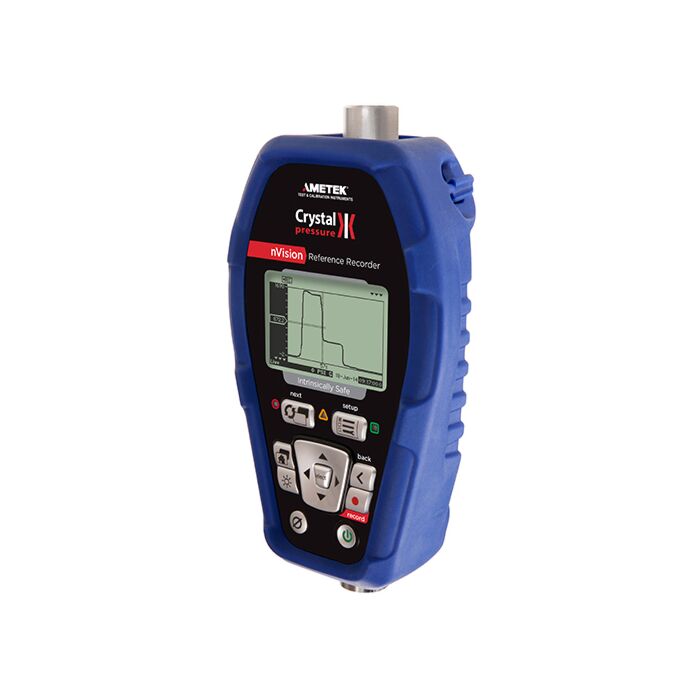

Crystal NV-4AA-10KPSI-RTD100 nVision Reference Recorder, Temperature Module
Reference Recorder
Order #: NV-4AA-10KPSI-RTD100
Mfg #: NV-4AA-10KPSI-RTD100
$5,643.00
Crystal NV-4AA-10KPSI-RTD100 nVision Reference Recorder, Temperature Module
Reference Recorder
Order #: NV-4AA-10KPSI-RTD100
Mfg #: NV-4AA-10KPSI-RTD100
$5,643.00
Availability: Ships in 3-4 weeks
Product Highlights
- 10000psi upper module
- RTD100 lower module
- Accurate enough to replace a deadweight tester
- Rugged enough to sit in 3 feet of water
- Portable enough to complete calibrations anywhere
- Gauge / Absolute Pressure Datalogger to 15,000 psi / 1000 bar / 100MPa
- Differential Pressure with up to 0.025% of reading accuracy
- Switch, Voltage, Current, and Temperature
- 500 000 data points - 10 readings per second from 2 modules
- Shift everyday wear to replaceable CPF adapter
- Displays live data graphically - no PC required
- Connects to a PC to view live readings or export to tamper proof digital records
- Compensates accuracy for temperature effects from -20 to 50°C
Each Unit Includes
- nVision Recorder
- CD Manual
- ISO 17025 Accredited Calibration Certificate, NIST Traceable
- Soft Carrying Case P/N 6053
- Protective Boot P/N 3985
- Mini-USB Cable P/N 3951
-
Crystal 3985 Protective Boot for the nVision Pressure RecorderProtective Boot for the nVision Pressure RecorderOrder #: 3985
Mfg #: 3985
Availability: Ships in 3-4 weeks$103.00 -
Crystal 4947 20m USB Active Extension Cable for nVision20m USB Active Extension Cable for nVision
Order #: 4947
Mfg #: 4947
Availability: Ships in 3-4 weeks$116.00 -
Crystal 3952 MA20 Module Test Lead SetMA20 Module Test Lead Set
Order #: 3952-CRYSTAL
Mfg #: 3952
Availability: Ships in 3-4 weeks$108.00 -
Crystal 4623-3 RTD100/385, 3-Wire, Class B Probe 4"x 3/16"RTD100/385,3-Wire,Class B Probe 4"x 3/16"
Order #: 4623-3
Mfg #: 4623-3
Availability: Ships in 3-4 weeks$398.00 -
Crystal 4623-5 Meter Cable, 26.2' with 3-wire 100ohm RTD, Class BMeter Cable,26.2'w/3-wire 100ohm RTD,Class B
Order #: 4623-5
Mfg #: 4623-5
Availability: Ships in 3-4 weeks$593.00 -
Crystal 4623-12 RTD100/385, 3 Wire, Class B, Probe with Cable, 75'RTD100/385, 3 Wire, Class B, Probe with Cable, Length 75ft
Order #: 4623-12
Mfg #: 4623-12
Availability: Ships in 3-4 weeks$911.00
All products in this series
-
Crystal NV-4AA-RTD100-10KPSI nVision Reference Recorder Temperature Module (0.05% RDG)nVision Reference Recorder Temperature Module (0.05% RDG)$5,643.00
-
-
Crystal NV-4AA-RTD100-15KPSI nVision Reference Recorder, Temperature Module (0.05% RDG)nVision Reference Recorder, Temperature Module (0.05% RDG)$6,423.00
-
Crystal NV-4AA-15KPSI-15KPSI nVision Reference Recorder, 15, 000 & 15, 000 PSI, 0.025% RDGnVision Reference Recorder, 15,000 & 15,000 PSI, 0.025% RDG$7,763.00
-
Crystal NV-4AA-RTD100-3KPSI-BARO nVision Reference Recorder, Temperature Module (0.05% RDG)nVision Reference Recorder, Temperature Module (0.05% RDG)$6,255.00
-
Crystal NV-4AA-RTD100-1KPSI nVision Reference Recorder, Temperature Module (0.05% RDG)nVision Reference Recorder, Temperature Module (0.05% RDG)$5,886.00
-
Crystal NV-4AA-15KPSI-RTD100 nVision Reference Pressure Recorder, 15K/RTD100 Temperature ModulesnVision Reference Press.Recordr 15K/RTD100 Temp.Modules$6,155.00
-
Crystal NV-4AA-RTD100-3KPSI nVision Reference Recorder, Temperature Module (0.05% RDG)nVision Reference Recorder, Temperature Module (0.05% RDG)$5,889.00
