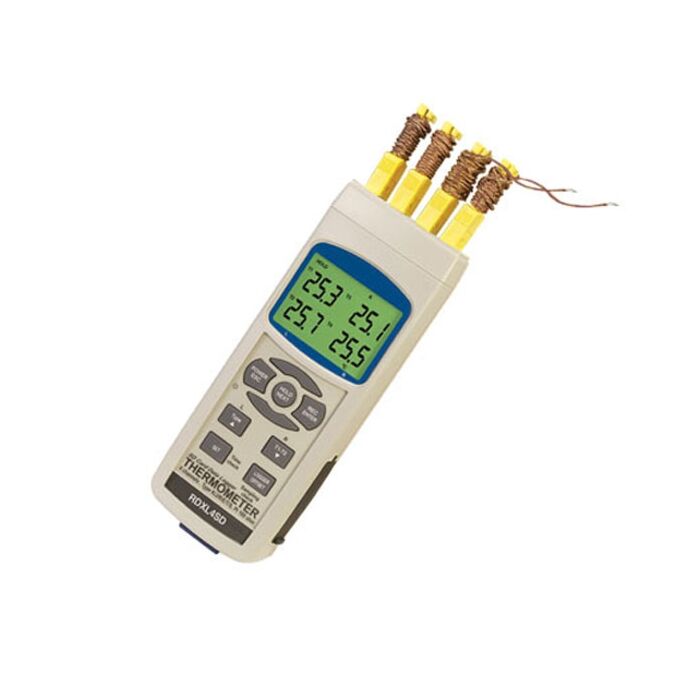

Omega Engineering RDXL4SD

Product Highlights

• 4-channel digital T/C or RTD input thermometer with 2 GB SD card
• SD Card, Real-Time Data Logger
• Input Signals: T/C K, J, T, E, R/S, and RTD Pt100 Ω Measurement
• Display All Input Channels Simultaneously
• Data Hold, Record Max and Min Reading
• RS232/USB PC Computer Interface
• LCD with Green Light Backlight, Easy Reading
• SD Card Capacity: 1 to 16 GB
• Embedded Microcontroller: Custom one-chip LSI device
• LCD Display: 82 x 61 mm (3.23 x 2.40") with green color backlight
• 4 Channels: T1, T2, T3, T4, T1-T2
• Sensor: Type J, K, T, E, R/S thermocouple probe Pt100 Ω RTD (European curve) for RDXL4SD model only
• Resolution: 0.1/1°C or °F
• Sampling Time: 1 to 3600 seconds
• Memory Card: SD memory card 1 to 16 GB
• Memory Recall: Max and min value
• Sampling Time of Display: Approx 1 second
• Data Output: RS232/USB PC computer interface
• Power Off: Auto shut off saves battery life or manual off by push button
• Operating Temperature: 0 to 50°C (32 to 122°F)
• Operating Humidity: Less than 85% RH
• Power Supply: Alkaline or heavy-duty DC 1.5V battery (UM3, AA) x 6 "AA"
• Power Current: Approx DC 30 mA
• Weight: 489 g (1.08 lb)
• Dimensions: 177 H x 68 W x 45 mm D (7 x 2.7 x 1.9")
