Keysight E5061B Impedance analysis for LF-RF Network Analyzer

Product Highlights

• Impedance analysis capabilities for the E5061B ENA LF-RF Vector Network Analyzer with Option 3L3/3L4/3L5, 5 Hz to 0.5 / 1.5 / 3 GHz

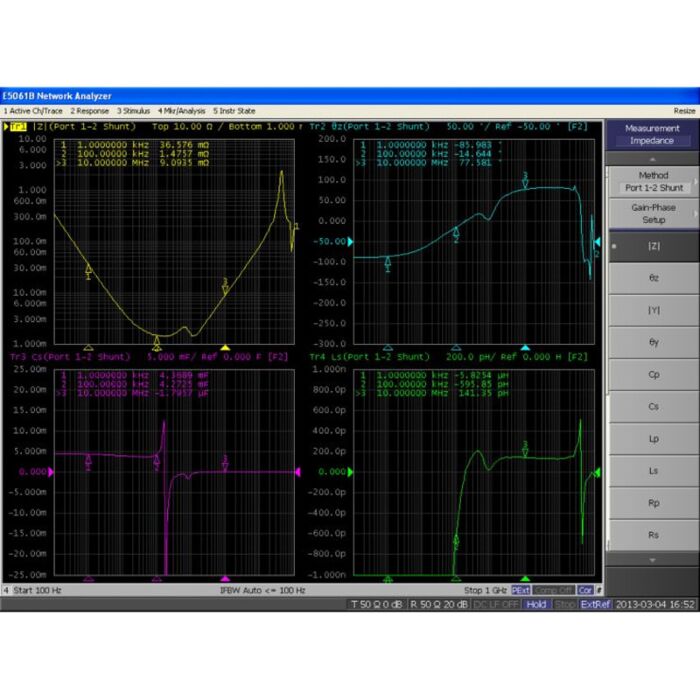

• Plots impedance parameters: IZI, ?z , IYI, ?y, Cp, Cs, Lp, Ls, Rp, Rs, D, Q, R, X, G, B
• Compatible with a wide variety of component test fixtures
• Calibration / compensation capabilities for test fixtures
• DC biased impedance measurement with the built-in DC bias source
• Equivalent circuit analysis

The E5061B Option 005 provides the impedance analysis capabilities for the E5061B ENA LF-RF Vector Network Analyzer with Option 3L3/3L4/3L5. This software option enables the analyzer to measure impedance parameters of electronic components such as capacitors, inductors, and resonators.

The convenience of impedance analysis capabilities built into the network analyzer further enhances the analyzer's versatility as a general-purpose R&D tool. The measurement capabilities including fixture compensation, calibration and equivalent circuit analysis are supported with the software. DC-biased impedance measurements are possible by using the built-in DC bias source equipped with the E5061B Option 3L3/3L4/3L5.
