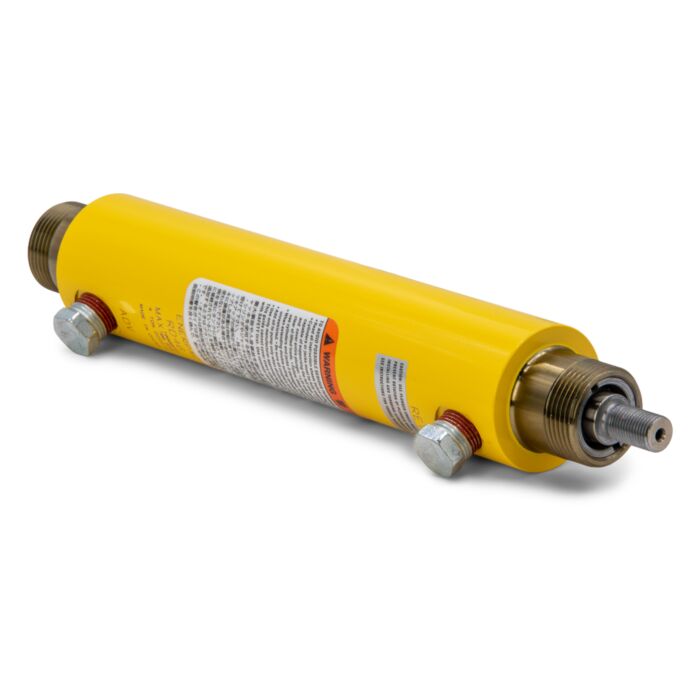

Enerpac RD46 Double-Acting, General Purpose Hydraulic Cylinder, 4 ton
Double-Acting, General Purpose Hydraulic Cylinder, 4 ton
Order #: RD46
Mfg #: RD46
Product Highlights
4 ton Capacity, 6.13 in Stroke, Double-Acting, General Purpose Hydraulic Cylinder
- Designed for long life, the best choice for production applications
- Unique mounting configurations simplify fixturing
- Baked enamel finish for increased corrosion resistance
- Double-acting operation develops force in both directions, providing maximum versatility
- Plunger wiper reduces contamination, extending cylinder life
Maximum Operating Pressure (psi) |
10,000 |
Capacity Class (tonnage) |
4 |
Maximum Cylinder Capacity Advance (short tons) |
4 |
Maximum Cylinder Capacity Retract (short tons) |
2 |
Stroke (in) |
6.13 |
Collapsed Height A (in) |
12.31 |
Extended Height B (in) |
18.44 |
Return Type |
Double-Acting, Hydraulic Return |
Plunger Type |
Solid |
Material |
Steel |
Cylinder Effective Area Advance (in2) |
0.79 |
Cylinder Effective Area Retract (in2) |
0.34 |
Oil Capacity Advance (in3) |
4.81 |
Oil Capacity Retract (in3) |
2.1 |
Cylinder Capacity Advance at 5000 psi (lbs) |
3900 |
Cylinder Capacity Retract at 5000 psi (lbs) |
1720 |
Surface Treatment |
Paint |
Coupler |
- |
Weight (lbs) |
9 |
