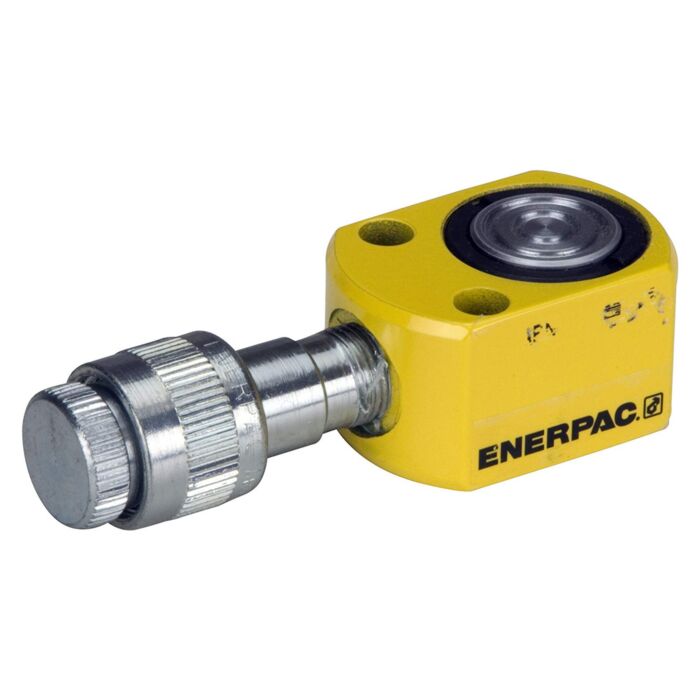

Enerpac RSM-50 Flat-Jac Cylinder, 5-Ton, 1/4"Stroke
Flat-Jac Cylinder,5-Ton 1/4"Stroke
Order #: RSM-50
Mfg #: RSM-50
Availability: Ships in 3-4 weeks
Product Highlights
- Compact, flat design for use where other cylinders will not fit
- Mounting holes permit easy fixturing
- Baked enamel finish for increased corrosion resistance
- AR400 coupler and dust cap included
- Hard chrome plated high-quality steel plungers
- Grooved plunger ends require no saddle
- Single-acting spring return
Enerpac Model No. |
RSM-50/100 |
RSM-200 |
RSM-300 |
RSM-500 |
RSM-750 |
RSM-1000/1500 |
Cylinder Capacity (tons) |
5/10 tons |
20 tons |
30 tons |
50 tons |
75 tons |
100/150 tons |
Stroke (in) |
.25"/.44" |
.44" |
.50" |
.63" |
.63" |
.63"/.63" |
Cylinder Effective Area (in squared) |
.99/2.24 |
4.43 |
6.49 |
9.62 |
15.9 |
19.63/30.68 |
Collapsed Height (in) |
1.28"/1.69" |
2.03" |
2.31" |
2.63" |
3.13" |
3.38"/3.94" |
Weight (lbs) |
2.3 lbs/3.1 lbs |
6.8 lbs |
10 lbs |
15 lbs |
25 lbs |
32/58 lbs |
