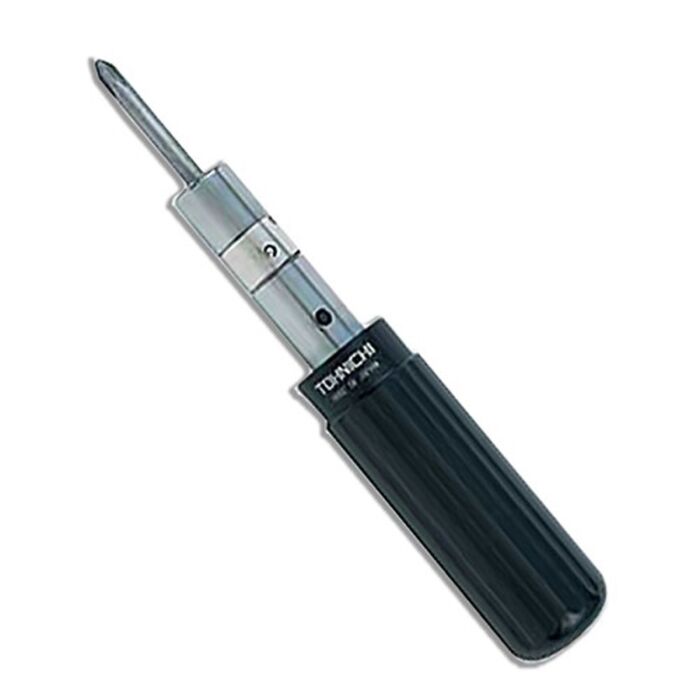

Tohnichi AMLD4CN
Adjustable Torque Driver for Fine Screw, 1-4, 0.05cN.m
Order #: AMLD4CN
Mfg #: AMLD4CN
Special Price
$642.02
Regular Price
$683.00
Tohnichi AMLD4CN
Adjustable Torque Driver for Fine Screw, 1-4, 0.05cN.m
Order #: AMLD4CN
Mfg #: AMLD4CN
Special Price
$642.02
Regular Price
$683.00
Availability: Ships in 3-4 weeks
Product Highlights
- Adjustable Torque Screwdriver for precision tightening of small screws (M1-M2).
- Easily set torque by twisting body to select torque value
- Upon reaching torque set, user will sense the limit and should stop turning.
- If user continues turning beyond the limit, tool will continue applying torque.
- AMLD/BMLD are non rotary slip types. See AMRD/BMRD models for rotary slip feature which prevents over-torque.
- Features enhanced reliability and durability with Tohnichi's toggle clutch torque mechanism.
- Index finger holding feature allows the operator to tighten with precise movements.
| Accuracy ± 3% | ||||||||||||
| S.I. MODEL | AMLD1CN | AMLD2CN | AMLD4CN | AMLD8CN | BMLD15CN2 | BMLD30CN2 | ||||||
| TORQUE RANGE [cN · m] |
MIN.~MAX. | 0.3~1 | 0.5~2 | 1~4 | 2~8 | 2~15 | 4~30 | |||||
| GRAD. | 0.01 | 0.025 | 0.05 | 0.1 | 0.2 | |||||||
| METRIC MODEL | 100AMLD | 200AMLD | 400AMLD | 800AMLD | 1.5BMLD2 | 3BMLD2 | ||||||
| TORQUE RANGE [gf · cm/kgf · cm] |
MIN.~MAX. | gf · cm 30~100 | 50~200 | 100~400 | 200~800 | kgf · cm 0.2~1.5 | 0.4~3 | |||||
| GRAD. | gf · cm 1 |
2.5 | 5 | 10 | kgf · cm 0.01 |
0.02 | ||||||
| AMERICAN MODEL | - | AMLD3Z | AMLD6Z | AMLD12Z | 1.5BMLD2-A | 3BMLD2-A | ||||||
| TORQUE RANGE [ozf · in/lbf · in] |
MIN.~MAX. | - | ozf · in 1~3 | 2~6 | 3~12 | lbf · in 0.2~1.5 | 0.4~3 | |||||
| GRAD. | - | ozf · in 0.05 | 0.1 | 0.2 | lbf · in 0.005 |
0.01 | ||||||
| APPLICABLE SCREW | SMALL SCREW | - | 𝓁1 | (M1.1)M1.2 | (M1.4)M1.6 | (M1.8) | M2(M2.2) | |||||
| TAPPING SCREW | - | - | M1 | (M1.1)M1.2 | (M1.4)M1.6 | (M1.8)M2 | ||||||
| DIMENSION [mm] |
OVERALL LENGTH | L' | 83 | 116 | ||||||||
| GRIP | 𝓁1 | 9 | 15 | |||||||||
| BODY | 𝓁2 | 8 | 11 | |||||||||
| D3 | 13 | 15 | ||||||||||
| 𝓁1 | 48 | 62 | ||||||||||
| 𝓁1 | 14 | |||||||||||
| 𝓁2 | 14 | 10 | ||||||||||
| WEIGHT [kg] | 0.026 | 0.05 | ||||||||||
| ACCESSORY BIT | + | #0 | ||||||||||
| -thickness X width | 0.15x1, 0.2x1.5, 0.3x2 | |||||||||||
