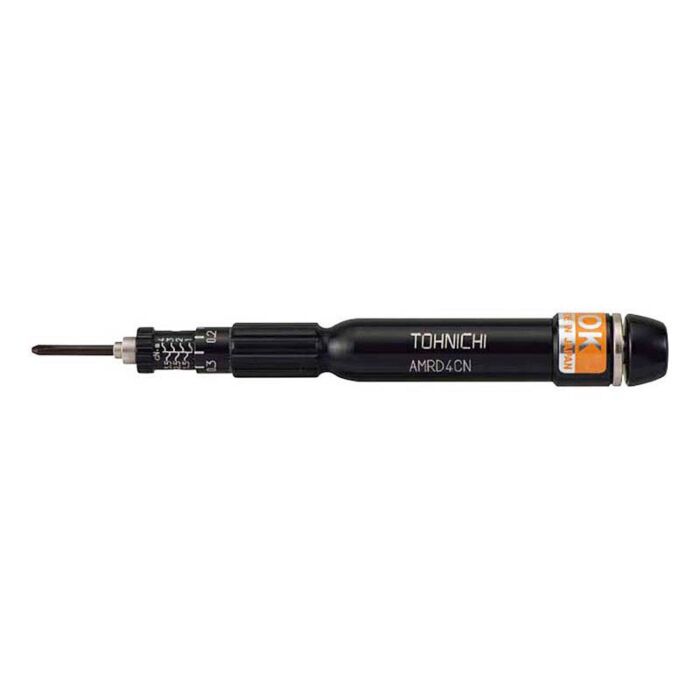

Tohnichi AMRD4CN
Rotary Slip, Adj Torque Driver for Fine Screw, 1-4, 0.05cN.m
Order #: AMRD4CN
Mfg #: AMRD4CN
Special Price
$877.02
Regular Price
$933.00
Tohnichi AMRD4CN
Rotary Slip, Adj Torque Driver for Fine Screw, 1-4, 0.05cN.m
Order #: AMRD4CN
Mfg #: AMRD4CN
Special Price
$877.02
Regular Price
$933.00
Availability: Ships in 3-4 weeks
Product Highlights
- Adjustable Torque Screwdriver for precision tightening of small screws (M1-M2).
- Easily set torque by twisting body to select torque value
- Rotary slip mechanism prevents over-torque.
- User will sense and hear "click" at set torque and should stop turning. If user continues, the rotary slip mechanism will ratchet the driver without applying more torque.
- Tohnichi's toggle clutch torque mechanism creates enhanced durability and reliability
- Index finger holding feature allows the operator to tighten with precise movements.
| Accuracy ± 3% | |||||||||||||||
| S.I. MODEL | AMRD1CN | AMRD2CN | AMRD4CN | AMRD8CN | BMRD15CN2 | BMRD30CN2 | |||||||||
| TORQUE RANGE [cN · m] |
MIN.~MAX. | 0.3~1 | 0.5~2 | 1~4 | 2~8 | 2~15 | 4~30 | ||||||||
| GRAD. | 0.01 | 0.025 | 0.05 | 0.1 | 0.2 | ||||||||||
| METRIC MODEL | 100AMRD | 200AMRD | 400AMRD | 800AMRD | 1.5BMRD2 | 3BMRD2 | |||||||||
| TORQUE RANGE [gf · cm/kgf · cm] |
MIN.~MAX. | gf · cm30~100 | 50~200 | 100~400 | 200~800 | kgf · cm0.2~1.5 | 0.4~3 | ||||||||
| GRAD. | gf · cm1 | 2.5 | 5 | 10 | kgf · cm0.01 | 0.02 | |||||||||
| AMERICAN MODEL | - | AMRD3Z | AMRD6Z | AMRD12Z | 1.5BMRD2-A | 3BMRD2-A | |||||||||
| TORQUE RANGE [ozf · in/lbf · in] |
MIN.~MAX. | - | ozf · in 1~3 |
2~6 | 3~12 | lbf · in0.2~1.5 | 0.4~3 | ||||||||
| GRAD. | - | ozf · in 0.05 |
0.1 | 0.2 | lbf · in0.005 | 0.01 | |||||||||
| APPLICABLE SCREW | SMALL SCREW | - | M1 | (M1.1)M1.2 | (M1.4)M1.6 | (M1.8) | M2(M2.2) | ||||||||
| TAPPING SCREW | - | - | M1 | (M1.1)M1.2 | (M1.4)M1.6 | (M1.8)M2 | |||||||||
| DIMENSION [mm] |
OVERALL LENGTH | L' | 93 | 116 | |||||||||||
| GRIP | 𝓁1 | 10 | 15 | ||||||||||||
| BODY | 𝓁2 | 8 | 11 | ||||||||||||
| D3 | 13 | 15 | |||||||||||||
| 𝓁1 | 72 | 62 | |||||||||||||
| 𝓁1 | 14 | ||||||||||||||
| 𝓁2 | 8 | 10 | |||||||||||||
| WEIGHT [kg] | 0.03 | 0.05 | |||||||||||||
| ACCESSORY BIT | + | #0 | |||||||||||||
| -thickness X width | 0.15x1, 0.2x1.5, 0.3x2 | ||||||||||||||
