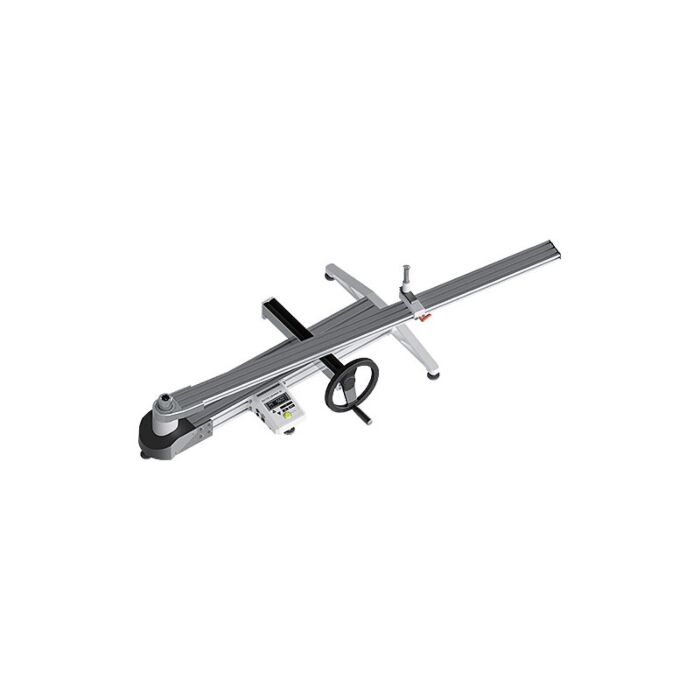

Tohnichi DOTE1000N4-G
Digital Torque Wrench Tester, 100-1000, 10-100, 0.1lbf.ft
Order #: DOTE1000N4-G
Mfg #: DOTE1000N4-G
Special Price
$12,014.14
Regular Price
$12,781.00
Tohnichi DOTE1000N4-G
Digital Torque Wrench Tester, 100-1000, 10-100, 0.1lbf.ft
Order #: DOTE1000N4-G
Mfg #: DOTE1000N4-G
Special Price
$12,014.14
Regular Price
$12,781.00
Availability: Ships in 3-4 weeks
Product Highlights

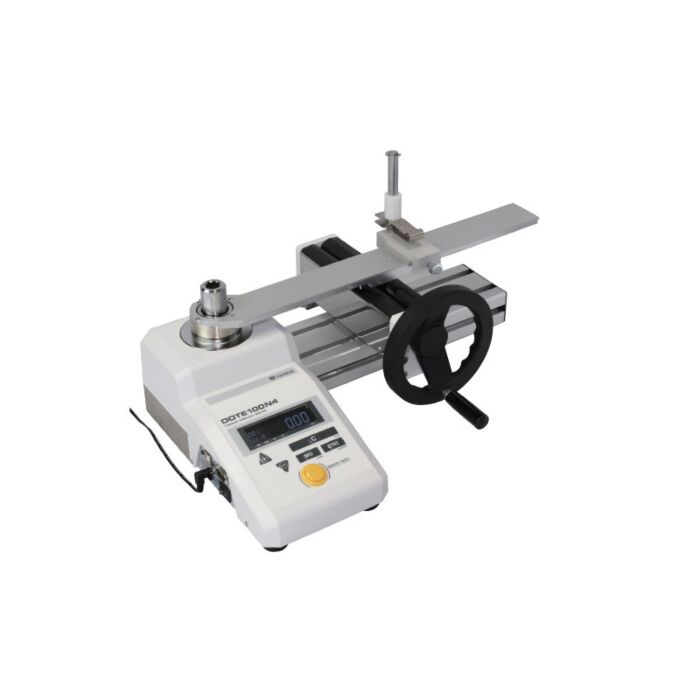

- DOTE4-G Digital torque wrench tester with manual loader. Ideal for torque wrench calibration and adjustment.
- Also available with Motor Drive Loader: Model DOTE4-G-MD
- Motor Drive Retrofit Kit Available for DOTE4-G to upgrade standard model to motor drive version.
- Pole holder and plate are equipped on all models, which helps keep wrenches in optimal testing postion.
- Auto-zero function.
- Up to 1000 measurement data items can be stored in the memory.
- Peak/Run modes with 10 customizable hi/lo judgment patterns
- Color Judgment Display makes it easy to confirm readings are within your set parameters
- Global units of measure selection by keypad: cNm, NM, kgf.cm, kgf.m, lbf.in, lbf.ft
- Sample quantity, maximum value (Hi), minimum value (Lo) and mean value can be displayed.
- Manual and Auto Reset from 0.1~5.0 seconds
- RS232C output and USB for easy connection to PC or Printer EPP16M3 (cables sold separately)
- Uses AC100 to 240V +/10% 50/60Hz # BA-6, AC Adapter Included

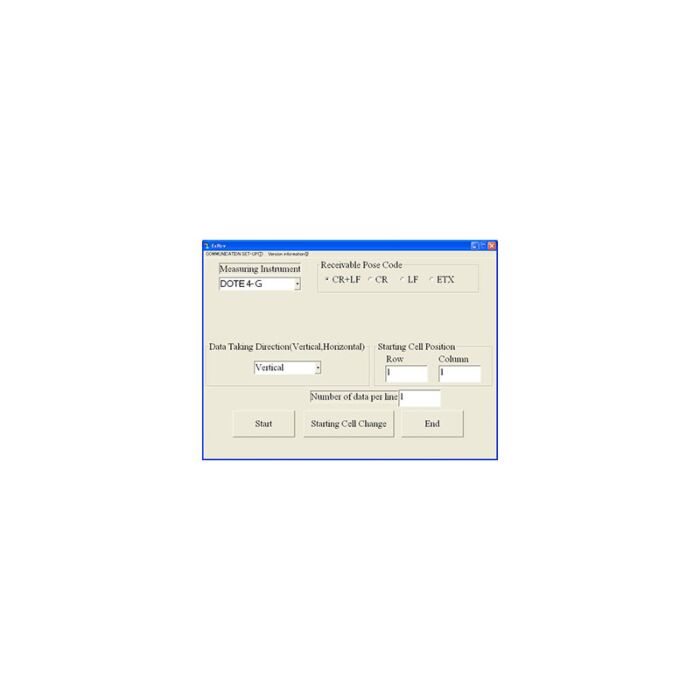

- Excel Receiver software sends collected data to a Excel.
- Includes Calibration Certificate: ILAC MRA
- Calibration Kits (sold separately) to check and adjust accuracy of tester on periodic basis. (or send to Tohnichi Service Center)
- CE markings applied for use in the EU.
| DISPLAY | Black Mask, LCD, White-Red-Blue |
| DATA MEMORY | 1000 data |
| Hi/Lo Setting Pattern | 10 Setting Patterns, A through J |
| STATISTICAL PROCESSING | Number of samples/max./min./mean value |
| MEASURING MODE | PEAK/RUN |
| ZERO ADJUSTMENT | Automatic (press C key) |
| DATA OUTPUT | RS232C compliant (Factory default: PC output, Printer: key setting) |
| RESET | Manual/Auto (0.5~5.0 sec. freely changeable by 0.1 sec) |
| OPERATING TEMPERATURE RANGE[°C] | 0~40 (no condensation) |
| POWER AC[V] | 100~240 ±10% 50/60Hz |
| POWER CONSUMPTION [W] | Less than 5W |
| Accuracy ± 1%+1digit | ||||||||
| MODEL | DOTE20N4-G | DOTE50N4-G | DOTE100N4-G | DOTE200N4-G | DOTE500N4-G | DOTE1000N4-G | ||
| Description | Manual Loader | |||||||
| MODEL | DOTE20N4-G-MD2 | DOTE50N4-G-MD2 | DOTE100N4-G-MD2 | DOTE200N4-G-MD2 | DOTE500N4-G-MD2 | DOTE1000N4-G-MD2 | ||
| Description | Motor Driven Loader | |||||||
| TORQUE RANGE [N · m] |
MIN.~MAX. | 2.000~20.000 | 5.00~50.00 | 10.00~100.00 | 20.00~200.00 | 50.0~500.0 | 100.0~1000.0 | |
| [N · m] | 1 digit | 0.002 | 0.005 | 0.01 | 0.02 | 0.05 | 0.1 | |
| TORQUE RANGE [N · cm] |
MIN.~MAX. | 200.0~2000.0 | -- | -- | -- | -- | -- | |
| [N · cm] | 1 digit | 0.2 | -- | -- | -- | -- | -- | |
| TORQUE RANGE [kgf · m] |
MIN.~MAX. | -- | -- | -- | -- | 5.00~50.00 | 10.00~100.00 | |
| [kgf · m] | 1 digit | -- | -- | -- | 0.005 | 0.01 | ||
| TORQUE RANGE [kgf · cm] |
MIN.~MAX | 20.00~200.00 | 50.0~500.0 | 100~1000.0 | 200.0~2000.0 | -- | -- | |
| [kgf · cm] | 1 digit | 0.02 | 0.05 | 0.1 | 0.2 | -- | -- | |
| TORQUE RANGE [lbf · in] |
MIN.~MAX. | 18.00~180.00 | 44.0~440.0 | 88.0~880.0 | 170.0~1700.0 | 440~4400 | 880~8800 | |
| [lbf · in] | 1 digit | 0.02 | 0.05 | 0.1 | 0.2 | 0.5 | 1 | |
| TORQUE RANGE [lbf ·ft] |
MIN.~MAX. | -- | 3.60~36.00 | 7.30~73.00 | 15.00~150.00 | 36.0~360.0 | 73.0~730.0 | |
| [lbf ·ft] | 1 digit | -- | 0.005 | 0.01 | 0.02 | 0.05 | 0.1 | |
| TORQUE WRENCH MAX EFFECTIVE LENGTH L[mm] | 410 | 660 | 1020 | 1650 | ||||
| INLET DRIVE □a[mm] | 9.53 | 12.7 | 19.05 | 25.4 | ||||
| DIMENSION [mm] |
OVERALL LENGTH | L' | 511 | 771 | 1141 | 1771 | ||
| OVERALL WIDTH | B | 263 | 490 | 546 | 630 | |||
| OVERALL HEIGHT | H | 221 | 278 | 304 | 361 | |||
| BODY | B1 | 245 | 265 | |||||
| B2 | 221 | 241 | ||||||
| L1 | 150 | |||||||
| L2 | 5.6 | 15.6 | ||||||
| H1 | 87 | 117 | 139 | |||||
| H2 | 142 | 162 | 201 | 222 | ||||
| WEIGHT [kg] | 11 | 13 | 24 | 45 | ||||
| WEIGHT [kg] with Motor Drive | ||||||||
| ACCESSORIES [mm] |
DOWN ADAPTER SQ. (MALE-FEMALE) |
□9.53 - □6.35 | □12.7 - □6.35 □12.7 - □9.53 |
? | ? | □19.05 - □12.7 | ||
| ADAPTER SQ.(MALE) - HEX(FEMALE) |
□9.53 - W10 · 13 · 19 □9.53 - W12 · 14 · 17 |
□12.7 - W10 · 13 · 19 □12.7 - W12 · 14 · 17 |
□12.7 - W17 · 22 · 27 □12.7 - W19 · 24 · 30 |
□19.05 - W22 · 27 · 29 □19.05 - W30 · 32 · 36 |
□25.4 - W34 · 41 □25.4 - W46 · 50 |
|||
