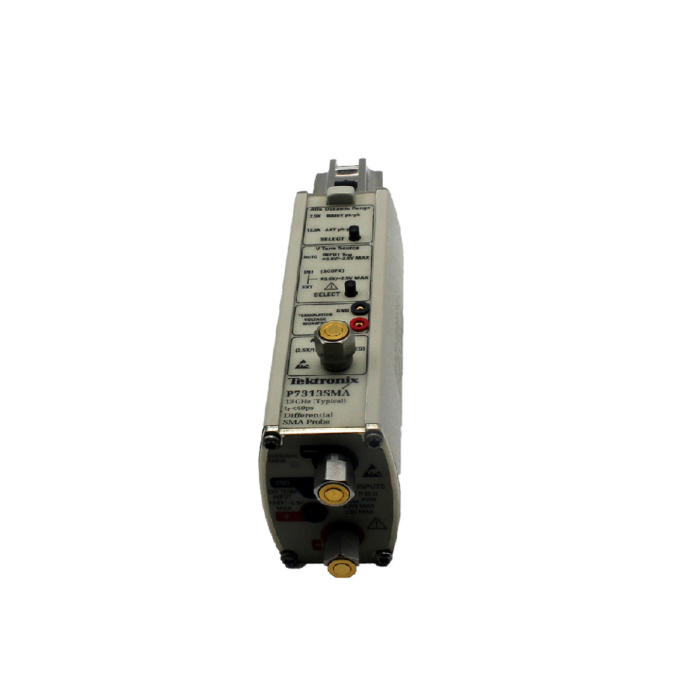

Used Tektronix P7313SMA 13GHz Differential SMA Probe
13GHz Differential SMA Probe
Order #: P7313SMA-USED
Mfg #: P7313SMA
$9,050.00
Used Tektronix P7313SMA 13GHz Differential SMA Probe
13GHz Differential SMA Probe
Order #: P7313SMA-USED
Mfg #: P7313SMA
$9,050.00
Request a Used Instrument Quote
Have a Question? Speak to a Transcat Expert: 800.264.4059
Transcat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support
Availability: Ships in 1-2 weeks
![Loading...](https://www.transcat.com/static/version1721668873/frontend/Transcat/default/en_US/images/loader-1.gif)
Product Highlights
The Tektronix P7313SMA is a differential input probe for Tektronix real-time oscilloscopes. The P7313SMA provides a high fidelity differential input connection with low noise. Created for the purpose of measuring differential signals in 50 O signaling environments, the P7313SMA provides its user with the ability to measure high-speed differential signals on each channel of a multiple-channel oscilloscope.
- >13.0 GHz Bandwidth (Typical)
- 50Ohm Termination Network, Differential SMA Inputs
- Industry Leading Differential Return Loss and VSWR
- High Bandwidth Differential Amplifier with excellent CMRR
- Internal Termination Voltage Generator controlled by Internal by Oscilloscope
- External Source, or Automatically by the probe
- Phase Matched SMA Cables (38 inch length <1ps skew) with Cable Loss Compensation
- Switchable Gain for extended dynamic range
- Auxiliary (inverted) output for use with Spectrum Analyzers, Network Analyzers, or as a clock recovery trigger source
- TekConnect Interface
