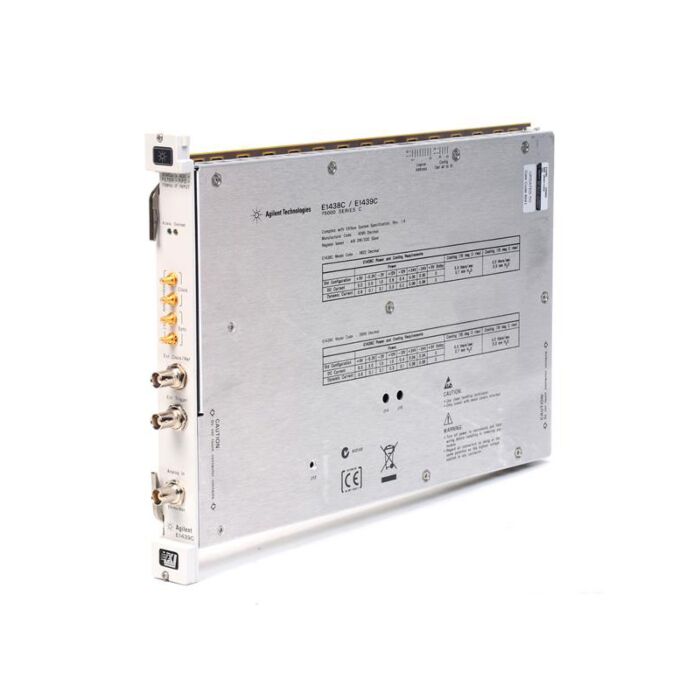

Used Keysight E1439C VXI SingleCh, 95MSa/s Digitizer DSP, Memory & 70MHz IF Input

Product Highlights

The Keysight 1439C/D is ideal for applications in RF signal acquisition, analysis and high resolution ATE. It has a baseband input and a 70 MHz IF input, both with 36 MHz bandwidth. The single-channel 95 MSa/s digitizer combines exceptional spurious-free dynamic range with alias-protected signal conditioning, center-frequency tunable digital filters, and a large signal capture memory, all in a single-wide C-size VXI module. The E1439D also incorporates a 200 MB/sec FPDP (Front Panel Data Port) capable of carrying full bandwidth data out of the module for analysis or storage.

• 36 MHz input bandwidth centered at 70 MHz
• -90 dBfs spurious-free dynamic range
• Anti-alias filter and signal conditioning
• 18MB RAM FIFO memory (expandable to 1.2 GB)
• VXIbus outputs
• VXI local bus (E1439D only)
• Multi-channel compatible
• VXI plug&play compatible
• Single-slot, C-size module
