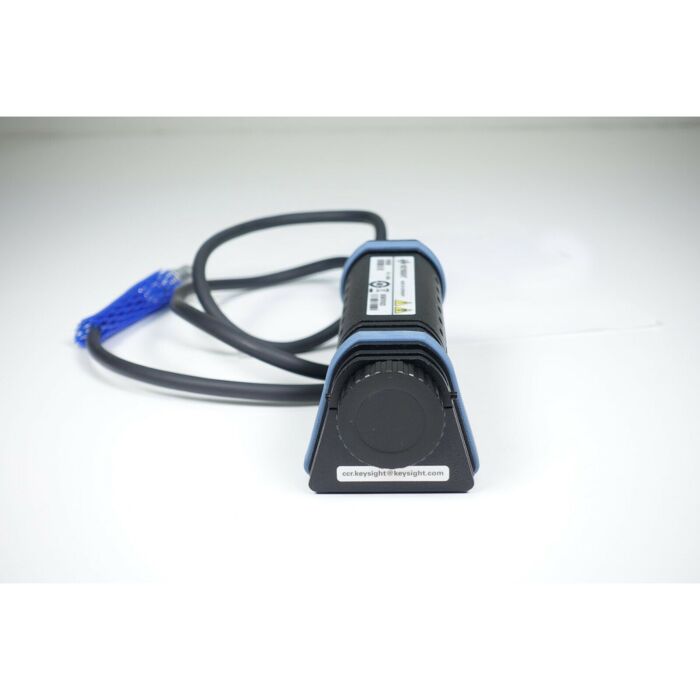

Used Keysight / Agilent 81624B General Purpose Optical Power Head
General Purpose Optical Power Head

Order #: 81624B-USED

Mfg #: 81624B

Questions about availability or need help? Contact Us:

(800) 633-0561
$6,995.00

Used Keysight / Agilent 81624B General Purpose Optical Power Head

General Purpose Optical Power Head

Order #: 81624B-USED

Mfg #: 81624B

$6,995.00

Request a Used Instrument Quote

Have a Question? Speak to a Transcat Expert: 800.264.4059

Used instruments from TranscatTranscat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support

Availability:
In stock
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

The Keysight 81624B optical power heads provide the highest accuracy and are specially designed for low polarization dependence, low spectral ripple and high return loss.

The 8162xB family of optical power heads provide accurate power measurements with a large area detector in a remote head for flexible positioning. Functionality includes averaging time settings from 100 µs to 10 s, automatic power ranging, monitoring of minimum and maximum values and logging up to 20k samples. Fiber adapters are available for common connector types including MT ribbon fiber connectors and bare fiber clamps. The D-shaped adapter type are held magnetically for quick adapter change. The heads also include a removable 81624DD adapter ring for use with the threaded type adapters. The heads are connected to the 816x mainframes using the 81618A single channel or 81619A dual-channel interface module.

  • Low polarization dependence ±0.002dB
  • Low spectral ripple uncertainty: ±0.002dB
  • Large area detector 5mm
  • ±1.5% uncertainty with special calibration
  • ±0.8% uncertainty with PTB calibration
