Used Yokogawa WT500-760203 Digital Power Analyzer, 3 Element, 15 to 1000V

Product Highlights

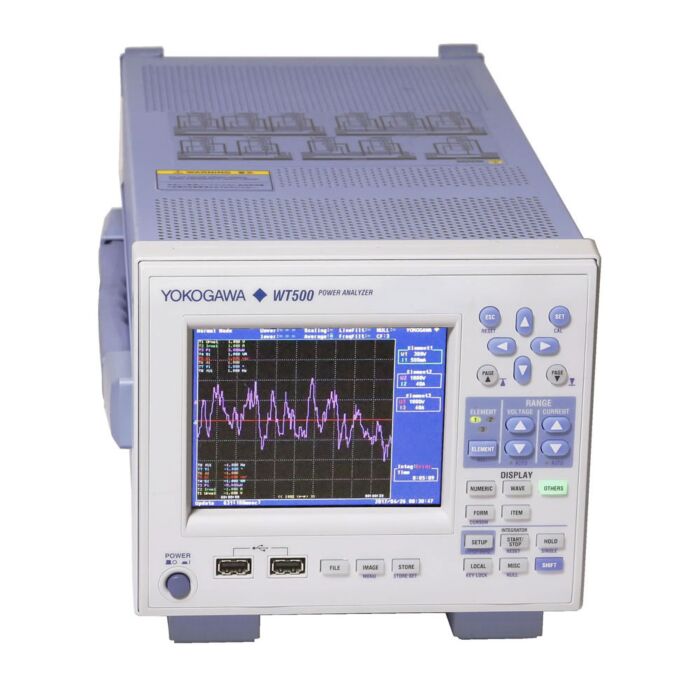

Yokogawa WT500 760203 C1/C7/G5/DT/FQ Digital Power Analyzer

The WT500 Digital Power Analyzer excels at single-phase and three-phase power measurements. Standard features include a color TFT display and USB interface for communications and memory. The instrument has a basic accuracy of 0.1%, maximum inputs of 1000 V, 40 A and a measurement bandwidth of DC to 100 kHz.

Options: GP-IB Communication (/C1); Ethernet Communication (/C7); Harmonic Measurement (/G5); Delta Computation (/DT); Added Frequency Measurement (/FQ)

Features:

• Current range: 0.5 to 40 A
• Voltage range: 15 to 1000 V
• Basic Power Accuracy: 0.1%
• Frequency Range: DC 0.5 Hz to 100 kHz
• Simultaneous measurement of DC and AC signals
• Separate integration functions for charge/discharge and bought/sold power
• Saving measured data directly to USB memory
• Simultaneous measurement of normal data and harmonic data with the harmonic measurement, /G5 option
• WT series for power evaluation of energy-saving equipment
• Simultaneous measurement of voltage, current, power, and harmonics
• High-speed data updating (100 ms)
• Display of numerical values, waveforms and trends
• Measurement of bought and sold watt hours
• Easy setup and operation
