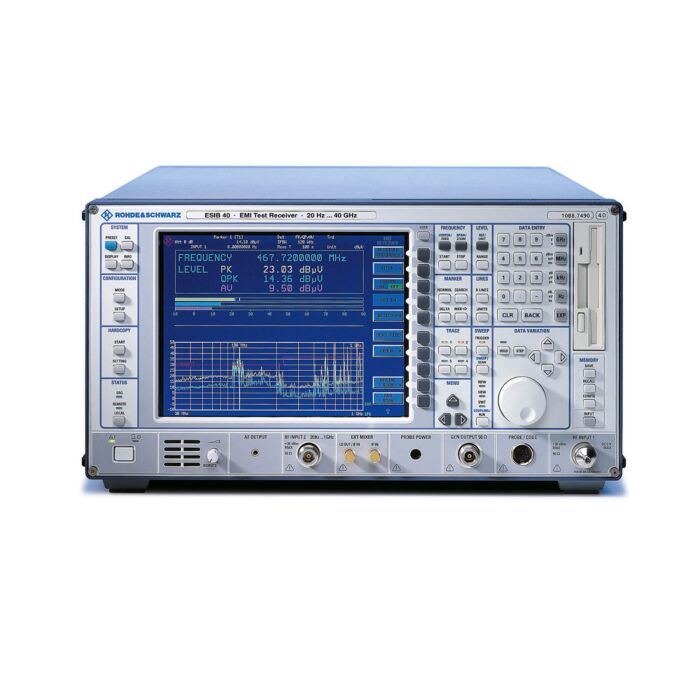

Used Rohde & Schwarz ESIB40 EMI Test Receiver

Product Highlights

Each R&S^®ESIB combines the high sensitivity, large dynamic range and selectivity of a high-end EMI test receiver with the flexibility and speed of a top-class spectrum analyzer.

The R&S^®ESIB EMI test receivers fully comply with the basic standard CISPR 16-1-1 and carry out measurements in conformance with all civil and military EMI standards such as CISPR, EN, VDE, ANSI, FCC, BS, ETS, VCCI, MIL-STD, VG, DEF-STAN, etc.

Outstanding performance

Frequency range 20 Hz to 7 GHz, 26.5 GHz or 40 GHz, depending on model
Very high sensitivity (NF typ. 10 dB)
Excellent large-signal immunity (1 dB comp.: +10 dBm)
Low measurement uncertainty (< 1 dB up to 1 GHz)
High measurement speed and result processing (min. meas. time 100 µs)
Low inherent noise (<-3 dBµV)

The upper frequency limit of the R&S^®ESIB26 and R&S^®ESIB40 can be extended up to 110 GHz by means of external mixers (options R&S^®FSE-B21 and mixers R&S^®FS-Zxx required).

Scope of applicationEach R&S^®ESIB offers features and test routines for the various stages of product development as well as for the final EMC certification tests.

The main users of the R&S^®ESIB are

EMC test houses and service providers
Governmental organizations
Safety standard authorities
Military
Large industrial development and EMC labs (e.g. automotive)

Specifications

Frequency range
Input 1	20 Hz to 7 GHz / 26.5 GHz / 40 GHz depending on model
Input 2	20 Hz to 1 GHz
Preselection	9 or 10 preselection filters depending on model can be switched off in analyzer mode
Resolution bandwidths (receiver and analyzer mode)
6 dB bandwidths EMI bandwidths	10 Hz to 10 MHz, in decimal steps 200 Hz, 9 kHz, 120 kHz, 1 MHz acc. to CISPR 16 tolerance
Resolution bandwidths (analyzer mode)
3 dB bandwidths	1 Hz to 10 MHz, in steps 1/2/3/5
Displayed average noise level
Receiver mode; 0 dB RF attn.; preamp. 20 dB	R&S ESIB7	R&S ESIB26 / 40
9 kHz to 150 kHz (RBW 200 Hz)	–10 to –24 dBµV	–10 to –24 dBµV
0.15 MHz to 30 MHz (RBW 9 kHz)	–7 to –17 dBµV	–7 to –17 dBµV
30 MHz to 1000 MHz (RBW 120 kHz)	<–6 dBµV	<–3 dBµV
1 GHz to 7 GHz (RBW 1 MHz)	<6 to 9 dBµV	<9 to 12 dBµV
7 GHz to 26.5 GHz (RBW 1 MHz)	–	<4 to 6 dBµV/6 to 9 dBµV
26.5 GHz to 40 GHz (RBW 1 MHz)	–	– /20 to 26 dBµV
Max. dynamic range (BW 1 Hz)
1 dB compr. point/displayed noise floor	162 dB	160 dB
Total level uncertainty (preamp. off)
Analyzer mode	≤ 1 GHz 1 GHz to 7 GHz	≤ 0.5 dB ≤ 1.0 dB
Receiver mode	150 kHz to 1 GHz 1 GHz to 4.5 GHz 4.5 GHz to 7 GHz	≤ 1.0 dB ≤ 2.0 dB ≤ 2.5 dB
Measurement speed
Sweep (analyzer mode)	1 µs to 2.500 s (zero span) 5 ms to 1.000 s (span ≥ 10 Hz)
Scan (receiver mode)	100 µs to 1.000 s
Max. input level
RF attn. ≥ 10 dB; sinewave AC voltage	137 dBµV (= 1 W)
Max. input pulse voltage (10 µs)
Input 2 (≤1 GHz); RF attn. ≥ 10 dB	1.500 V for the R&S ESIB7 250 V for the R&S ESIB26/40
