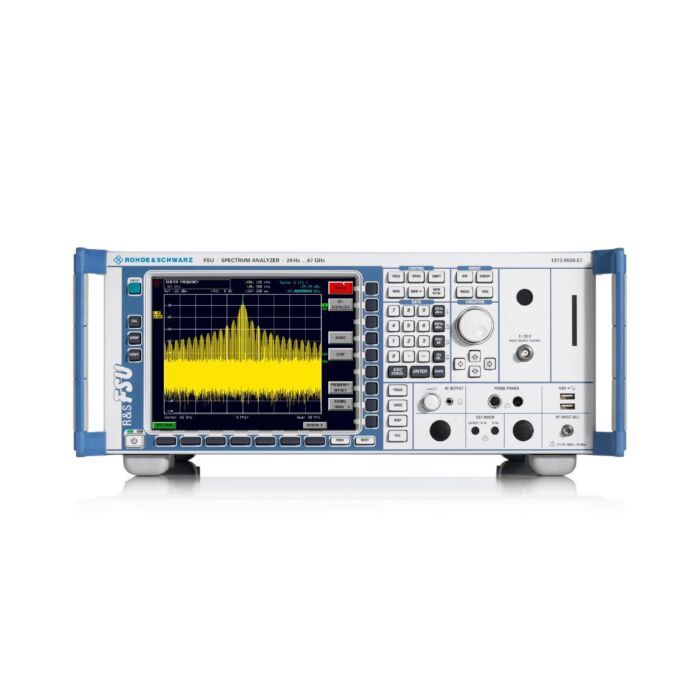

Used Rohde & Schwarz FSU67 Spectrum Analyzer, 20Hz to 67GHz

Product Highlights

• TOI > 20 dBm, typ.: +25 dBm
• 1 dB compression: +13 dBm (0 dB RF attenuation)
• Displayed average noise level: –152 dBm at 2 GHz; –148 dBm at 26 GHz (1 Hz bandwidth)
• Typ. 77 dB ACLR for 3GPP, typ. 84 dB with noise correction
• Phase noise: typ. –160 dBc (1 Hz) at 10 MHz carrier offset
• Noise correction
• Full choice of detectors
• Versatile resolution filters
• Full range of analysis functions
• High dynamic range
• Measuring frequency deviation after settling
• Power measurement
• Scalar network analysis with wide dynamic range
• Direct frequency range up to 67 GHz
• Easy expansion of the frequency range to 110 GHz with external mixers from Rohde & Schwarz
• Support of external mixers up to 1 THz
• Short test cycles, high throughput
• Fast time domain power measurement
• List mode: combined measurement of various parameters with a single command
• Up to 70 measurements/s in zero span via IEC/IEEE bus, including trace data transfer
• 859x/8566-compatible IEC/IEEE bus command set
• High measurement speed

The Rohde & Schwarz FSU67 is a high-performance spectrum analyzer with outstanding performance in phase noise, dynamic range and measurement accuracy that meets any challenge in RF analysis – in aerospace and defense or for general microwave applications up to 67 GHz.

To handle the wide variety of measurement tasks in product development, an instrument must offer ample functionality and excellent performance in all areas of interest. Its wide dynamic range makes the R&S FSU67 an ideal tool for base station development and testing. That plus the excellent characteristics already incorporated in the standard model, e.g. < 0.3 dB total measurement uncertainty, gated sweep and IF power trigger.
