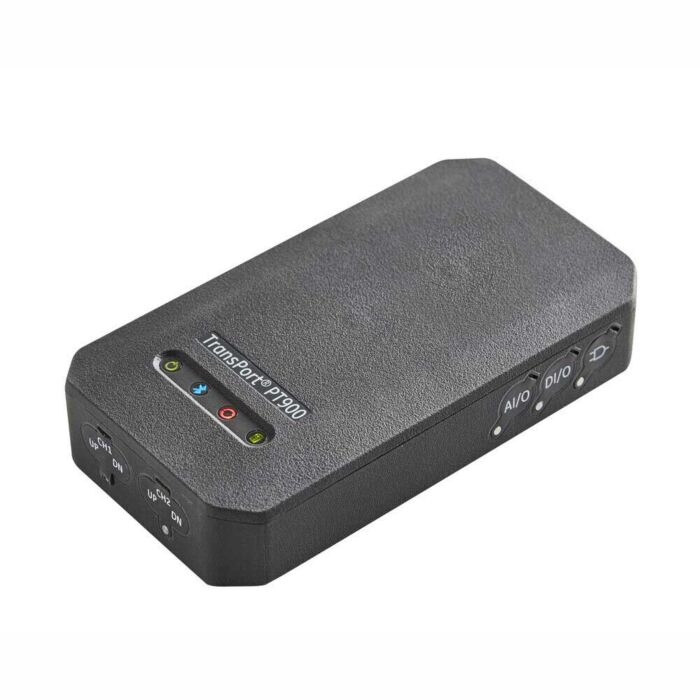

Used Panametrics PT900-1C Portable Liquid Ultrasonic Flow meter, 1-Channel
Order #: PT900-1C-USED
Mfg #: PT900-1C-USED
Request a Used Instrument Quote
Have a Question? Speak to a Transcat Expert: 800.264.4059
Transcat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support
Product Highlights
What's New About the TransPort PT900?
The PT900 maintains the same high performance as the PT878, but features a total redesign of the fl ow transmitter, clamping fixture and user interface. Key improvements include a redesigned fixture and a streamlined user interface on an Android tablet.
TransPort PT900 Makes Your Job So Much Easier
The PT900 has undergone the most involved voice of the user effort to date for GE's flow products. Several years of learning about how people use portable flow meters and what they want and need while making flow rate measurements have influenced the PT900's design. GE validated this learning and modified the design approach by sharing initial concepts and early prototypes with users. The result? The best portable flow meter needs to be versatile, easy to install, intuitive to use and capable of making reliable measurements even in the most difficult applications.
|
|
||
|
Operation and Performance Fluid TypesLiquids: acoustically conductive fluids, including most clean liquids and many liquids with small amounts of entrained solids or gas bubbles Flow MeasurementPatented Correlation Transit-TimeTM mode Pipe SizesStandard: 0.5 to 24 in. (15 to 600 mm) Optional: up to 300 in. (7500 mm) available upon request Pipe Wall ThicknessUp to 3 in. (76.2 mm) Pipe MaterialAll metals and most plastics Accuracy
Installation assumes a fully developed, symmetrical flow profile (typically 10 pipe diameters upstream and 5 pipe diameters downstream of straight pipe run). Final installation accuracy is a function of multiple factors including fluid, temperature range, pipe centricity among other factors. Repeatability±0.2% of reading Range (Bidirectional)0.1 to 40 ft/s (0.03 to 12.19 m/s) Response TimeUp to 2 Hz Measurement ParametersVelocity, Volume, Mass, Energy, Total Flow Channels1 channels |
| |
