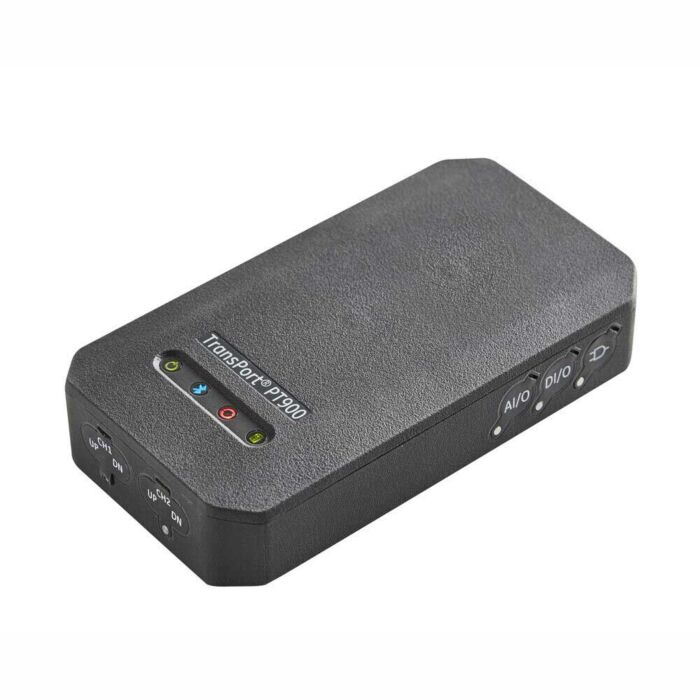

Panametrics PT900 Portable Ultrasonic Flow Meter for Liquids

Order #: PT9-SYS

Mfg #: PT9-SYS

Questions about availability or need help? Contact Us:

(800) 633-0561
$8,650.00

Panametrics PT900 Portable Ultrasonic Flow Meter for Liquids

Order #: PT9-SYS

Mfg #: PT9-SYS

$8,650.00

The TransPort PT900 is the latest generation of portable clamp-on ?ow meter from GE's Panametrics line of ultrasonic meters. It capitalizes on the ruggedness and superior performance of its predecessor, the TransPort PT878, but delivers a whole new level of intuitive and user-friendly capability based on today's technology.

Availability:
In stock

Choose Your Options:

This product is available for shipping to the United States, Canada, and Puerto Rico only.

What’s New About the TransPort PT900?

The PT900 maintains the same high performance as the PT878, but features a total redesign of the fl ow transmitter, clamping fixture and user interface. Key improvements include a redesigned fixture and a streamlined user interface on an Android tablet.

Why Buy the PT900 from Transcat? Inventory. Selection. Price.



Request a Quote



TransPort PT900 Makes Your Job So Much Easier

The PT900 has undergone the most involved voice of the user effort to date for GE’s flow products. Several years of learning about how people use portable flow meters and what they want and need while making flow rate measurements have influenced the PT900’s design. GE validated this learning and modified the design approach by sharing initial concepts and early prototypes with users. The result? The best portable flow meter needs to be versatile, easy to install, intuitive to use and capable of making reliable measurements even in the most difficult applications.

GE's Panametrics PT900 Flow Meter from Transcat

Operation and Performance

Fluid Types

Liquids: acoustically conductive fluids, including most clean liquids and many liquids with small amounts of entrained solids or gas bubbles

Flow Measurement

Patented Correlation Transit-TimeTM mode

Pipe Sizes

Standard: 0.5 to 24 in. (15 to 600 mm)

Optional: up to 300 in. (7500 mm) available upon request

Pipe Wall Thickness

Up to 3 in. (76.2 mm)

Pipe Material

All metals and most plastics

Accuracy

  • ±1% of reading (2in/50mm or greater pipe sizes)
  • ±2% of reading (0.5in/15mm to <2in/50mm pipe sizes)

Installation assumes a fully developed, symmetrical flow profile (typically 10 pipe diameters upstream and 5 pipe diameters downstream of straight pipe run). Final installation accuracy is a function of multiple factors including fluid, temperature range, pipe centricity among other factors.

Repeatability

±0.2% of reading

Range (Bidirectional)

0.1 to 40 ft/s (0.03 to 12.19 m/s)

Response Time

Up to 2 Hz

Measurement Parameters

Velocity, Volume, Mass, Energy, Total Flow

Channels

1 or 2 channels



Flow Transmitter

Enclosure

IP65 rating

Specifications

  • Weight: 3 lb (1.4 kg)
  • Size (h x w x md): 7.9 x 4.3 x 1.5 in. (200 x 109 x 38 mm)
  • Mounting: Soft strap around pipe or magnetic clamp

Analog Inputs

4-20 mA (qty 2)

Analog Output

4-20 mA (qty 1)

Digital Output

Pulse (Totalizer), Frequency, Alarm (qty 1)

Digital Communication

  • Modbus via RS485 Port
  • Bluetooth Wireless
  • Micro-USB Port

Battery

  • Type: Lithium Ion (high-energy, rechargeable)
  • Life (continuous operation): 18-20 hours
  • Life (power saver mode): >4 days
  • Charger: 100 to 240 VAC (50/60/Hz)
  • Charging Time: Up to 3 hours (from 0% to 100%)

Operating Temperature

-20 to 55°C (-4 to 131°F)

Electronics Classifications

  • CE (EMC Directive) IEC 61326-1:2013, IEC 61326-2-3:2013, LVD 2006/95/EC, EN 61010-1 2010
  • ANSI/UL STD. 61010-1, CAN/CSA STD. C22.2 NO. 61010-1
  • WEEE Compliant (Directive 2012/19/EU)
  • RoHS Compliant (Directive 2002/95/EC)
GE's Panametrics PT900 Flow Meter APP Tablet Display   GE's Panametrics PT900 Measurement Screens

User Interface

Display

Tablet with Android operating system (version 4.4 or greater), LCD capacitive touchscreen, 800 x 1280 resolution

Dimensions

  • 7 in. Tablet: 7.75 x 4.75 x 0.75 in. (196 x 120 x 19 mm) typical
  • 8 in. Tablet: 8.75 x 6.00 x 0.75 in. (222 x 152 x 19 mm) typical

Battery Life

>12 hours of continuous use

Battery Charger

100 to 250 VAC (50/60 Hz)

Operating Temperature

0 to 50°C (32 to 122°F)

Communication with Flow Transmitter

Bluetooth



Software Application (PT900 APP)

Intuitive, Swipe Screen Interface

  • Colorful, icon-driven design
  • Tutorial-style programming
  • Site parameter presets
  • Multiple display options
  • Extensive online help

Languages

English, Arabic, Chinese (Simplified), Dutch, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish, Swedish, Turkish

Installing the PT900 APP

Obtain the PT900 APP from:

  • File provided on SD card
  • Free download from Google Play
  • Free download from GE website
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
  1. GE Panametrics PT900 PT9-SD SD card including last PT900 tablet application and manuals
    Panametrics PT9-SD SD card including PT900 tablet app and manuals
    SD card including PT900 tablet app and manuals

    Order #: PT9-SD

    Mfg #: PT9-SD

    Availability:
    This item is no longer available. Please contact Transcat Customer Service for assistance with alternative product suggestions to meet your exact needs.
  2. GE Panametrics PT9-EXT Pair 100 feet extension cable (for C-RR transducers only)
    Panametrics PT9-EXT Pair 100 feet extension cable (for C-RR transducers only)
    Pair 100 feet extension cable (for C-RR transducers only)

    Order #: PT9-EXT

    Mfg #: PT9-EXT

    Availability:
    In stock
    $420.00
  3. GE Panametrics PT9-DIO
    Panametrics PT9-DIO Digital and discrete input & out cable, PT900 transmitter
    Digital and discrete input & out cable, PT900 transmitter

    Order #: PT9-DIO

    Mfg #: PT9-DIO

    Availability:
    This item is no longer available. Please contact Transcat Customer Service for assistance with alternative product suggestions to meet your exact needs.
  4. GE Panametrics PT900 PT9-TG Pipe wall thickness gauge, compact design, easy operation and programming
    Panametrics PT9 Pipe wall thickness gauge
    Pipe wall thickness gauge

    Order #: PT9-TG

    Mfg #: PT9-TG

    Availability: Ships in 3-4 weeks
    $2,800.00
  5. GE Panametrics PT900 PT9-SPARE Replacement PT900 transmitter with mounting straps
    Panametrics PT9-SPARE Replacement PT900 transmitter with mounting straps
    Replacement PT900 transmitter with mounting straps

    Order #: PT9-SPARE

    Mfg #: PT9-SPARE

    Availability: Ships in 3-4 weeks
    $8,850.00
  6. GE Panametrics Android based touch screen tablet & case for PT900
    Panametrics PT900 Android based touch screen tablet & case for PT900
    Android based touch screen tablet & case for PT900

    Order #: PT9-TABLET-01

    Mfg #: PT9-TABLET-01

    Availability:
    In stock
    $830.00
  7. GE Panametrics PT900 PT9-BAT Spare rechargeable battery for the PT900
    Panametrics PT900 BATTERY Spare Rechargable Battery PT900 Transmitter
    Spare Rechargable Battery PT900 Transmitter

    Order #: PT9-BAT

    Mfg #: PT9-BAT

    Availability:
    In stock
    $600.00
  8. GE Panametrics PT900 PT9-POWERADAPTER Power adapter from line power to PT900 transmitter
    Panametrics PT9 Power adapter from line power to PT900 transmitter
    Power adapter from line power to PT900 transmitter

    Order #: PT9-POWERADAPTER

    Mfg #: PT9-POWERADAPTER

    Availability:
    This item is no longer available. Please contact Transcat Customer Service for assistance with alternative product suggestions to meet your exact needs.

Accuracy±1% of reading (2in/50mm or greater pipe sizes)
±2% of reading (0.5in/15mm to <2in/50mm pipe sizes)
Installation assumes a fully developed, symmetrical flow profi le (typically 10 pipe diameters upstream and 5 pipe diameters downstream of straight pipe run). Final installation accuracy is a function of multiple factors including fl uid, temperature range, pipe centricity among other factors.

TransPort PT900 Specifications
Operation and Performance
Fluid Types Liquids: acoustically conductive fl uids, including most clean liquids and many liquids with small amounts of entrained solids or gas bubbles
Flow Measurement Patented Correlation Transit-Time™ mode
Pipe Sizes Standard: 0.5 to 24 in. (15 to 600 mm)
Optional: up to 300 in. (7500 mm) available upon request
Pipe Wall Thickness Up to 3 in. (76.2 mm)
Pipe Material All metals and most plastics
Repeatability ±0.2% of reading
Range (Bidirectional) 0.1 to 40 ft/s (0.03 to 12.19 m/s)
Response Time Up to 2 Hz
Measurement Parameters Velocity, Volume, Mass, Energy, Total Flow
Channels 1 or 2 channels
Flow Transmitter
Enclosure IP65 rating
Specifications
  • Weight: 3 lb (1.4 kg)
  • Size (h x w x md): 7.9 x 4.3 x 1.5 in. (200 x 109 x 38 mm)
  • Mounting: Soft strap around pipe or magnetic clamp±0.45°C /±0.81°F
Analog Inputs 4-20 mA (qty 2)
Analog Output 4-20 mA (qty 1)
Digital Output Pulse (Totalizer), Frequency, Alarm (qty 1)
Digital Communication
  • Modbus via RS485 Port
  • Bluetooth® Wireless
  • Micro-USB Port
Battery Type: Lithium Ion (high-energy, rechargeable)
Life (continuous operation): 18-20 hours
Life (power saver mode): >4 days
Charger: 100 to 240 VAC (50/60/Hz)
Charging Time: Up to 3 hours (from 0% to 100%)
Operating Temperature -20 to 55°C (-4 to 131°F)
Electronics Classifi cations
  • CE (EMC Directive) IEC 61326-1:2013,
    IEC 61326-2-3:2013, LVD 2006/95/EC,
    EN 61010-1 2010
  • ANSI/UL STD. 61010-1, CAN/CSA STD. C22.2
    NO. 61010-1
  • WEEE Compliant (Directive 2012/19/EU)
  • RoHS Compliant (Directive 2002/95/EC)
User Interface
Display Tablet with Android operating system (version 4.4 or greater), LCD capacitive touchscreen, 800 x 1280 resolution
Dimensions
  • 7 in. Tablet: 7.75 x 4.75 x 0.75 in. (196 x 120 x 19 mm) typical
  • 8 in. Tablet: 8.75 x 6.00 x 0.75 in. (222 x 152 x 19 mm) typical
Battery Life >12 hours of continuous use
Battery Charger 100 to 250 VAC (50/60 Hz)
Operating Temperature 0 to 50°C (32 to 122°F)
Communication with Flow Transmitter Bluetooth®
Software Application (PT900 APP)
Intuitive, Swipe Screen Interface
  • Colorful, icon-driven design
  • Tutorial-style programming
  • Site parameter presets
  • Multiple display options
  • Extensive online help
Installing the PT900 APP Obtain the PT900 APP from:
  • File provided on SD card
  • Free download from Google Play
  • Free download from GE website
Languages English, Arabic, Chinese (Simplifi ed), Dutch, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish, Swedish, Turkish
Clamp-On Transducers
Temperature Range*
  • Standard: -40 to 302°F (-40 to 150°C)
  • Optional: -328 to 752°F (-200 to 400°C)
*See individual transducer model specifi cations for exact temperature range
Mounting
  • New PT clamping fi xture for pipes ≥2 in. (50 mm)
  • CF-LP clamping fi xture for 1/2 in. (15 mm) to 2 in. (50 mm) pipes
PT9 Transducer Cables
  • Standard Length: 25 ft (8 m) of RG316 coaxial cable
  • Maximum Length: 100 ft (30 m) of RG316 coaxial cable
  • Temperature Range: -40° to 302°F (-40° to 150&#1`76;C)
