Ralston Instruments NPAK Nitropak, LC20 Pressure Gauge, 3KPSI Gauge Adapter, 2-Hoses, 2-Connections
Nitropak,LC20 Press.Gauge,3KPSI Gauge adapter,2-Hoses,2-Conn.

Order #: NPAK-KIT2-GR

Mfg #: NPAK-KIT2-GR

Questions about availability or need help? Contact Us:

(800) 633-0561
$6,257.63

Ralston Instruments NPAK Nitropak, LC20 Pressure Gauge, 3KPSI Gauge Adapter, 2-Hoses, 2-Connections

Nitropak,LC20 Press.Gauge,3KPSI Gauge adapter,2-Hoses,2-Conn.

Order #: NPAK-KIT2-GR

Mfg #: NPAK-KIT2-GR

New
Loading...
Print Email Save Item Compare
$6,257.63
Register to view exclusive member pricing
Availability: Ships in 3-4 weeks

 Ships Free Over $100

Product Highlights

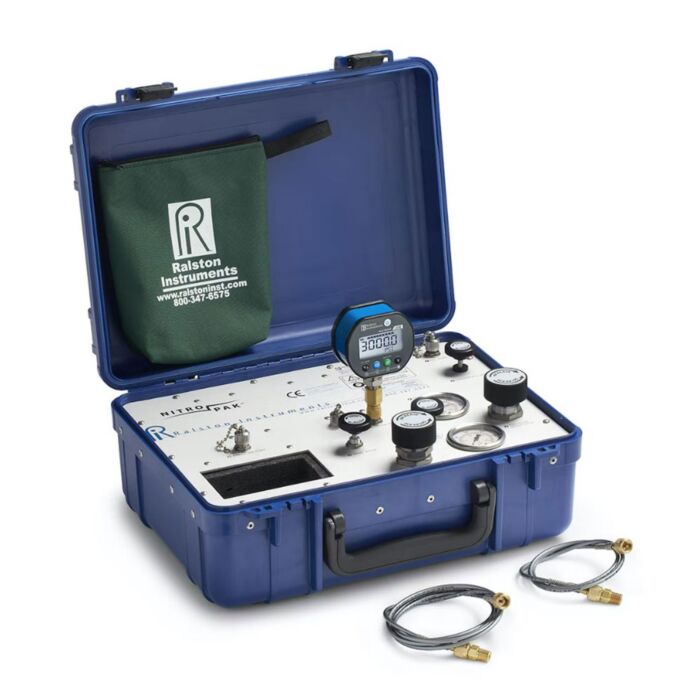

This portable nitrogen pressure calibration kit provides a high pressure nitrogen source for calibrating differential and static pressure instrumentation using an external pressure calibrator. It includes an on-board storage cylinder, nitrogen pressure regulator and a precision volume controller for extremely fast and accurate pressure control. NitroPak users can easily reach each test point without pumping or leaky connections, up to 3,000 PSI/ 210 bar.

Compressed Gas on Hand

Fill it at the shop and have enough compressed gas for a day or more. It is easy to fill with the included hoses. Simply pressurize it until it is full, disconnect the hose, and your nitrogen pressure testing equipment is ready to go.

Organized and Easily Portable

Reminiscent of Wally Box pressure calibrators, the NitroPak includes storage for hoses, adapters and a pressure gauge. There is a bag to hold hoses and adapters and a pocket to hold a pressure gauge as well.

Excellent for Hazardous Locations

Because it has no electronics in it there are no issues with using it in North American Class 1, Division 1 or 2 locations, ATEX or IECEX Zone 0, 1 or 2 locations. It’s an ideal compressed gas solution in any environment.

Easy to Carry in Remote Locations

Great for remote locations. With a carbon fiber cylinder and ABS plastic case with ergonomic handle, the NitroPak is the nitrogen pressure test kit you can take with you wherever you need to go, from towers to areas far off road.

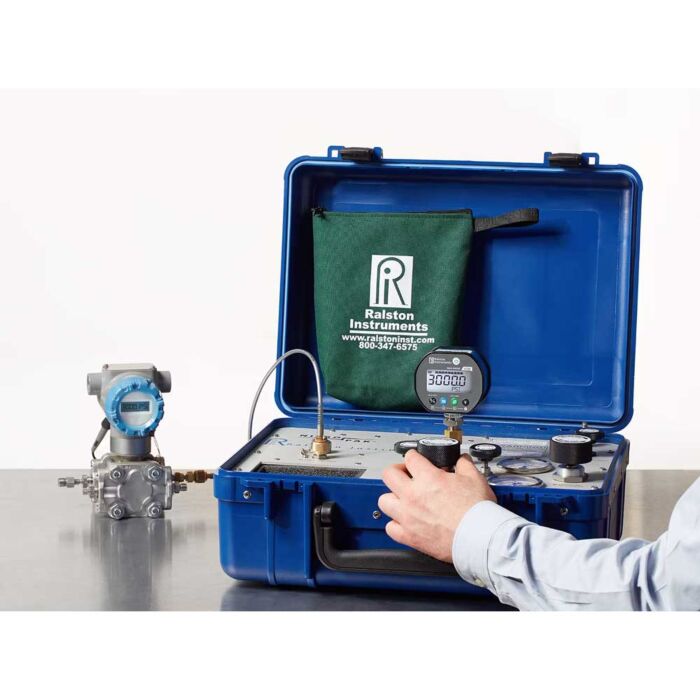

Allows you to Conduct both Differential and Static Calibrations in the Field

Use the fine adjust piston alone to create pressure up to 400 inH20 (400 mbar). Use the compressed gas from the internal cylinder to go to pressures from 400 inH20 to 3000 psi (200 bar).

The Ralston NitroPak takes the hard work out of field-based calibrations and provides an all-in-one, easy to use, pressure control solution.

  • Pressure Source: Nitropak Portable Nitrogen Source
  • Pressure Reference: LC20 pressure gauge, 3000 psi / 20 MPa, 1/4" Male NPT bottom connection
  • Reference Connection: 1/4" female NPT x female Quick-test, no check-valve, brass
  • Process Connection: 1/4" male NPT x male Quick-test, no check-valve, brass
  • Hose 1: Quick-test 6900 psi hose, brass hose ends, 6 ft (1.83 m) long
  • Hose 2: Quick-test 6900 psi hose, brass hose ends, 3 ft (92 cm) long
  • Materials: ABS Plastic, Aluminum, Anodized Aluminum, Brass, Plated Steel, Stainless Steel, Zippered Nylon with Velcro
  • Seal Materials: Buna-N, Delrin, Teflon
  • Max Pressure: 3000 PSI / 200 bar / 20 MPa
  • Max Vacuum: 10 InHg / 33.9 kPa
  • Min Operating Temperature: 0 °F / -18 °C
  • Max Operating Temperature: 130 °F / 54 °C
  • Pressure Source: NPAK
    • Max Pressure: 3000 PSI / 200 bar / 20 MPa
    • Max Vacuum: 10 InHg / 33.9 kPa
    • Min Operating Temperature: 0 °F / -18 °C
    • Max Operating Temperature: 140 °F / 60 °C
    • Pressure Media: Nitrogen, inert gas
    • Fine Adjustment Resolution: .0005 PSI / 0.00 mbar / 0.00 kPa
    • Fill Vent Valves: soft seated construction
    • Mechanical Rotation: 42 turns (pressure balanced)
    • Cylinder Capacity (compressed gas): 15.20 Cu Ft
    • Overpressure Relief: 3300 PSI / 230 bar / 23 MPa
    • Internal Connections: 1/8 in tubing (316 stainless steel)
    • Harmonized Code: 9032.81.0060
    • Country of origin: USA
    • Materials: Anodized Aluminum, Brass, Powder Coated Steel, Stainless Steel, Zippered Nylon with Velcro, Delrin
    • Inlet Port: Male Quick-test with cap and chain
    • Media Compatibility: Air, Inert Gas, Natural Gas
    • Outlet Port: Male Quick-test with cap and chain
    • Seal Materials: Buna-N, Delrin, Teflon
    • Cylinder Capacity (water): 122 Cu In

Each Unit Includes

  • LC20 pressure gauge, 3000 psi / 20 MPa, 1/4" Male NPT bottom connection Pressure Reference LC20-GR2M-00-00
  • 1/4" female NPT x female Quick-test, no check-valve, brass Reference Connection QTHA-2FBA
  • 1/4" male NPT x male Quick-test, no check-valve, brass(Qty 2) Process Connection QTHA-2MB0
  • Quick-test 6900 psi hose, brass hose ends, 6 ft (1.83 m) long Hose 1 QTQT-HOS-6ft
  • Quick-test 6900 psi hose, brass hose ends, 3 ft (92 cm) long Hose 2 QTQT-HOS-3ft
  • USB-A to Micro USB-B cable, 2m long D-000040
  • ISO 17025:2017 Accredited Calibration certificate for Field Gauge models LC10, LC20, LC30 SERV-0026
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
Accessories
  1. Ralston Instruments NPAK-STRP QTVC Padded Adjustable Shoulder Strap
    Ralston Instruments NPAK-STRP QTVC Padded Adjustable Shoulder Strap
    QTVC Padded Adjustable Shoulder Strap

    Order #: NPAK-STRP

    Mfg #: NPAK-STRP

    Availability: Ships in 3-4 weeks
    $92.20
  2. Ralston Instruments NPAK-TRS0 Liquid trap with male QT top port, Female QT bottom port
    Ralston Instruments NPAK-TRS0 Liquid trap with male QT top port, Female QT bottom port
    Liquid trap with male QT top port;Female QT btm port

    Order #: NPAK-TRS0

    Mfg #: NPAK-TRS0

    Availability: Ships in 3-4 weeks
    $373.82
  3. Ralston Instruments NPAK-0002
    Ralston Instruments NPAK-0002 NPAK Inlet Check Valve Assembly, Stainless Steel
    NPAK Inlet Check Valve Assembly, Stainless Steel

    Order #: NPAK-0002

    Mfg #: NPAK-0002

    Availability: Ships in 3-4 weeks
    $176.48
  4. Ralston Instruments NPAK-0004
    Ralston Instruments NPAK-0004 NPAK Over Pressure burst disk (3000 psi/200 Pressure range)
    NPAK Overpressure burst disk (3000 psi / 200 pressure range)

    Order #: NPAK-0004

    Mfg #: NPAK-0004

    Availability: Ships in 3-4 weeks
    $120.10
  5. Ralston Instruments NPAK-0006 NPAK System Fill Valve Assembly, Knob, Panel Nut
    Ralston Instruments NPAK-0006 NPAK System Fill Valve Assembly, Knob, Panel Nut
    NPAK System Fill Valve Assembly, Knob, Panel Nut

    Order #: NPAK-0006

    Mfg #: NPAK-0006

    Availability: Ships in 3-4 weeks
    $86.08
  6. Ralston Instruments NPAK-0016
    Ralston Instruments NPAK-0016 Dual Scale Pressure Gauge, 3000 PSI
    Dual Scale Pressure Gauge 3000 PSI

    Order #: NPAK-0016

    Mfg #: NPAK-0016

    Availability: Ships in 3-4 weeks
    $148.55
  7. Ralston Instruments NPAK-HSBG-VC NPAK Zippered Nylon Bag for Hoses & Adapters in Nitropak
    Ralston Instruments NPAK-HSBG-VC NPAK Zippered Nylon Bag for Hoses & Adapters in Nitropak
    NPAK Zippered Nylon Bag for Hoses & Adapters in Nitropak

    Order #: NPAK-HSBG-VC

    Mfg #: NPAK-HSBG-VC

    Availability:
    In stock
    $58.62
  8. NPAK-0001
    Ralston Instruments NPAK-0001 NPAK Tank Valve Block, Aluminum
    NPAK Tank Valve Block,Aluminum

    Order #: NPAK-0001

    Mfg #: NPAK-0001

    Availability: Ships in 3-4 weeks
    $96.97
  9. Ralston Instruments NPAK-0008 NPAK Supply (#6) & Vent (#8) Valve Assembly, Knob & Panel Nut
    Ralston Instruments NPAK-0008 NPAK Supply (#6) & Vent (#8) Valve Assembly, Knob & Panel Nut
    NPAK Supply(#6) & Vent(#8)Valve Assembly,Knob & Panel Nut

    Order #: NPAK-0008

    Mfg #: NPAK-0008

    Availability: Ships in 3-4 weeks
    $98.33
  10. Ralston Instruments NPAK-0010
    Ralston Instruments NPAK-0010 NPAK Fine Adjust Assembly with o Piston, Knob & Panel Nut (for #7)
    NPAK Fine Adjust Assembly w/o Piston,Knob & Panel Nut(for #7)

    Order #: NPAK-0010

    Mfg #: NPAK-0010

    Availability: Ships in 3-4 weeks
    $379.69
  11. Ralston Instruments NPAK-0012
    Ralston Instruments NPAK-0012 NPAK Fine Adjust Piston only (for#7)
    NPAK Fine Adjust Piston only (for#7)

    Order #: NPAK-0012

    Mfg #: NPAK-0012

    Availability: Ships in 3-4 weeks
    $73.89
  12. Ralston Instruments NPAK-0014
    Ralston Instruments NPAK-0014 NPAK Valve Block (for #6 & #8)
    NPAK Valve Block(for #6 & #8)

    Order #: NPAK-0014

    Mfg #: NPAK-0014

    Availability: Ships in 3-4 weeks
    $384.35
  13. Ralston Instruments NPAK-0020 NPAK Top Portion of fine Adjust Assembly with o Piston (for #7)
    Ralston Instruments NPAK-0020 NPAK Top Portion of fine Adjust Assembly with o Piston (for #7)
    NPAK Top Portion of fine Adjust Assembly w/o Piston(for #7)

    Order #: NPAK-0020

    Mfg #: NPAK-0020

    Availability: Ships in 3-4 weeks
    $294.74
  14. Ralston Instruments NPAK-0030
    Ralston Instruments NPAK-0030 NPAK Tank Clamps, Bracket & Attachment Bolts
    NPAK Tank Clamps,Bracket & Attachment Bolts

    Order #: NPAK-0030

    Mfg #: NPAK-0030

    Availability: Ships in 3-4 weeks
    $68.80
  15. Ralston Instruments NPAK-0035
    Ralston Instruments NPAK-0035 NPAK Nitrogen Cylinder (15.2cuft/430l @ 3000PSI)
    NPAK Nitrogen Cylinder (15.2cuft/430l @ 3000PSI)

    Order #: NPAK-0035

    Mfg #: NPAK-0035

    Availability: Ships in 3-4 weeks
    $931.43
  16. Ralston Instruments NPAK-0040
    Ralston Instruments NPAK-0040 NPAK Replacement Gas Regulator (for#3)
    NPAK Replacement Gas Regulator (for#3)

    Order #: NPAK-0040

    Mfg #: NPAK-0040

    Availability: Ships in 3-4 weeks
    $1,089.20
  17. Ralston Instruments NPAK-0045
    Ralston Instruments NPAK-0045 NPAK Tube Connecting Tank Fill to Regulator with Tube Fittings
    NPAK Tube Connecting Tank Fill to Regulator w/Tube Fittings

    Order #: NPAK-0045

    Mfg #: NPAK-0045

    Availability: Ships in 3-4 weeks
    $95.59
  18. Ralston Instruments NPAK-0050
    Ralston Instruments NPAK-0050 NPAK Tube Connecting Tank Fill Valve to "Tank Pressure" Gauge
    NPAK Tube Connecting Tank Fill Valve to "Tank Pressure"Gauge

    Order #: NPAK-0050

    Mfg #: NPAK-0050

    Availability: Ships in 3-4 weeks
    $97.95
  19. Ralston Instruments NPAK-0055
    Ralston Instruments NPAK-0055 NPAK Tube Connecting Regulator to Fine Adjust Vernier Assembly
    NPAK Tube Connecting Regulator to Fine Adjust Vernier Assembly

    Order #: NPAK-0055

    Mfg #: NPAK-0055

    Availability: Ships in 3-4 weeks
    $109.58
  20. Ralston Instruments NPAK-0058
    Ralston Instruments NPAK-0058 NPAK Tube Connecting Regulator to "Regulated Pressure" Gauge
    NPAK Tube Connecting Regulator to"Regulated Pressure"Gauge

    Order #: NPAK-0058

    Mfg #: NPAK-0058

    Availability: Ships in 3-4 weeks
    $109.58
  21. Ralston Instruments NPAK-0060
    Ralston Instruments NPAK-0060 NPAK Tube connecting to top of Fine Adjust Vernier, Tube Fittings
    NPAK Tube connecting to top of Fine Adjust Vernier,Tube Fittgs

    Order #: NPAK-0060

    Mfg #: NPAK-0060

    Availability: Ships in 3-4 weeks
    $91.52
  22. Ralston Instruments NPAK-0065
    Ralston Instruments NPAK-0065 NPAK Tube connecting to bottom of Fine Adjust Vernier
    NPAK Tube connecting to bottom of Fine Adjust Vernier

    Order #: NPAK-0065

    Mfg #: NPAK-0065

    Availability: Ships in 3-4 weeks
    $101.93
  23. Ralston Instruments NPAK-0070
    Ralston Instruments NPAK-0070 NPAK Outlet Port Assembly, Male Quick-test with Cap & Chain, Stainless Steel
    NPAK Outlet Port Assembly,Male Quick-test w/Cap & Chain,SS

    Order #: NPAK-0070

    Mfg #: NPAK-0070

    Availability: Ships in 3-4 weeks
    $107.48
  24. Ralston Instruments NPAK-0075
    Ralston Instruments NPAK-0075 NPAK Outlet Port Assembly, Male Quick-test with Cap & Chain
    NPAK Outlet Port Assembly,Male Quick-test w/Cap & Chain

    Order #: NPAK-0075

    Mfg #: NPAK-0075

    Availability: Ships in 3-4 weeks
    $117.23
  25. Ralston Instruments NPAK-0080
    Ralston Instruments NPAK-0080 NPAK Gauge Compartment with Foam Liner
    NPAK Gauge Compartment w/Foam Liner

    Order #: NPAK-0080

    Mfg #: NPAK-0080

    Availability: Ships in 3-4 weeks
    $116.69
  26. Ralston Instruments NPAK-0090
    Ralston Instruments NPAK-0090 NPAK Replacement Case with Reinforced Steel Panel Ring
    NPAK Replacement Case w/Reinforced Steel Panel Ring

    Order #: NPAK-0090

    Mfg #: NPAK-0090

    Availability: Ships in 3-4 weeks
    $822.12
  27. Ralston Instruments NPAK-TRS0-2MS0-2FSA
    Ralston Instruments NPAK Liquid Trap with (2) Quick-test Ports, (1) 1/4" NPTM, (1) 1/4" NPTF
    Liquid Trap w/(2)Quick-test Ports,(1)1/4"NPTM,(1)1/4"NPTF

    Order #: NPAK-TRS0-2MS0-2FSA

    Mfg #: NPAK-TRS0-2MS0-2FSA

    Availability: Ships in 3-4 weeks
    $386.67
  28. Ralston Instruments NPAK-0085
    Ralston Instruments NPAK-0085 NPAK Replacement Control Panel
    NPAK Replacement Control Panel

    Order #: NPAK-0085

    Mfg #: NPAK-0085

    Availability: Ships in 3-4 weeks
    $430.67
Specifications
Country of origin USA
Hose 1 Quick-test Hose, Brass ends, 6ft / 1.9m long
Hose 2 Quick-test Hose, Brass ends, 3ft / 0.9m long
Pressure Reference Digital pressure gauge, 1000 PSIG Pressure
Process Connection 1/4" Male NPT
Reference Connection 1/4" Female NPT
Materials ABS Plastic, Aluminum, Anodized Aluminum, Brass, Plated Steel, Stainless Steel, Zippered Nylon with Velcro
Seal Materials Buna-N, Delrin, Teflon
Max Pressure 3000 PSI / 200 bar / 20 MPa
Max Vacuum 10 InHg / 33.9 kPa
Min Operating Temperature 0 °F / -18 °C
Max Operating Temperature 130 °F / 54 °C
