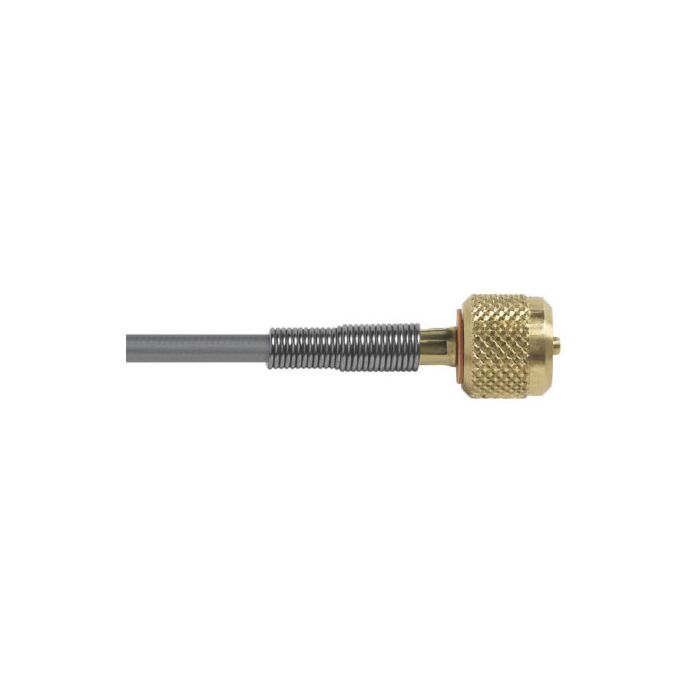

Ralston Instruments QTQT-HOS-10FT Quick-test 6900PSI Hose, Brass Hose Ends, 10'

Product Highlights

• Low volume reduces the pumping effort or compressed gas usage in pressure calibration
• No thread sealant required – connect to adapters without wrenches, thread sealant, or thread tape
• Bubble tight connections to 6900 PSI (475 bar) with no moving parts reduces maintenance to almost zero
• Hose is hard to break and very flexible
• Adapt from hose to virtually any device under test with only one connection
• Silver color dramatically reduces the effect that changing temperature has on pressure stability
• A corrosion resistant strain-relief on each hose end reduces wear and dramatically increases hose life
• Hose is pin-pricked for use in Natural Gas applications
• Made in U.S.A.
• Weight: 3.86 oz / 110 grams
• Width: 0.69 in / 18 mm
• Height: 0.69 in / 18 mm
• Burst Pressure: 27000 PSI / 1860 bar / 185 MPa
• Color: Silver
• Fluid Media: Air,Inert Gas,Natural Gas,Petroleum Based Oil, Water
• Hose Length: 10 ft / 3.05 m
• Inner Diameter: 0.08 In / 3.00 mm
• Length: 10 ft / 4.00 m
• Materials: Brass
• Max Operating Temperature: 140 °F / 60 °C
• Max Pressure: 6900 PSI / 475 bar / 48 MPa
• Max Vacuum: -30 InHg / -101.6 kPa
• Media Compatibility: Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
• Min Operating Temperature: -40 °F / -40 °C
• Minimum Bend Radius: 1 In / 26 mm
• Outer Diameter: 0.2 In / 6.00 mm
• Type: QT

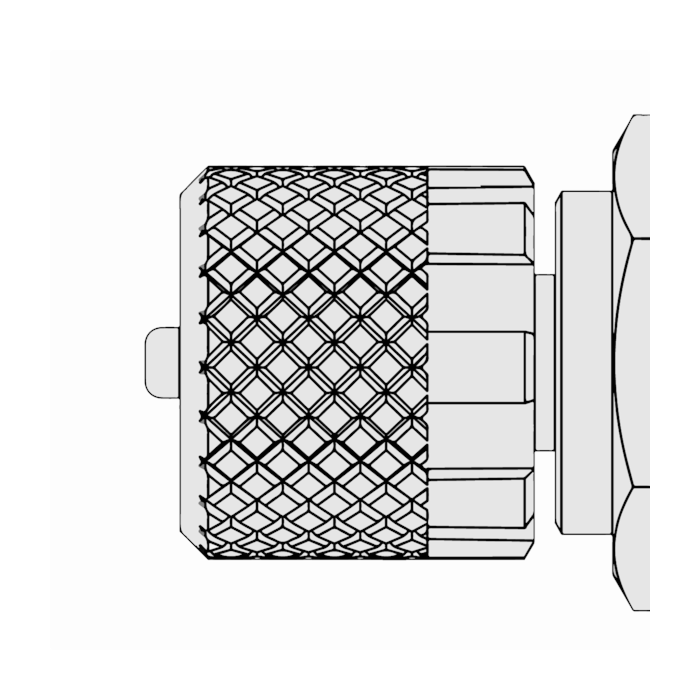

• Hose End 1: Female Quick-test, brass
• Hose End 2: Female Quick-test, brass
