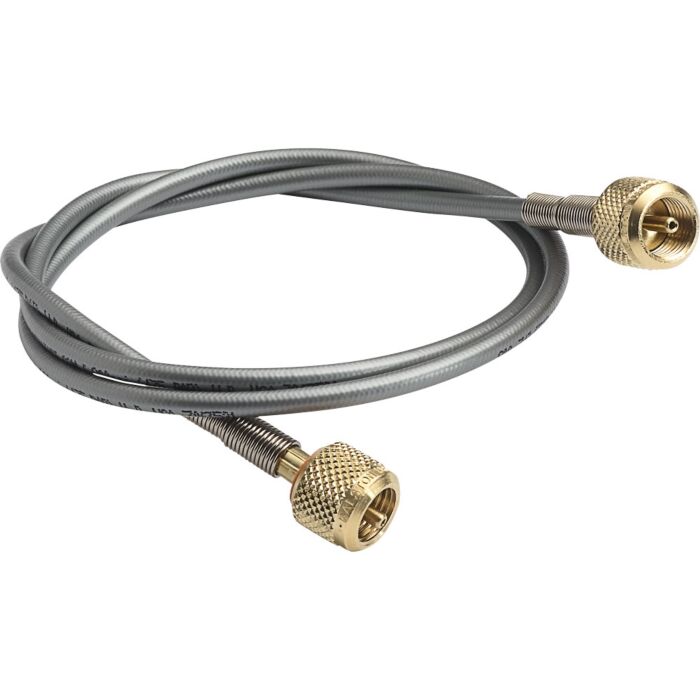

Ralston Instruments QTQT-HOS-2FT

Product Highlights

Microbore hoses that provide a very quick, low volume, high pressure way of connecting to any pressure instrumentation, hand pump, calibration source or device under test

• Low volume reduces the pumping effort or compressed gas usage in pressure calibration
• No thread sealant required – connect to adapters without wrenches, thread sealant or thread tape
• Bubble tight connections to 6900 psi (475 bar) with no moving parts reduces maintenance to almost zero
• Hose is hard to break and very flexible
• Adapt from hose to virtually any device under test with only one connection
• Silver color dramatically reduces the effect that changing temperature has on pressure stability
• A corrosion resistant strain-relief on each hose end reduces wear and dramatically increases hose life
• Hose is excellent for inert gas applications (except Helium and Argon)
• Hose is pin-pricked for use in Natural Gas applications
• Made in U.S.A.
• Length: 2 ft
• Pressure Range: 0 to 6900 psi (0 to 475 bar)
• Burst Pressure: 27000 psi (1,860 bar)
• End 1: Female Quick-test, brass
• End 2: Female Quick-test, brass
• Temperature range: -40 to 140 °F (-40 to 60 °C)
• Outer Diameter: 0.2 in (5.1 mm)
• Inner Diameter: 0.08 in (2.0 mm)
• Minimum Bend Radius: 1 in (25.4 mm)
• Color: Silver
• Construction: Polyamide core tube, High tensile synthetic fiber and polyamide outer cover
• End materials: Brass
• Fluid Media: Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
