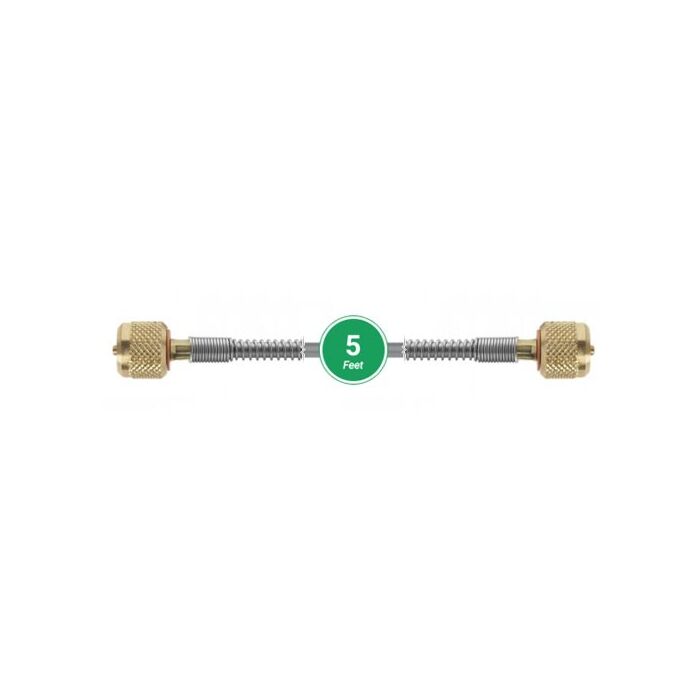

Ralston Instruments QTQT-HOS-5FT

Product Highlights

• Low volume reduces the pumping effort or compressed gas usage in pressure calibration
• No thread sealant required – connect adapters to without wrenches, thread sealant or thread tape
• Bubble tight connections to 6900 psi (475 bar) with no moving parts
• No moving parts reduces maintenance to almost zero
• Hose is hard to break and very flexible
• Adapt from hose to virtually any device under test with only one connection
• Silver color dramatically reduces the effect that changing temperature has on pressure stability
• A strain-relief on each hose end reduces wear and dramatically increases hose life
• Excellent for short term sampling of natural gas for gas chromatography
• Made in U.S.A.
• Length 5 ft
• Pressure Range 0 to 6900 psi (0 to 475 bar)
• Burst Pressure 27000 psi (1,860 bar)
• End 1 Female Quick-test, brass
• End 2 Female Quick-test, brass
• Temperature range -40 to 140 °F (-40 to 60 °C)
• Outer Diameter 0.2 in (5.1 mm)
• Inner Diameter 0.08 in (2.0 mm)
• Minimum Bend Radius 1 in (25.4 mm)
• Color Silver
• Construction Polyamide core tube, High tensile synthetic fiber and polyamide outer cover
• End materials Brass
• Fluid Media Water, Petroleum Based Oil, Air, Inert Gas
