Espec SU-241 for Rent, Temperature Chamber, -40C to 150C, 0.8 Cu Ft

Product Highlights

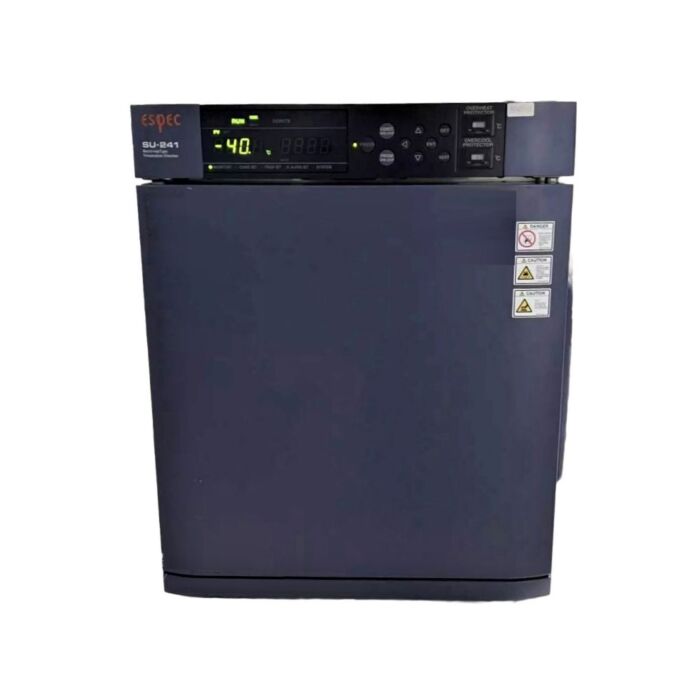

The Espec SU-241 Temperature Chamber is part of the Espec Bench-top Type Temperature Chamber Series. The SU-241 achieves superb performance in a compact size, and attains temperatures as low as 40 ℃, with a capacity of 22.5 L. The SU-241 provides high performance and quality features with new capabilities for integration with our information network system, 〈E-PILOT 21〉. It is useful for centralized control and data processing, as well as operating chamber control and specimen measurement at the same time. The SU-241 can also be used for MIL-STD-810 testing.

The Espec SU-241 Temperature Chamber offers the following features and specifications:

• Temperature range: -40C to 150C, +/-0.3C fluctuation to 100C
• Interior volume: 0.8 cu. ft.
• Interior dimensions: 11.8"W x 9.8"D x 11.8"H (30 x 25 x 30 cm) excluding protrusions
• Exterior dimensions: 17.3"W x 28.7"D x 24.8"H (44 x 73 x 63 cm)
• Electric service: 115 VAC +/-5% 1∅ 60Hz

Espec Controller:

• Simple key input of temperature, (humidity), and time
• Programmable operation with up to nine steps and 99 repeat loops
• RS-485 communication port is standard

Chamber Design Features:

• High performance with a space-saving footprint
• One 1" diameter cable port on the right and left side
• One adjustable stainless steel shelf
• Temperature & humidity output terminals

Safety Features:

• Overheat protector
• Specimen power supply control terminal
• Main power circuit breaker

• User-friendly touch-screen operation
• Three different 'constant mode' settings can be saved for single-setting operation
• Store 40 cycling programs, with up to 99 steps each
• Programs may be written on a PC and uploaded via USB
• The trend-graph display shows a record of setpoints and actual values
• Operation data can be downloaded as needed, or continually, to USB
• System alarms are stored in memory for historical review
• Built-in timer functions allow the chamber to be started or shut down automatically
• Pattern Manager Lite PC software for program editing and datalog viewing/exporting, to support USB functionality
• Also included is Web Manager remote monitor/control via Ethernet/browser
