Unmatched speed for Cat 6A, 8, Class FA, I/II and all current standards
ProjX system manages job requirements and progress from set-up to systems acceptance, making sure all tests are completed correctly
Taptive user interface simplifies set-up, and eliminates errors
Analyze test results and create professional test reports using LinkWare management software
Graphically displays the source of failures including crosstalk, return loss and shield faults for faster troubleshooting
Intertek Verified to TIA Level 2G the most stringent accuracy requirement
Endorsed by cabling vendors worldwide
Built in Alien Crosstalk testing capability
Compatible with Linkware Live. Linkware Live enables to easily track job progress, get real-time access to test results to quickly fix problems in the field, and easily transfer and consolidate test results from the tester to LinkWare PC Cable Test Management Software.

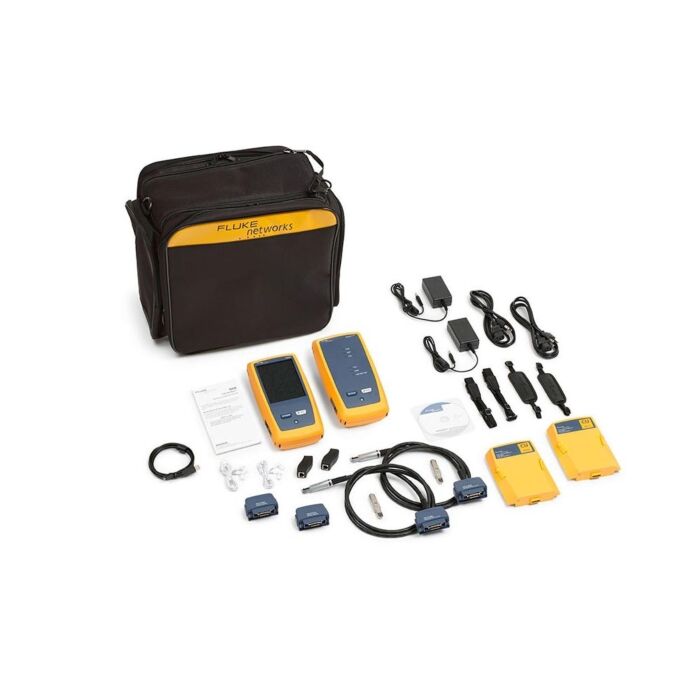

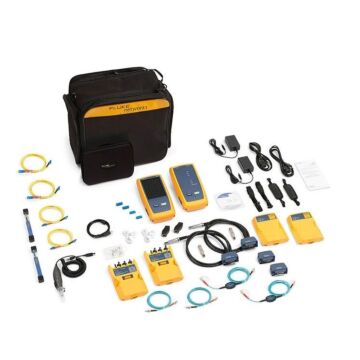

Each Unit Includes
1 Versiv Mainframe & Remote
(2) DSX-5000 CableAnalyzer Modules
Set of Cat 6A/Class EA Permanent Link Adapters
Set of Cat 6A/Class EA Channel Adapters
(2) Headsets
(2) HandStrap
(2) Shoulder Straps, Carry Case
USB Interface Cable
Versiv Open Source Software CD
(2) AC Chargers
(2) Universal Couplers
WiFi adapter
Statement of Calibration and Getting Started Guide
TIA Category 3, 4, 5, 5e, 6, 6A: 100 Ω ISO/IEC Class C, D, E, EA, F, and FA: 100 Ω and 120 Ω
Standard Link Interface Adapters
Permanent link adapters
Plug type: shielded RJ45
Optional Plug type: Tera
Channel Adapters
Jack type: shielded RJ45
Optional Jack type: Tera
Test Standards
TIA
Category 3, 4, 5, 5e, 6, 6A per TIA 568-C.2
ISO/IEC
Class C and D, E, Ea, F, FA certification per ISO/IEC 11801:2002 and amendments
Maximum frequency
1200 MHz
General Specifications
Speed of Autotest
Full 2-way Autotest of Category 5e or 6/Class D or E: 9 seconds Full 2-way Autotest of Category 6A/Class EA: 10 seconds
Support test parameters (The selected test standard determines the test parameters and the frequency range of the tests)
Wire Map, Length, Propagation Delay, Delay Skew, DC Loop Resistance, Insertion Loss (Attenuation), Return Loss (RL), NEXT, Attenuation-tocrosstalk Ratio (ACR-N), ACR-F (ELFEXT), Power Sum ACR-F (ELFEXT), Power Sum NEXT, Power Sum ACR-N, Power Sum Alien Near End Xtalk (PS ANEXT), Power Sum Alien Attenuation Xtalk Ratio Far End (PS AACR-F)
Input protection
Protected against continuous telco voltages and 100 mA over-current. Occasional ISDN over-voltages will not cause damage
Display
5.7 in LCD display with a projected capacitance touchscreen
Case
High impact plastic with show absorbing overmold
Dimensions
Main Versiv unit with DSX-5000 module and battery installed: 2.625 in x 5.25 in x 11.0 in (6.67 cm x 13.33 cm x 27.94 cm)
Weight
Main Versiv unit with DSX-5000 module and battery installed: 3 lbs, 5oz (1.28 kg)
Main unit and remote
Lithium ion battery pack, 7.2 V
Typical battery life
8 hours
Charge time*
Tester off: 4 hours to charge from 10 % capacity to 90 % capacity
Languages supported
English, French, German, Spanish, Portuguese, Italian, Japanese and Simplified Chinese
