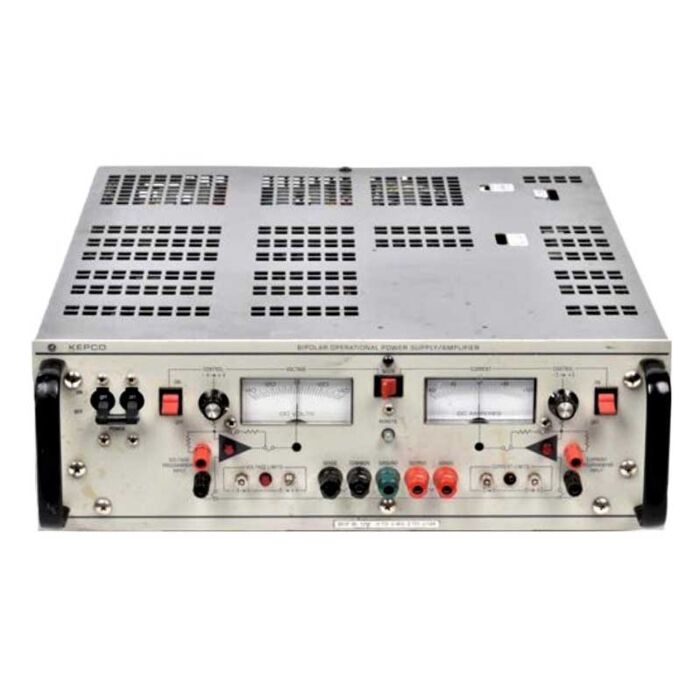

Kepco BOP36-12M for Rent, Bi-Polar Power Supply, 36V, 12A, 400W

Product Highlights

The Kepco BOP36-12M, while a fully rated power supply (36V, 12A), is also a high-powered operational amplifier with full 4-quadrant, bipolar operation. The output is capable of both sustained DC and the replication of arbitrary AC waveforms.

The voltage and current outputs can be controlled smoothly and linearly through the entire rated plus and minus ranges, passing smoothly through zero with no polarity switching.

The BOP36-12M is a high speed power operational amplifier that can be used to provide dynamically agile voltage for test and simulation. It is not a general purpose power supply. By the nature of the bipolar high speed design, it does not have any energy storage noise discriminating output capacitors. To realize the full high speed potential of the BOP36-12M, the load characteristics should be mainly resistive. If the load is capacitive, (>0.1 microfarad), the BOP36-12M must be slowed to avoid oscillation. This is accomplished in voltage mode by increasing the value of the feedback capacitance. Special terminals on the user port are available to slow the BOP for optimum current-mode stability into inductive loading.

Features of the Kepco BOP36-12M include:

• Source and sink 100% of their current rating.
• Separate control circuits for voltage and current with automatic crossover to current and voltage limits.
• All controls and flag signals accessible through a 50-terminal userport at the rear.
• Zeroable preamplifier available for scaling and summing external signals.
