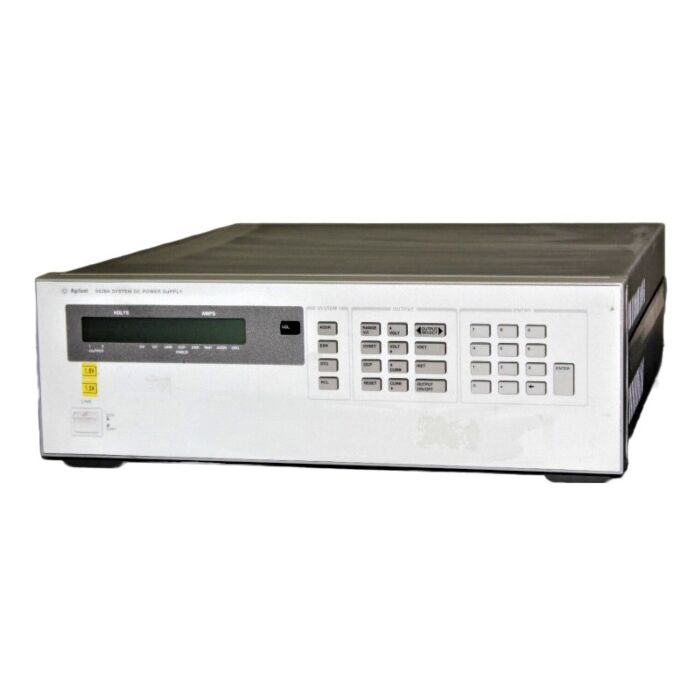

Keysight / Agilent 6628A for Rent, Dual Power Supply, 50W, 16V, 200mA or 50V, 1A or 16V, 2A

Product Highlights

The Keysight 6628A (Agilent) Power Supply is a high performance DC power supply which offers spec and accuracy for test optimization. The precision dual output, 50W GPIB 6628A provides fast, low-noise outputs; dual-range, precision low current measurement; built-in measurements and advanced programmable features; and protection features to ensure DUT safety.

The Agilent 50W, dual-output 6628A is a versatile solution to help improve system accuracy and reduce test time in a 3U high package.

Key features of the Keysight 6628A (Agilent) Power Supply include:

• Output Ratings (2 outputs)
  • Low-range volts, amps 50W: 0 to 16 V, 0 to 200 mA
  • High range volts, amps 50W: 0 to 50 V, 0 to 1 A or 0 to 16 V, 0 to 2 A
• Programming Accuracy at 25C +/-5C (2 outputs)
  • Voltage 50W: 0.016% + 3 mV (low), 10 mV (high)
  • Current 50W: 0.04% + 185uA (low), 500 uA (high)
• Ripple & Noise (20 Hz to 20 MHz) 2 outputs each
  • Voltage rms: 500 uV
  • Peak-to-peak: 3 mV
  • Current rms: 0.1 mA
