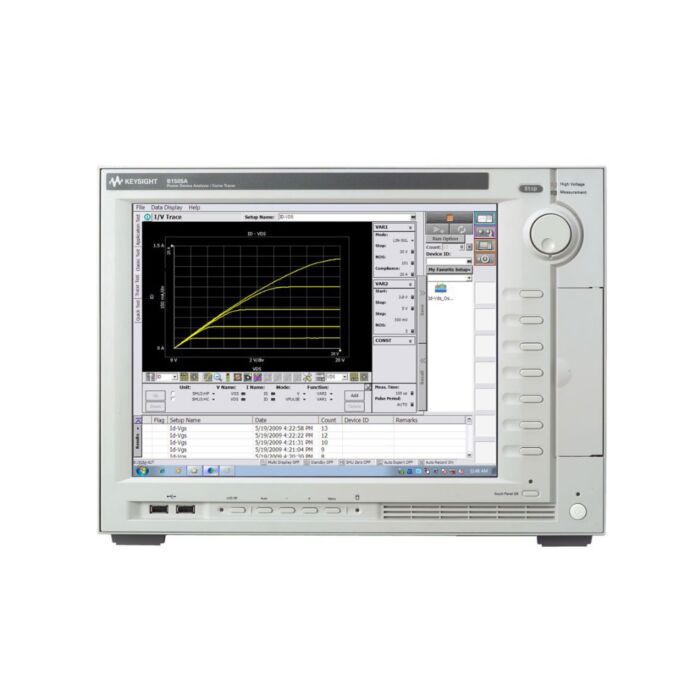

Keysight / Agilent B1505AP for Rent, Power Device Analyzer/Curve Tracer

Product Highlights

The Keysight B1505AP pre-configured Power Device Analyzer / Curve Tracer provides off-the-shelf solutions for various power device characterization requirements. Each option has all required B1505A hardware and software including mainframe, cables, test fixture etc. required to test discrete power devices. The B1505AP utilizes the same mainframe and modules as the B1505A Power Device Analyzer / Curve Tracer and may be expanded in exactly the same way.

The Keysight B1505A Power Device Analyzer / Curve Tracer is the only single box solution available with the capability to characterize high power devices from the sub-picoamp level to 10 kV & 1500 A. Select your B1505AP application solution based upon maximum voltage, maximum current and necessity for capacitance measurement from eight different preconfigured packages. The B1505AP's test fixture can accept a wide variety of devices, such as power MOSFETs, diodes, IGBTs etc. regardless of their size or shape. This is achieved via a large test fixture adapter with customizable test fixture modules. In addition, the test fixture's built-in interlock mechanism ensures that high voltages and currents can be safely applied to the test devices.

Specifications for the KEYSIGHT / AGILENT B1505AP Power Device Analyzer Include:
