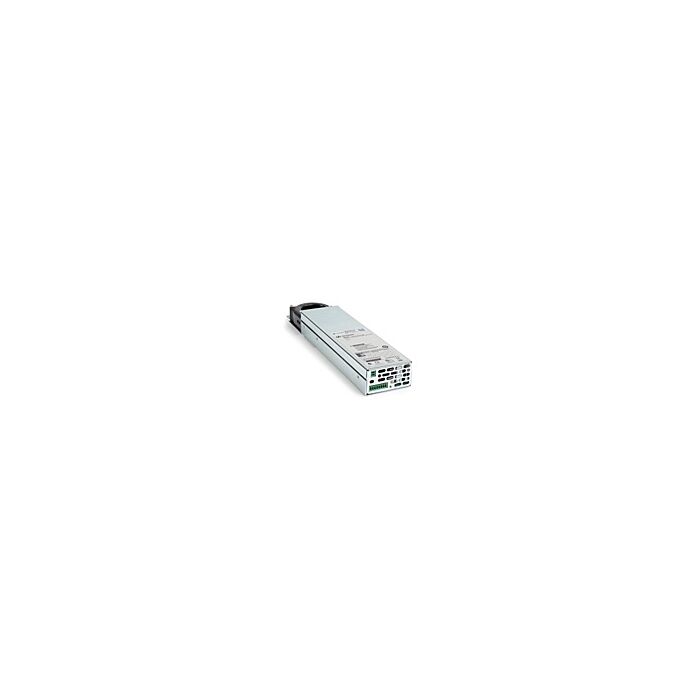

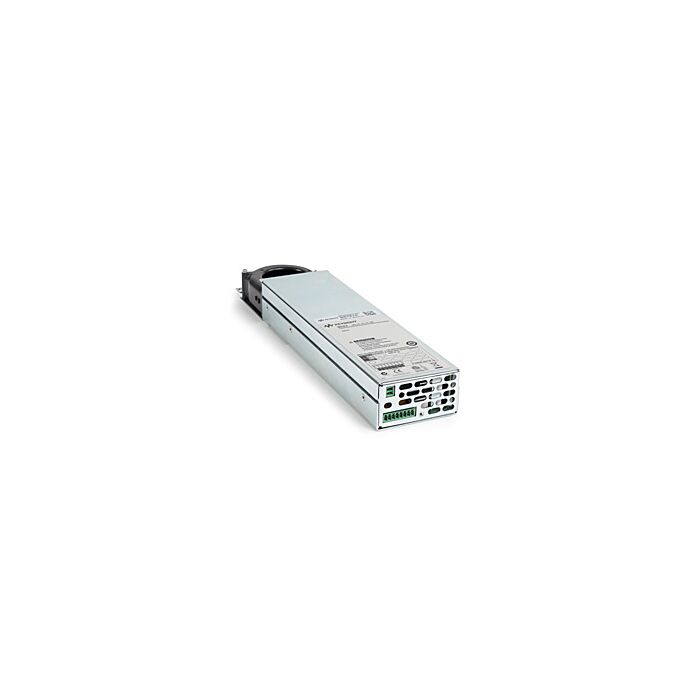

Keysight N6781A for Rent, Source/Measure Unit for Battery Drain Analysis

Product Highlights

• Output Ratings:
• Voltage: Up to 20 V
• Current: Up to +/-3 A
• Power: 20 W
• Programming Accuracy (at 23C +/- 5C after 30 minute warm-up. Applies from min. to max. program):
• Voltage, 20 V range: 0.025% + 1.8 mV
• Voltage, 6 V range: 0.025% + 600 uV
• Current, 3 A and 1 A ranges: 0.04% + 300 uA
• Current, 300 mA range: 0.03% + 150 uA
• Transient Response:
• < 30 mV of droop in response to 0.15A / us current transients
• Measurement Accuracy (at 23C +/- 5C):
• Voltage, 20 V range: 0.025% + 1.2 mV*
• Current, 3 A range: 0.03% + 250 uA
• Current, 100 mA range: 0.025% + 10 uA
• Current, 10 uA range: 0.025% + 8 nA
