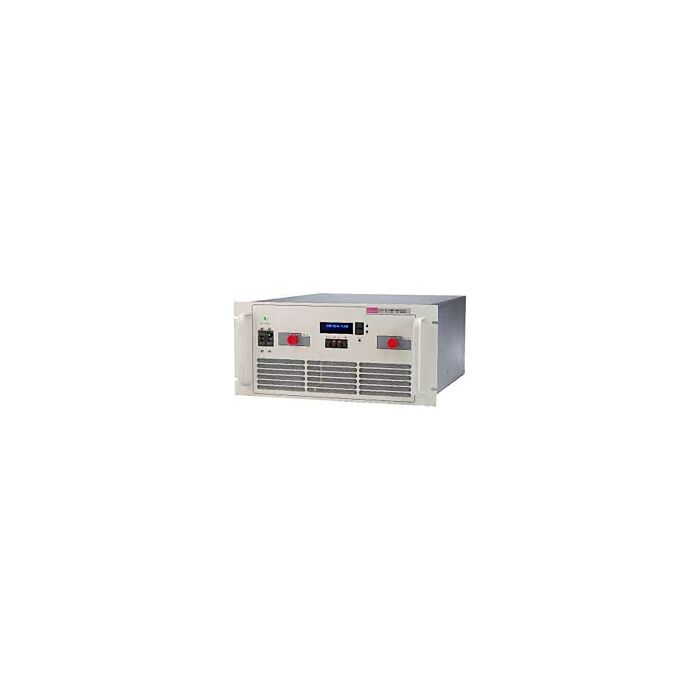

Ophir 5060 for Rent, Amplifier 0.8 - 4.2 GHz, 25W

Product Highlights

The Ophir 5060 Amplifer is a 25W RF / Microwave Amplifier with a frequency range of 0.8 to 4.2 GHz. It was designed primarly for use in the mobile communication industry.

• Mode of Operation: Class A Linear
• Frequency Range: 0.8 - 4.2 GHz
• Output Power @ Saturation: 25 Watt CW Typical
• Output Power @ 1 dB Compression: 20 Watt CW minimum
• Small Signal Gain: 45 dB minimum
• Harmonics: -20 dBc @ 20 Watts
• Input Power: 0 dBm
• RF Input: +10 dBm maximum
• Small Signal Gain Flatness: +/- 2 dB maximum
• Small Signal Gain Variation: 1.5 dB maximum
• Input/Output Impedance: 50 ohm nominal
• Input VSWR: 2:1 minimum
• Operating Temperature Range: 0C to 50C
• Operating Humidity Range: 95%, 0C to 40C
• Temp. Protection: Shut down @ 80C minimum
• Cooling system: Forced Air
• AC Power: 100 - 240 VAC, 50/60 Hz nominal
• AC Power consumption: 220 Watt maximum
• Dimensions: 19.0" W x 5.25" H x 20" D
• Weight: 50 Pounds maximum
