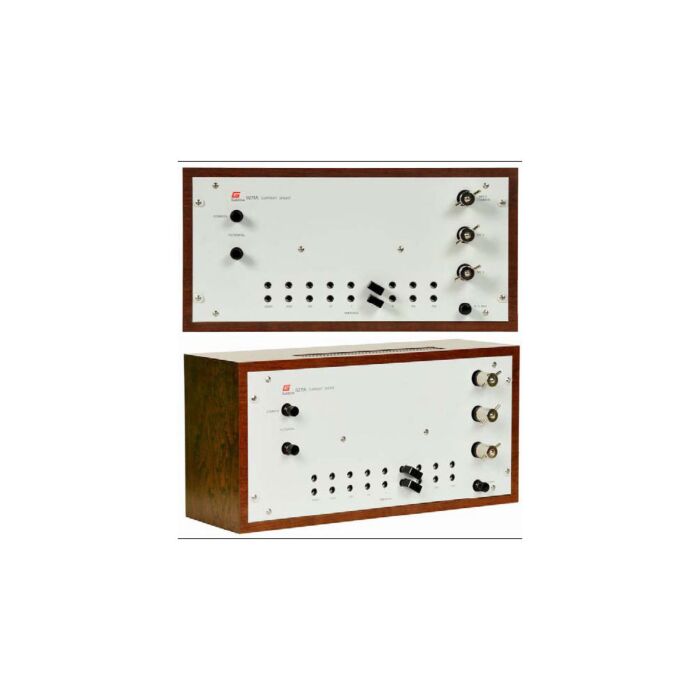

Guildline 9211A for Rent, Multi-Range DC Current Shunt

Multi-Range DC Current Shunt

Order #: 9211A-RENT2

Mfg #: 9211A

For Rent

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Call for price

Product Overview

Product Highlights

The Guildline 9211A Multi-Range DC Current Shunt is a self-contained 9 range, 4 terminal shunt for precision current measurement up to 300 amperes.

Each 9211A shunt resistor provides a 100 mV drop at nominal rated current. A potentiometer or digital voltmeter is required as a readout for wide range precise current measurements.

All connections and adjustments are accessible on the front panel. Separate current and potential terminals are provided. Range selection is made by means of two brass plugs inserted in pairs of ports on the panel.

Features

High Stability Multi-Range DC Current Shunt
Basic Accuracy 0.01%
DC Current Ranges From 10 uAmps to 300 Amps Full Scale
Temperature Coefficient Less Than 10 ppm/degree C

Specifications

Resistance (Ohms)	Rated Current (Amperes)	1 Year Accuracy 1, 2	Temperature Coefficient (ppm/ degree C)	Power Dissipation at Rated Current (mW)
10,000	0.00001	± 0.01%	5	0.001
1,000	0.0001	± 0.01%	5	0.01
100	0.001	± 0.01%	5	0.1
10	0.01	± 0.01%	5	1
1	0.1	± 0.01%	5	10
0.1	1	± 0.01%	10	100
0.01	10	± 0.01%	10	1000
0.001	100	± 0.05%	30	10 W
0.00033333	300	± 0.1%	30	30 W
