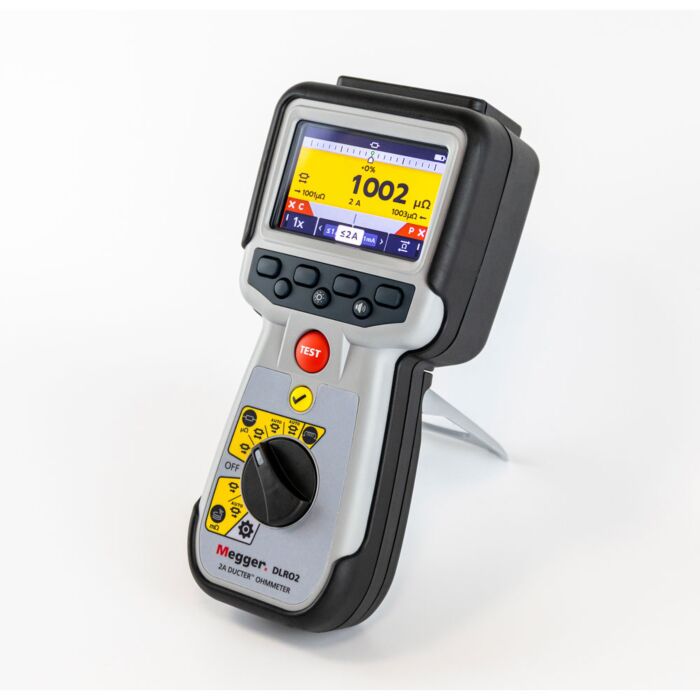

Megger DLRO2 for Rent, Ducter Low Resistance Ohmeter, 2 Amp

Product Highlights

2 Amp hand-held low resistance ohmmeter

• 'Difference Meter' for quick data comparisons
• Use very long test leads at 1 A using dedicated test mode
• Safely test the resistance of inductive loads at 1 A
• <600 V active protection against inadvertent live connections without blowing a fuse
• Ideal for outdoor use with protection against dust and moisture to IP54
• Industry standard safety rated at CAT III 600 V/CAT IV 300

DESCRIPTION

The DLRO2 series are tough, hand-held 2 A low resistance ohmmeters. They are designed to provide fast, accurate, repeatable measurements, even in electrically noisy locations. The DLRO2 is the latest in a long line of instruments to proudly display the Ducter™ brand, the Ducter™ testers being as wellknown and relied upon as Megger insulation resistance testers.

For the utility or industrial user, a high level of safety is provided with a CAT III 600 V/CAT IV 300 V rating to IEC61010. In addition, the instrument can protect itself from inadvertent connections to up to 600 V without blowing a fuse, thereby avoiding essential time lost due to repairs or finding a replacement fuse.

When working outside, the IP54 rating ensures that neither rain nor dust will prevent testing.

The DLRO2 measures low resistance values across a wide range of applications, from railways and aircraft, to the resistance of industry components.

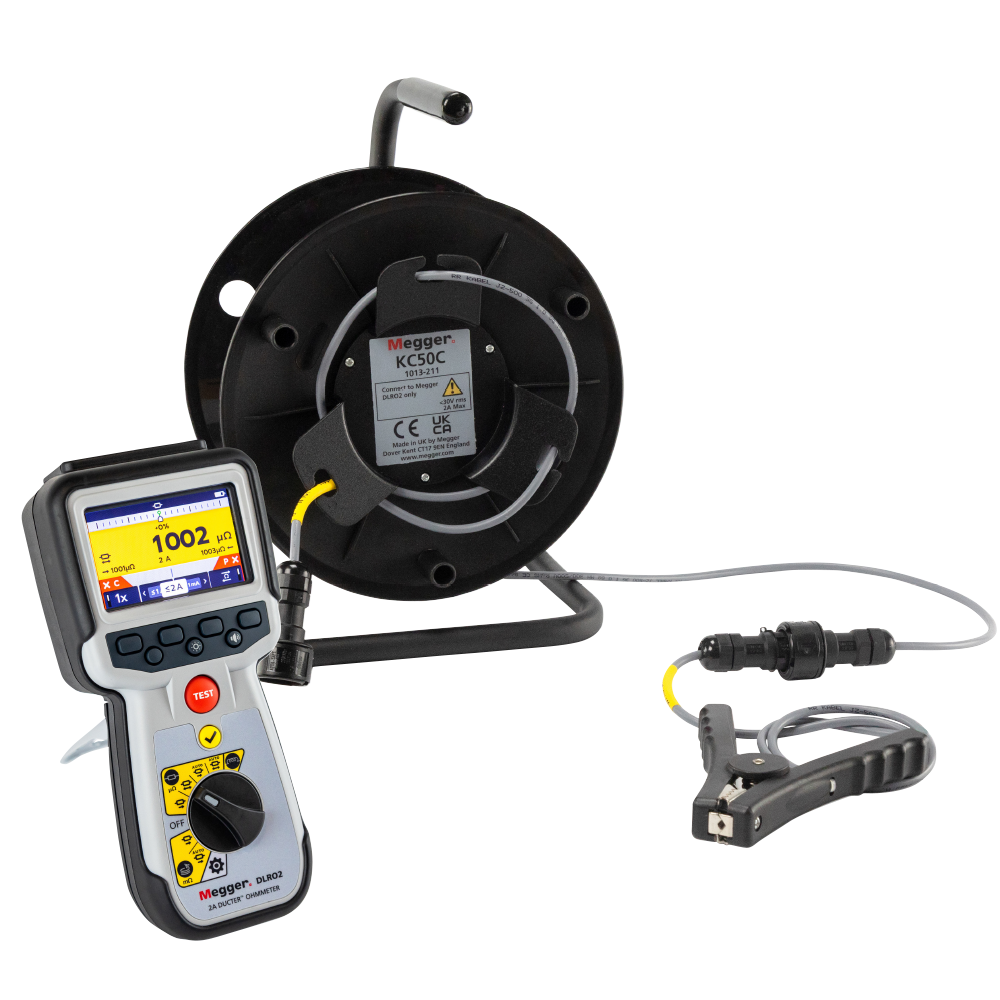

Applications requiring long test leads are not a problem for the DLRO2 as it has a dedicated long lead test to optimize the output. The long test lead function is able to provide up to 1 A of test current into 3.2 ohms resistance. This makes the DLRO2, with its optional cable reel test leads, ideal for testing wind turbine and avionic lightning protection applications.

To allow testing of smaller inductive loads, the DLRO2 can apply 1 A for at least 15 seconds, made possible by the high-capacity built-in rechargeable batteries, together with a separate inductive load function. The batteries can be fully recharged in 2.5 hours, minimising downtime.

FEATURES

Difference Meter

The DLRO2 is also equipped with a new innovative feature called a Difference Meter. This allows repetitive measurements to be easily compared with an initial reference measurement.

The Difference Meter translates percentage difference to a needle/pointer movement to make it visually easy to see change.

New reference measurements can be set at the push of a button.

DLRO2 keeps you testing and produces reliable measurements

To ensure the DLRO2 is always ready to test, the supplied fitted as standard HR6 rechargeable NiMH batteries that can easily be swapped for non-rechargeable standard AA alkaline batteries to keep you testing. Hand-held is not a compromize in quality of measurement. The DLRO2 provides 1% accuracy with a focus on repeatability making it ideal for repeated quality tests in production environments.
