Order #: ZNB4-R-RENT2
Mfg #: ZNB4-R

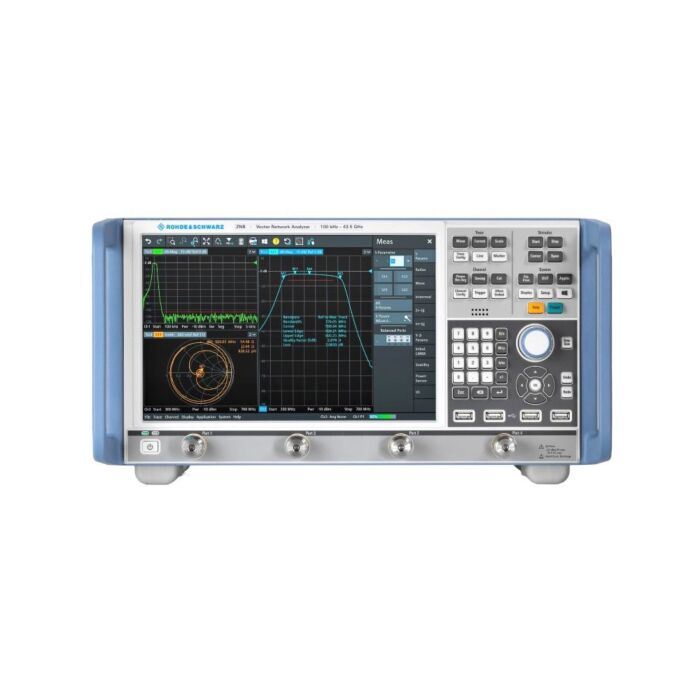

Rohde & Schwarz ZNB4-R for Rent, Vector Network analyzer, 4.5 GHZ, 4 Port
Order #: ZNB4-R-RENT2
Mfg #: ZNB4-R
Request a Rental Quote
Have a Question? Speak to a Transcat Rental Expert: 800.264.4059
![Loading...](https://www.transcat.com/static/version1724161005/frontend/Transcat/default/en_US/images/loader-1.gif)
Product Highlights
The Rohde & Schwarz ZNB4 Vector Network Analyzer features a wide dynamic range of up to 140 dB (at 10 Hz IF bandwidth), low trace noise of less than 0.004 dB RMS (at 10 kHz IF bandwidth) and high output power of up to +13 dBm, which can be adjusted electronically in a range of more than 95 dB.The ZNB4 designed for demanding applications in the production and development of RF components, particularly in the mobile radio and electronic goods industries.
The R&S ZNB4 covers a frequency range from 9 kHz to 4.5 GHz. The R&S ZNB4 has a large touch screen that allows users to access all instrument functions with no more than three operating steps. The screen offers plenty of space for results, displaying even extensive measurements in a clear and straightforward manner.
The R&S ZNB4 provides development labs and production lines with performance characteristics previously found only in the very top-of-the-line analyzers. It is available in both two-port and four-port models. Its wide dynamic range of 140 dB, low trace noise of 0.004 dB (RMS) and high output power of up to +13 dBm, which can be adjusted electronically in a range of 90 dB, provide fast and accurate measurements. This ensures high throughput in production.
The R&S ZNB4 VNA combines high measurement accuracy with exceptional speed – better than 5 µs per point. They feature excellent temperature and long-term stability, which ensures reliable measurements over several days without having to recalibrate the units. The short-depth, compact two-port and four-port versions leave plenty of space on the workbench for the measurement application. It features low operating noise thanks to low power consumption and a sophisticated cooling concept. The low power consumption also reduces operating costs and protects the environment.
It is suitable for measurements on high-blocking filters or amplifiers that must be manually adjusted on high-volume production lines where speed and efficiency are critical. The large touch screen is especially useful in this application. The network analyzer can also be used to characterize duplex filters, multiport DUTs, mixers or differential SAW filters for transmitters or mobile terminals.
Features
- Frequency range from 9 kHz up to 4.5 GHz
- Wide dynamic range of up to 140 dB
- Short sweep times, e.g. 4 ms for 401 points
- High temperature stability of typ. 0.01 dB/ degree C
- Wide power sweep range of 98 dB
- Wide range of IF bandwidths from 1 Hz to 10 MHz
- Manual and automatic calibration
- Large, high-resolution 12.1" screen
- Touchscreen user interface
- Two or four ports
- Four-port model with two independent generators
- Expansion to up to 48 ports using switch matrices
-
