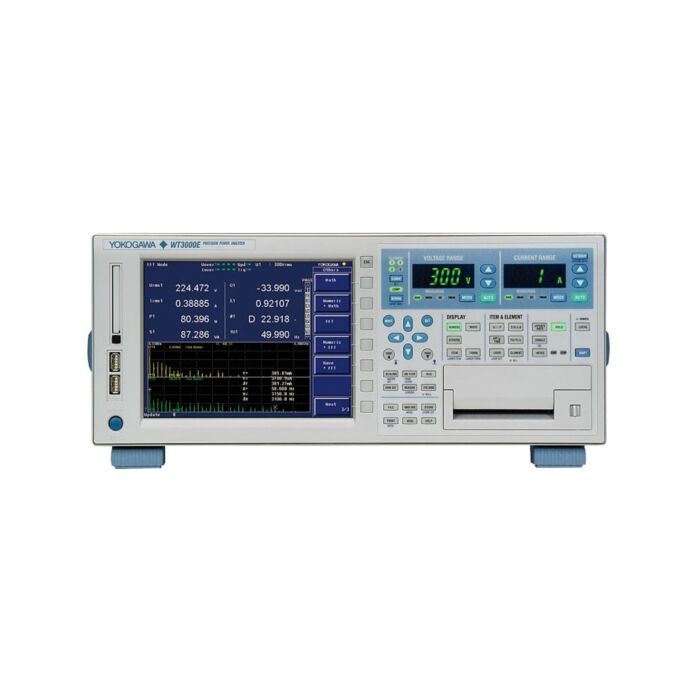

Yokogawa WT3000E for Rent, Precision Power Analyzer
Precision Power Analyzer
Order #: WT3000E-RENT3
Mfg #: WT3000E
Call for price
Call for price
Yokogawa WT3000E for Rent, Precision Power Analyzer
Precision Power Analyzer
Order #: WT3000E-RENT3
Mfg #: WT3000E
Call for price
Request a Rental Quote
Have a Question? Speak to a Transcat Rental Expert: 800.264.4059
Call for price
Availability: Call for Availability
![Loading...](https://www.transcat.com/static/version1721668873/frontend/Transcat/default/en_US/images/loader-1.gif)
Product Highlights
Yokogawa's power measurement technology provides best-in-class precision and stability. With basic power accuracy of +/-0.02% reading, DC and 0.1 Hz-1 MHz measurement bandwidths, and up to four input elements, the Yokogawa WT3000E Precision Power Analyzer provides higher-accuracy measurement of I/O efficiency.
Features and Specification of the Yokogawa WT3000E Power Analyzer include:
- Basic accuracy: 0.01% of reading
- Basic power accuracy: 0.02% of reading
- Both 2A and 30A current input elements can be installed in the same unit (up to four elements max)
- Good readability: The large, 8.4-inch LCD and the range indicator LEDs
- Simultaneous measurement with 2 units (8 power input elements)
- Store function: 50 ms data storing interval
- Interface: GP-IB, Ethernet, RS-232 and USB
- Advanced computation function: Waveform computation, FFT analysis, waveform sampling data daving
- IEC61000-3-2 and IEC61000-3-12: Harmonic measurement (optional)
- IEC61000-3-3 and IEC61000-3-11: Voltage fluctuation / flicker measurement (optional)
Features and specifications of the Yokogawa WT3000E Power Analyzer include:
- Basic power accuracy: +/-(0.01% of reading + 0.03% of range)
- Frequency range: DC, 0.1 Hz to 1 MHz
Low Power Factor Error:
- Power factor error when cos ∅=0:
- 0.03% of S where S is reading value of apparent power
- ∅ is phase angle between voltage and current
- Direct Input:
- 0.5/1/2/5/10/20/30 ([A) or 5/10/20/50/100/200/500 (mA), 1/2 (A) *
- 2A and 30A input elements can be installed together in a unit.
External Input:
- 50m/100m/200m/500m/1/2/5/10 (V)
Voltage Range and current range are for crest factor 3
- 1000 (Vrms) Continuous maximum common mode voltage (50/60 Hz)
- Data Update rate: 50 ms to 20 sec
- Effective input range: 1% to 130%
- Simultaneous measurement with 2 Units
