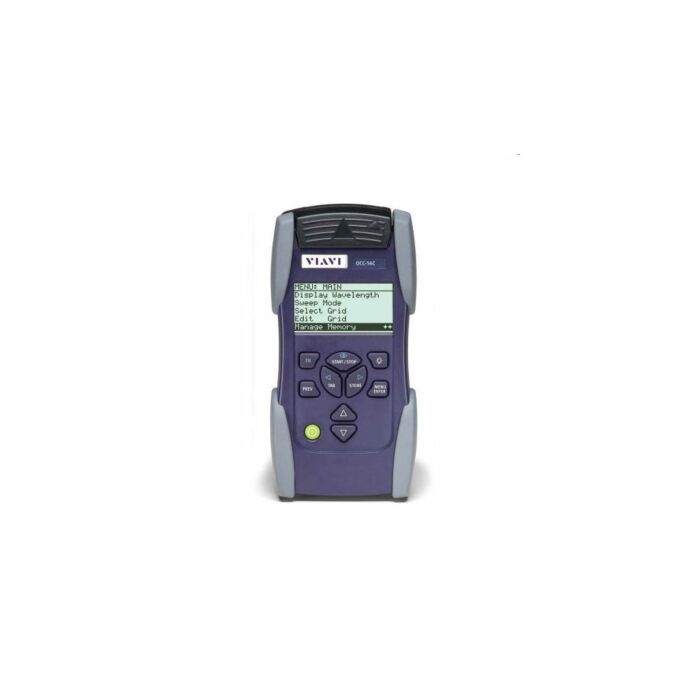

Viavi/JDSU OCC-56C for Rent, Smart DWDM Optical Channel Checker
Order #: OCC-56C-RENT2
Mfg #: OCC-56C
Product Highlights
The VIAVI SmartClassTM optical handhelds go beyond the basics.The SmartClass OCC-56C is a handheld, battery-operated dense wavelength division multiplexing (DWDM) channel checker that is ideal for field service groups tasked with the installation, maintenance, and upgrades of DWDM systems.
The SmartClass OCC-56C scans the DWDM system and automatically records all channels with the wavelength/ frequency and the related power level. Information can be displayed in a graphical spectrum format or in a table of results so that users can easily check the performance of each and every channel.
The SmartClass OCC-56C DWDM channel checker covers all ITU-T frequencies from 191.600 to 196.100 THz based on a 100 GHz grid.
Features
- Industry's smallest and lightest DWDM channel checker
- Supports C-band applications
- Outstanding battery life ensures highest flexibility
- Graphical/tabular display mode
- Supports 100 or 200 GHz channel spacing (according to ITU-T)
- Save results via internal memory or external USB memory stick
- Report generation software OFS-355
| Wavelength range | 1528.77 to 1564.68 nm; 196.10 to 191.60 THz |
| Wavelength accuracy | typ. ± 50 pm |
| Channel spacing | 100/200 GHz |
| Channel power range | <-70 to +10 dBm |
| Absolute accuracy1, 2 | <±1 dB |
| Readout resolution | ±0.01dB |
| Filter bandwidth @3 dB | min. 0.34 nm |
| Measurement time | ~ 10 s (full span, 46 ch) typ. |
| Optical interface | Interchangeable APC |
| Max. composite power | +22 dBm all channels; +10 dBm one channel |
| Return loss | >35 dB |
| Graphical display trace | Bar graph, 50 GHz/pixel |
| Table ch-no, wavelength, power | |
| Functions | Zoom, marker |
| Sweep mode | Single, continuous |
| Remote control via USB interface |
