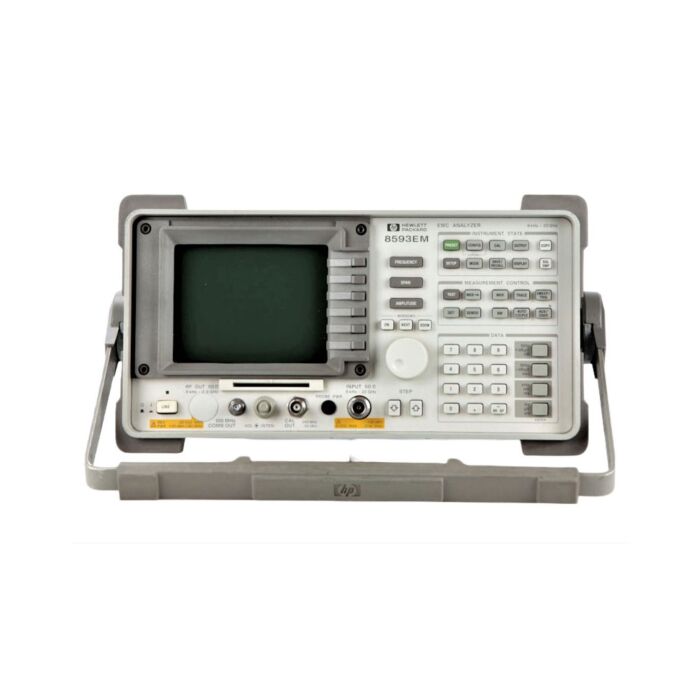

Keysight / Agilent 8593EM for Rent, EMC Analyzer, 9 kHz - 22 GHz
Order #: 8593EM-RENT3
Mfg #: 8593EM
Request a Rental Quote
Have a Question? Speak to a Transcat Rental Expert: 800.264.4059
Product Highlights
The Agilent HP 8593EM is a stand-alone, automated EMC precompliance analyzer that reduces the time it takes to find, measure and document radiated and conducted EMI emissions. It belongs to the Agilent HP 8590EM series of EMC analyzers, which do not require an external computer and automation software to perform automated EMC measurements. With an upper frequency of 22 GHz, the Agilent HP 8593EM can perform precompliance tests on products with clock frequencies up to 4.4 GHz.The Agilent HP 8593EM has two modes of operation: EMI analysis and spectrum analysis. With the press of a key, this analyzer converts from EMC analyzer to full-function spectrum analyzer for use in a wide variety of non-EMC applications. Based on the highly versatile Agilent 8590 E-series spectrum analyzers, the 8593EM EMC analyzer simplifies the EMC measurement process with fully integrated automation features.
Features
- Setup keys link predefined CISPR bands with correct video and CISPR resolution bandwidths
- Built-in amplitude correction automatically corrects for antenna, amplifier, and cable losses
- Limit-line displays simultaneously compare device signals with up to two regulatory limits and a specified measurement margin
- Predefined routines automatically measure all signals over a specified frequency range
- Measure, store, and report up to 239 signals automatically
-
