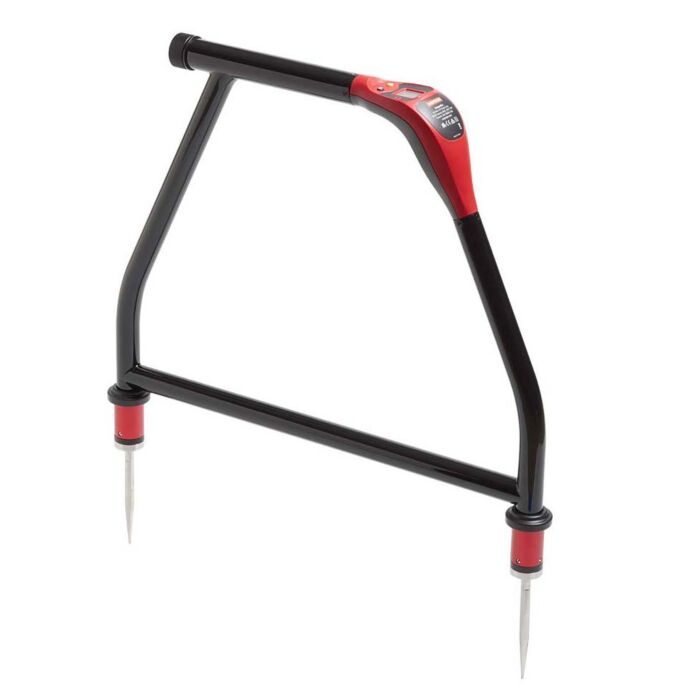

Amprobe AF-600 for Rent, A-Frame Fault Locator for the UAT-620

Product Highlights

The AF-600 A-Frame is designed to be used with the UAT-600 Series Underground Utilities Locator Kits

Ground faults are a common problem with electrical cables. Find any fault with the AF-600 A-Frame cable ground fault finder, specifically designed for use with the Amprobe UAT-600 Series.

Set up the UAT-600-T Transmitter to apply a fault find signal to the utility under test, the AF-600 A-Frame receives the signal and locates the place of the fault. The AF-600 will pinpoint where a cable metal conductor (either a sheath or a metallic conductor of the wire) touches the ground and can also detect other conductors to ground faults such as pipeline coating defects.

• Identify any point of leakage around a cable
• Locate cable and wire ground faults, sheath faults or pipeline coating defects, where the utility is in direct contact with the ground
• Find the exact point where metal is touching the ground and power is leaking, ie, a shield is rusted or a rubber buffer is broken, creating noise on a cable
• Advanced technology and digital signal processing makes pinpointing process fast, accurate and clear:
  • Compass guidance with numeric fault field strength indicates the direction of the fault
  • Distance sensitive left and right arrows guides the user to precisely follow the path of the buried utility
  • Automatic gain control quickly detects tracing signal and precisely adjusts the A-Frame sensitivity
  • Adjustable volume controls

Each Unit Includes

• Batteries
• Carrying Case
