Order #: 19073-RENT2
Mfg #: 19073

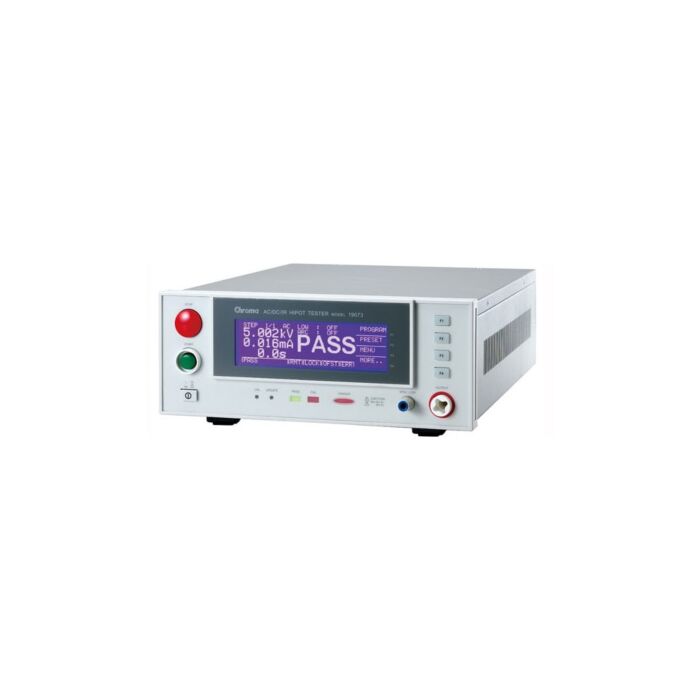

Chroma 19073 for Rent, AC/DC/IR Hipot Tester, 5kVAC, 6kVDC
Order #: 19073-RENT2
Mfg #: 19073
Request a Rental Quote
Have a Question? Speak to a Transcat Rental Expert: 800.264.4059
Product Highlights
The 19050 series electrical safety testers are advanced digital hipot testers with load and line regulation to ensure measurement integrity. Multi-step capability allows users to perform multiple tests in sequence, such as AC hipot followed by IR.
The Chroma Hipot Tester 19050 series provides 3 models to choose from. The 19052 includes AC/ DC/IR Hipot testing and insulation resistance (IR) measurements. The 19053 provides 8 scan channels for IR measurement, and the 19054 provides 4 scan channels for IR measurement in a single compact unit.
The Chroma Hipot Tester 19070 series provides 2 models to choose from. The 19071 is for AC Hipot testing. The 19073 combines both AC and DC Hipot with insulation resistance (IR) measurements into a single compact unit.
Features
- Nist Calibration included
- 19073 Hipot Tester (AC/DC/IR) - Sentry 30 Plus
- AC/DC/IR 3 in 1 hipot tester
- AC 5kV and DC 6kV output
- 1kV insulation resistance test
- Insulation resistance measurement from 1M to 50G
- Ground continuity check
- Open Short Check(OSC) function
- GFI shutdown the instrument when imbalance current > 0.5mA
- Flashover (ARC) detection
Test Type | Hipot AC, DC, IR |
---|---|
Max AC Test Voltage | 5 kV |
Max DC Test Voltage | 6 kV |
Min AC Test Voltage | 0.05 V |
Min DC Test Voltage | 0.05 V |
Max Trip Current AC Test | 20 mA |
Min Trip Current AC Test | 0.1 mA |
Max Trip Current DC Test | 5 mA |
Min Trip Current DC Test | 0.01 mA |
Programmable (hipot) | Yes |
Ground Continuity Current AC | 0.5 mA (0.0005 A) |
Insulation Resistance Test | Yes |
IR Test Voltage | 1,000 V |
Connection Type | Probe |
Arc Detection | Yes |
Maximum Insulation Resistance | 50 G Ohms (50000 M Ohms) |
-
