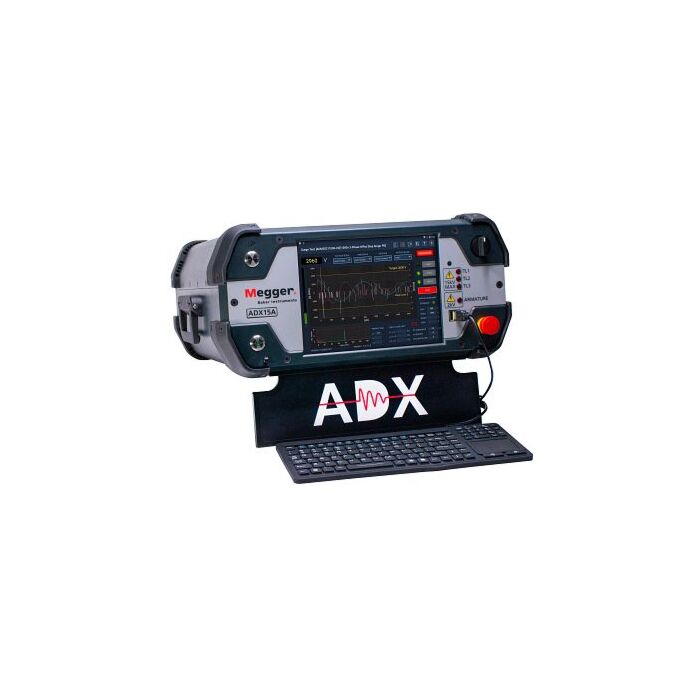

Megger ADX-15-RLC-PD for Rent, Automated Diagnostic Static Motor Tester with RLC & PD, 15kV

Product Highlights

The ADX family includes models designed to perform tests up to 15 kV.

The five main options include 4 kV, 6 kV, 12 kV, 15 kV, and 15 kV-A (Armature). These analyzers can be coupled with PPX to increase test voltages to 30 kV or 40 kV for tests on high voltage motors, coils, and generators.

The Megger Baker ADX is used for motor winding, coil, assembled motor, and generator testing. It will be used by Original Equipment Manufacturers, Industrial Maintenance Engineers, Motor Repair Shops, and Service Engineers working on equipment in the field for verification, validation, fault finding, and research; or to serve as part of a maintenance program.

KEY FEATURES

• Detachable IEC61010-compliant HV / LV Kelvin test leads
• PowerDB Dashboard secure cloud-based analysis software
• 10.4-inch daylight viewable touch screen
• Industrial IP68 Waterproof Silicone Keyboard
• Choice of Manual, Automatic, or Sequence testing
• Screen-level context sensitive help
• Adaptable search capability
• Asset management tools
• Configurable Route based testing
• Pulse-to-Pulse and Line-to-Line Error Area Ratio analysis
• Import existing databases from AWA and DX
• Android operating system
• 2 x USB ports and ethernet connection
• HDMI port for duplicating screens
• Wi-Fi and Bluetooth enabled
• Foldable viewing stand

BENEFITS

• Asset-centric approach provides opportunities for turnkey testing.
• Sequence mode leverages the approach for fully-automatic testing.
• Data analysis features identify service needs and reduce down time
• Remote asset configuration via PowerDB Dashboard frees the ADX for testing needs.
• Separating Asset from Installation opens opportunities for data analysis

TESTS PERFORMED

• Winding Resistance
• Inductance
• Capacitance
• Insulation Resistance
• Dielectric Absorption (DA)
• Polarization Index (PI)
• DC HiPot
• DC Step-Voltage
• DC Continuous Ramped
• Surge analysis with EAR+™
• Partial Discharge on Surge
