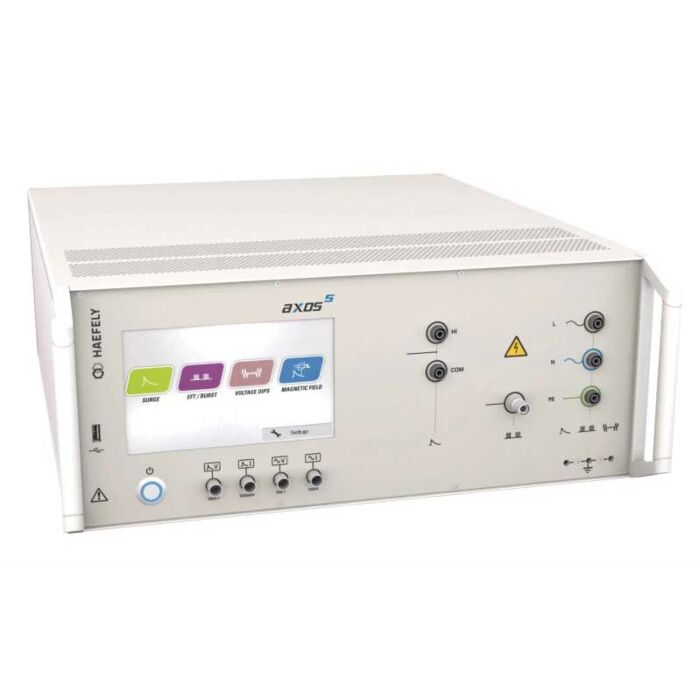

The Haefely AXOS⁵ Compact Immunity Test System incorporates the best features from the stand alone test systems into a single unit providing speedy and thorough automated testing to the most common standards. The Haefely AXOS⁵ can be operated by the front panel via color graphic interface or operated remotely from the PC. The user-friendly menu and the convenience of predefined test routines for the different standards make testing easy and reliable. Various additional functions help to integrate test systems with customer-specific test environments. The Haefely AXOS⁵ Compact Immunity Test System is the perfect solution for compliance and pre-compliance testing as well for monitoring & debugging during design phase.

The AXOS⁵ compact immunity test system integrates all of the best pieces of the Haefely stand alone test systems into one single economic solution. It combines 5 kV Burst/EFT Surge combination wave< AC/DC Dips & Interrupts, along with an integrated single-phase coupling / decoupling network (CDN) into one compact system.

The Haefely AXOS⁵ can either be operated via front panel by large colour graphic interface or remotely from the PC. The easy to use menu together with the availability of predefined test routines for different standards makes testing easy and reliable, even for less frequently users.

Standards:

EC/EN 61000-4-4 EFT / Burst
IEC/EN 61000-4-5 Surge
IEC/EN 61000-4-9 Imp Magnetic Field
IEC/EN 61000-4-11 AC Dip and Interrupt
IEC/EN 61000-4-29 DC Dip and Interrupt
IEC/EN 61000-6-1 Generic Residential
IEC/EN 61000-6-2 Generic Industrial
IEC/EN 60335-1 Household
IEC/EN 60601-1 Medical

Features and Specifications of the Haefely AXOS⁵ Compact Immunity Test System include:

• Easy to Operate:
  • Manual and automated test modes
  • Software assisted test preparation
  • Pre-defined test routines and visual-aided test setups
• Touch-screen:
  • 7" / 800 x 480 / 24 bit
  • Guarantees reduction of time and effort
• Safe and reliable operation by using safety interlock, warning lamp and emergency stop functions
• Voltage and current monitoring of surge impulses and EUT power provide valuable feedback
• Automatic generation of  test report, including test parameters, test setup and test result
• Reduction of daily working effort provided by easy access menu structure
• Intuitive menu prompting
• Ethernet and USB connectivity
• Applications:
  • Compliance & pre-compliance testing of electrical products
  • CE marking
  • Product development and debugging
  • Compliance testing of telecom and wireless devices
• Specifications:
  • Control Power:  85 V - 264 V, 50/60 Hz
  • User Test Storage:  Unlimited
  • Remoter Interface:  Ethernet, RJ45
  • USB:  For USB memory stick
  • Display:  7" / 800 x 480 / 24 bit with touch-screen
  • Auxiliary Interface:  D-sub 37p for external CDN, external transformer etc.
  • External Trigger Input:  5 V TTL
  • Synch Input:  BNC, 10 V - 264 V AC
  • Trigger Output:  5 V TTL
  • External Start / Stop Input:  5 V TTL, starts / stops predefined test sequence
  • EUT Failed Input:  5 V TTL
  • Analog Output:  0 - 10 V, for use with external options
  • Warning Lamp Output:  2 x 24 V / 1 A DC
  • Safety Circuit:  Stops the test when unlocked
