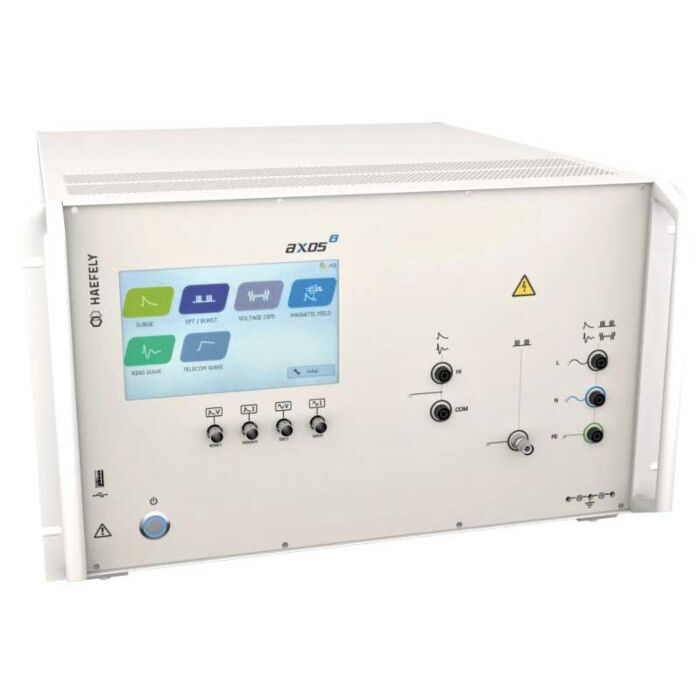

Haefely AXOS8 for Rent, Compact Immunity Test System

Product Highlights

The Haefely AXOS⁸ Compact Immunity Test System incorporates the best features from the stand alone test systems into a single unit providing speedy and thorough automated testing to the most common standards. The Haefely AXOS⁸ can be operated by the front panel via color graphic interface or operated remotely from the PC. The user-friendly menu and the convenience of predefined test routines for different standards make testing easy and reliable. Various additional functions help to integrate test systems with customer-specific test environments. Numerous additional functions such as external start/stop function allows easy integration of the test system also in customer specific test environments. The Haefely AXOS⁸ Compact Immunity Test System is the perfect solution for compliance and pre-compliance testing as well for monitoring & debugging during design phase.

A wide range of cost-efficient and user friendly coupling / decoupling networks for power lines as well as for symmetrical and asymmetrical data- and signal lines are available as options.

The AXOS8 compact immunity test system integrates all of the best pieces of the Haefely stand alone test systems into one single economic solution. It can be individually combined either with 7 kV Surge Combination Wave, 7 kV Ring Wave, 7 kV Telecom Waveast;, 5 kV EFT/Burst or Dips & Interrupts, along with an integrated singlephase coupling / decoupling network. This allows quick and completely automated testing to the most common IEC, EN, ANSI, ITU, IEEE and UL standards.

Standards:

• IEC/EN 61000-4-4 EFT / Burst
• IEC/EN 61000-4-5 Surge Edition 2 & 3 (1.2/50us...8/20us)
• IEC/EN 61000-4-5 Surge (10/700us)*
• IEC/EN 61000-4-9 Imp Magnetic Field**
• IEC/EN 61000-4-11 AC Dips and Interrupts ***
• IEC/EN 61000-4-12 Ring Wave
• IEC/EN 61000-4-29 DC Dip and Interrupt
• IEC/EN 61000-6-1 Generic Residential
• IEC/EN 61000-6-2 Generic Industrial
• IEC/EN 60335-1 Household
• IEC/EN 60601-1 Medical
• IEC/EN 60950
• EN 55024
• IEEE C62.41
• ITU K.20, K.21, K.44, K.45

* in combination with external Telecom Wave Modul "TW8"

** additional antenna coil "MSURGE-A" required

*** external voltage dips transformer "DIP 116" required
