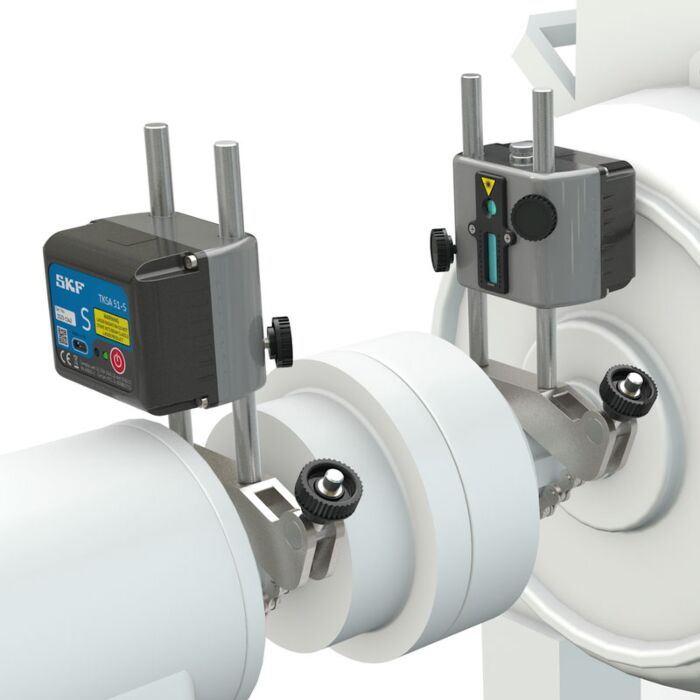

SKF USA INC TKSA41 for Rent, Laser Shaft Alignment Tool

Product Highlights

The SKF TKSA41 is an advanced laser alignment solution for achieving accurate shaft alignments. With two wireless measurement units, large sized detectors and powerful lasers, the instrument performs precise measurements in even the most challenging conditions. The ergonomic display unit with intuitive touch screen navigation makes your alignments fast and easy, whilst innovative features, like the "free measurement", increase the alignment performance. With the focus on improving alignment practices, the SKF Shaft Alignment Tool, TKSA41, is one of the industry's best value alignment solutions.

Features of the SKF TKSA41 Laser Shaft Alignment System include:

• Wireless communication improves instrument handling and allows alignments of difficult to reach applications from a safe position.
• Free measurement allows alignment measurements to start at any angle and finish with an angular sweep of just 90°.
• Automatic measurement enables hands-free measurements by detecting the head position and taking a measurement when the heads are rotated into the right position.
• Automatic reports are generated after each alignment. The reports can be customized with notes and pictures from the built-in camera for the most comprehensive overview. All reports can be exported as pdf files.
• Live view supports intuitive measurements and facilitates horizontal and vertical alignments.
• Machine library gives an overview of all machines and alignment reports. QR codes can be used to further simplify machine identification and improve the alignment workflow.

Specifications of the TKSA41 include:

• Sensors and communication: 1.1 in. CCD with line laser; electronic inclinometer ±0,5°; Bluetooth 4.0 LE or USB cables (included)
• System Measuring distance: 0.23 to 13.1 ft.
• Measuring errors / displayed resolution: <0.5% ±5 um / 10 um (0.4 mils)
• Display type: 5.6" colour resistive touchscreen LCD
• Software update: via USB stick
• Shaft diameters: 0.8 to 5.9 in. diameter with included chains (Up to 11.8 in. with optional extension chains)
• Max. recommended coupling height: 7.7 in. with included extension rods
• Mounting system: 2 _ V-brackets; 2 _ chains 15.8 in.; 2 _ threaded rods 5.9 in. per V-bracket; 4 _ extension rods 3.5 in.
• Alignment measurement: 3 position measurement 9-12-3, 3 position automatic measurement 9-12-3, 3 position free measurement (with min. 90° rotation)
• Alignment correction: Live values for vertical and horizontal machine position correction; Laser soft foot tool
• Alignment report: Automatic pdf report exportable via USB stick
• Display unit: battery up to 8 hours continuous use at 100% backlight (5 000 mAh rechargeable LiPo battery)
• Measuring unit: battery up to 12 hours continuous use (2 000 mAh rechargeable LiPo battery)
