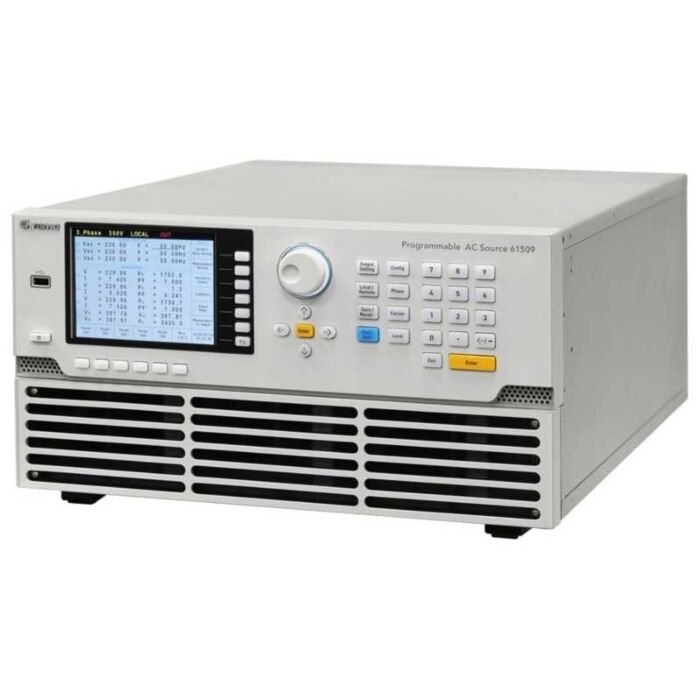

Chroma 61508 for Rent, AC Source, 0-350V, 15 to 2kHz, 4.5kVA, 1 or 3 Phase

Product Highlights

Using state of the art PWM technology, the Chroma 61508 AC power source can deliver the maximum output voltage of up to 350V and output frequency of 15Hz to 2000Hz. By applying the advanced DSP technology, the Chroma 61508 can easily simulate power line disturbance (PLD) by LIST, PULSE, and STEP modes. The friendly interface allows for quick user access to the functions through a large graphic LCD display front panel with an easy to use keypad. The GPIB, RS-232, USB, and Ethernet interfaces are available to control the AC source remotely.

The Chroma 61508 models are capable of simulating the voltage dip, short interruption and voltage variation test conditions for the IEC 61000-4-29 Electromagnetic compatibility (EMC)-Part 4-29. The WAVEFORM function allows users to set square, clipped-sine waves and 30 stored distortion waveforms. Besides that, IEC 61000-4-13 standards require not only the harmonics waveform, but also the inter-harmonics simulation. Chroma 61508 AC Power source allows users to compose up to 50 orders of harmonics based on 50Hz or 60Hz; the output will be a periodic harmonics distortion waveform. It also provides sweeping inter-harmonics functions. This means the fundamental frequency will be incorporated with a frequency sweeping component between harmonic frequencies.
