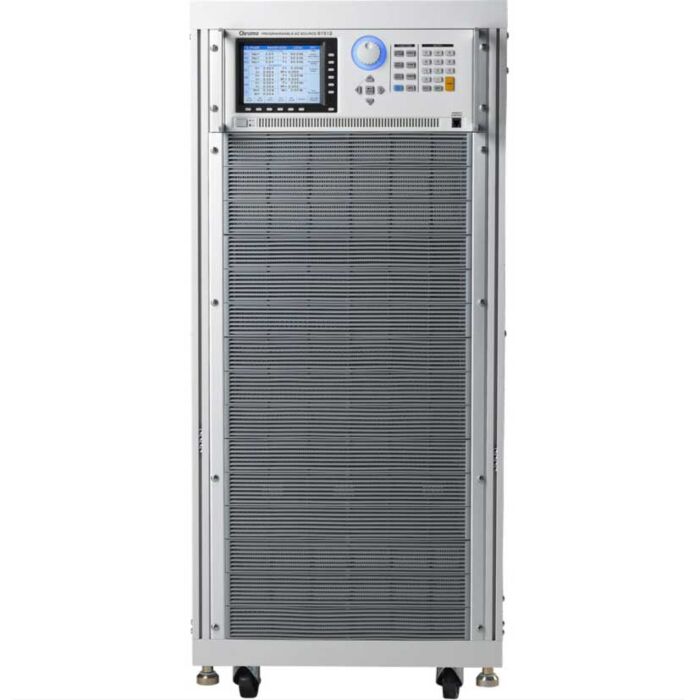

Chroma 61511 for Rent, Programmable AC Source 0-300V, 15-1.5 kHz, 12 KVA, 1 or 3 Phase

Product Highlights

The Chroma 61511 high performance AC power source that is capable of simulating a wide range of AC line conditions and measurement of critical characteristic for products under test. The units are able to provide precision measurements such as RMS voltage, RMS current, true power, power factor, current crest factor and more. The AC+DC modes extend the applications not only for providing pure AC voltage, but also DC component for DC offset testing in laboratory. The modularized power stage design offer outstanding performance and high reliability.

Chroma 61511 AC sources are capable of delivering single or three-phase output depending on the user's application. It can deliver the maximum output voltage up to 300Vac and output frequency from 15Hz to 1500Hz. Capable of delivering up to 4 times of peak current compared to its maximum rated current, the Chroma 61511 is ideal for inrush current test. The ability to program output impedance makes the 61511 AC power source suitable for IEC 61000-3-3 Flicker tests or other test conditions with a particular output impedance requirement. Using the advanced DSP technology, 61511 AC source can measure THD and up to 40 orders of current harmonics. It makes the 61511 not only a sophisticated power source but also a powerful analyzer.
