Order #: INFINITY-200-RENT3
Mfg #: INFINITY-200

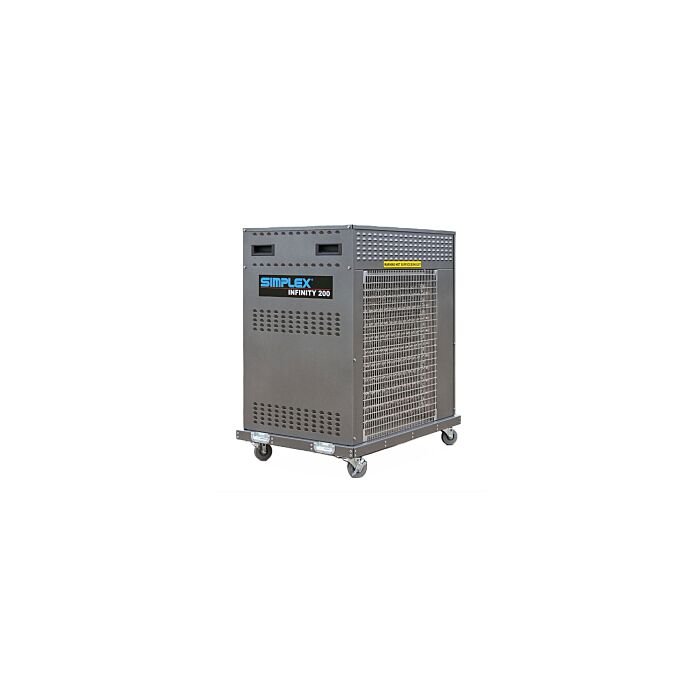

Simplex INFINITY-200 for Rent, Portable AC Load Bank, 200kW
Order #: INFINITY-200-RENT3
Mfg #: INFINITY-200
![Simplex INFINITY-200 for Rent, Portable AC Load Bank, 200kW](https://www.transcat.com/static/version1724161005/frontend/Transcat/default/en_US/Magento_Catalog/images/product/placeholder/brand_logo.jpg)
![Simplex INFINITY-200 for Rent, Portable AC Load Bank, 200kW](https://www.transcat.com/static/version1724161005/frontend/Transcat/default/en_US/Magento_Catalog/images/product/placeholder/brand_logo.jpg)
Request a Rental Quote
Have a Question? Speak to a Transcat Rental Expert: 800.264.4059
![Loading...](https://www.transcat.com/static/version1724161005/frontend/Transcat/default/en_US/images/loader-1.gif)
Product Highlights
The Simplex Infinity 200 is simply the most advanced factory-standard load bank available anywhere. Digitally controlled infinite loads-simply enter any value from zero to max, and the load bank goes there. Single-point control of the chain of load banks. Single-point data acquisition of the chain. 200kw at 240 and 480v, 3-phase; 150kw at 208 and 416v, 3-phase, 133kw at 240v, singlephase, all in the smallest and lightest package available.
The Infinity-200 is a digitally controlled load bank with network capability. All control is via a hand-held touchscreen controller connected to the load bank via a supplied RS-232 network cable. The load bank includes a digital power transducer with meter displays on the touchscreen. The Load Bank includes casters, lifting and moving handles. Power connections are plug-in to Cam-Type connectors. Control and cooling fan power is obtained from a common 115v, 15A outlet via the included connection cord.
Frequency | 50–60–400Hz |
Power | 200kW |
Voltage | Dual Voltage, nominal 240/480V AC, 3-phase |
-
