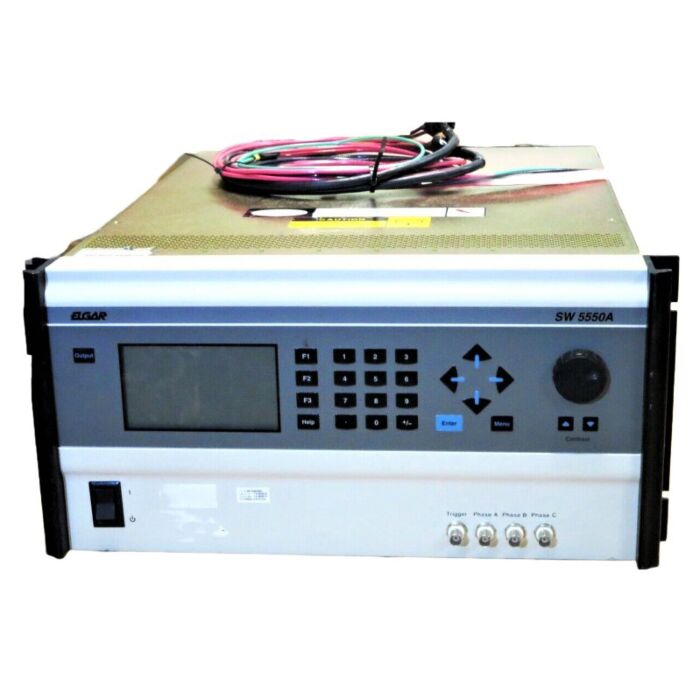

Elgar SW5550A for Rent, AC/DC Power Source, 5550VA

Product Highlights

The Elgar SmartWave SW5550A can create complex waveforms with high DC content for simulating real world power irregularities, including phase controlled sub-cycle or multi-cycle dropouts, spikes, sags, surges, frequency excursions, plus frequency and voltage ramps (sweeps). Three separate arbitrary waveform generators enable it to create independent, complex waveforms on all three phases simultaneously.  Output voltages are created by adding amplitude, frequency and other parameters to the waveshapes. The user can also create over 50 custom front panel setups with all parameters included and store them for quick recall, making the SmartWave ideal for manual testing.

    A wide frequency range of DC or 40 Hz to 5 kHz is available for a broad array of applications. The Elgar SW5550A is designed for testing today's complex electronics, including avionics, telecommunications and commercial electronics. A direct coupled, transformerless design allows AC and DC on separate phases or on the same phase.  To simulate these complex real-world power occurrences, the SW5550A AC power source comes with a library of 50 built-in waveshapes and users can create and store an additional 50 waveshapes of their own design. The Elgar SW5550A AC source is designed to meet waveform requirements including DC content (up to 312V), low distortion (THD 0.25% to 100 Hz), low noise and ripple, plus full compliance testing to many EMC and avionics standards.

Specifications of the Elgar SW5550A AC Power Source includes:
