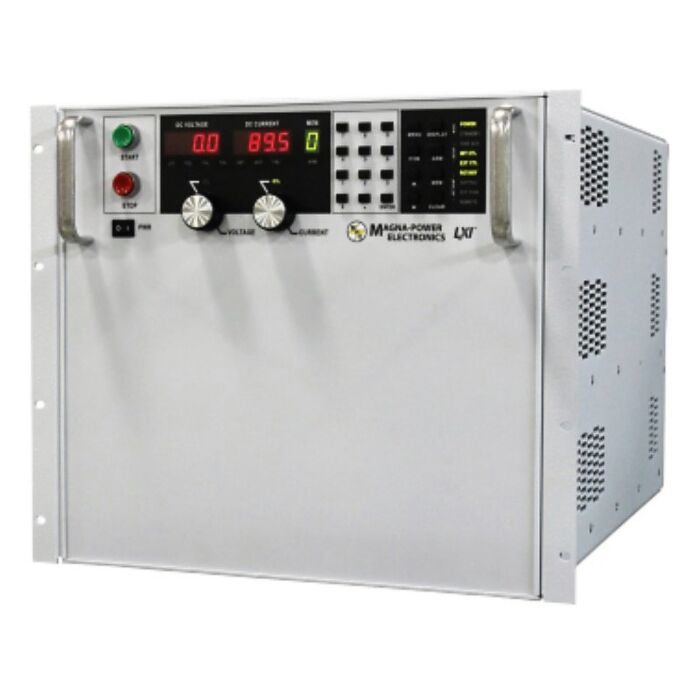

MAGNA-POWER TSD600-72 for Rent, DC Power Supply, 600V, 72A, 45kW

Product Highlights

The Magna-Power Electronics TSD600-72 combines the best of DC power processing with microprocessor embedded control. Magna-Power Electronics' innovative power processing technology improves response, shrinks package size, and reduces cost. The Magna-Power TS Series power supplies are current-fed and are more tolerant to abusive loads than conventional switching power supplies. This technology allows the power supply to operate under short-circuit conditions, open-circuit conditions, and everything in between.

TS Series power supplies offer both master/slave parallel and series operation. This enables two or more power supplies to be placed in parallel for increased output current or in series for increased output voltage. With master/slave operation, power supplies operate at near equal voltage and current.

TS Series power supplies can operate as a voltage source or current source depending on the control settings and load conditions. If the power supply is operating as a voltage source and the load increases to a point beyond the current command setting, the power supply automatically crosses over to current mode control and operates as a current source at that setting.

Specifications of the Magna-Power TSD600-72 High Voltage Power Supply include:

Input:

• AC Input Nominal Voltage:
  • 480 Vac, 3Φ (operating range 432 - 528 Vac)
• Frequency: 50 Hz - 400 Hz (operating range 45 - 440 Hz)
• Power Factor: > 92% at maximum power

Output:

• 600V, 72A, 45kW
• Ripple: 250 mVrms
• Line Regulation:
  • Voltage Mode: +/- 0.004% of full scale
  • Current Mode: +/- 0.02% of full scale
• Load Regulation
  • Voltage Mode: +/- 0.01% of full scale
  • Current Mode: +/- 0.04% of full scale
• Load Transient Response: 2 ms to recover within +/-1% of full scale output, with a 50% to 100% or 100% to 50% step load change
• Efficiency: 88% at full load
• Stability: +/- 0.10% for 8 hrs. after 30 min. warmup
• Isolation:
  • User inputs and outputs: referenced to earth ground
  • Maximum input voltage to ground: +/-2500 Vac
  • Maximum output voltage to ground: +/-1000 Vdc
• Maximum Slew Rate: 100 ms for output voltage change from 0 to 63% 100 ms for output current change from 0 to 63%
  • With High Slew Rate Option (+HS): 4 ms for output voltage change from 0 to 63% 8 ms for output current change from 0 to 63%
• Bandwidth: 3 Hz for remote analog voltage programming 2 Hz for remote analog current programming
  • With High Slew Rate Option (+HS): 60 Hz for remote analog voltage programming 45 Hz for remote analog current programming
• Dimensions: 62.5 x 48 x 31.5 in (158.8 x 121.9 x 80.0 cm)
• Weight: 349 lbs (158.3 kg

Control:

• Voltage Programming Accuracy: ± 0.075% of full scale voltage
• OVT Programming Accuracy: ± 0.075% of full scale voltage
• Current Programming Accuracy: ± 0.075% of full scale current
• OCT Programming Accuracy: ± 0.075% of full scale current
• Voltage Readback Accuracy: ± 0.2% of full scale voltage
• Current Readback Accuracy: ± 0.2% of full scale current External
• Analog Programming and Monitoring Levels: 0 - 10 Vdc
• External Analog Output Impedances
  • Voltage output monitoring: 100 Ohm
  • Current output monitoring: 100 Ohm
  • +10 Vdc reference: 1 Ohm
• External Digital Programming and Monitoring Limits:
  • Input: 0 to 5 Vdc, 10k input impedance
  • Output: 0 to 5 Vdc, 5 mA drive capacity
• Remote Sense Limits: 3% maximum voltage drop from output to load
• Period Programming Limits: Minimum period: 10 ms Maximum period: 9997 sec
