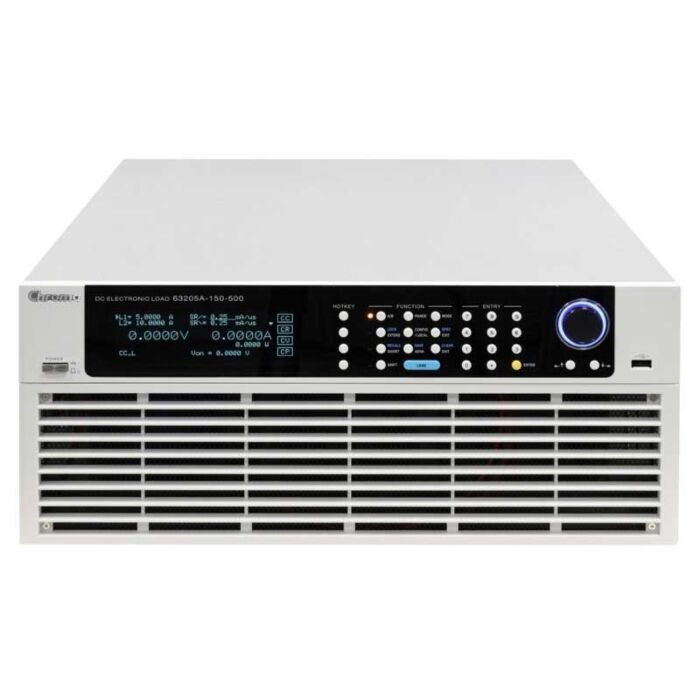

Chroma 63204A-1200-160 for Rent, High Power DC Electronic Load, 1200V, 160A, 4kW

Product Highlights

The Chroma 63200A series high power DC electronic loads are designed for testing a wide range of power conversion products including AC/DC and server power supplies, DC/DC converters, EV batteries, automotive charging stations, and other power electronics components. Its ultra high power density design eliminates oversized and difficult to move high power electronic loads and provides 4 sets of user defined hot keys that enable the user to enter operation modes quickly. The Chroma 63204A-1200-160 high power electronic loads with built in digital signal microprocessors (200MHz) provide optimal speed and control performance.

The Chroma 63204A-1200-160 provides three operating current ranges and a built-in highly precision A/D converter, achieving 0.015%+0.015%F.S., 0.04%+0.04%F.S. and 0.1%+0.1%F.S. accuracy for voltage, current and power measurement respectively. It operates in constant voltage, current, resistance, power and impedance modes to satisfy a wide range of test requirements and can precisely measure the voltage and current in real time. The unique Constant Impedance (CZ) mode built into the Chroma 63204A-1200-160 DC load can improve the loading behavior of CC & CP mode and make the simulated loading current more realistic.

The Chroma 63204A-1200-160 high power DC electronic loads also have overcurrent, overpower, and over temperature protections as well as over voltage and polarity reverse alarms to enhance product reliability. These DC loads are reliable products for engineering testing and automated test system's integration.
